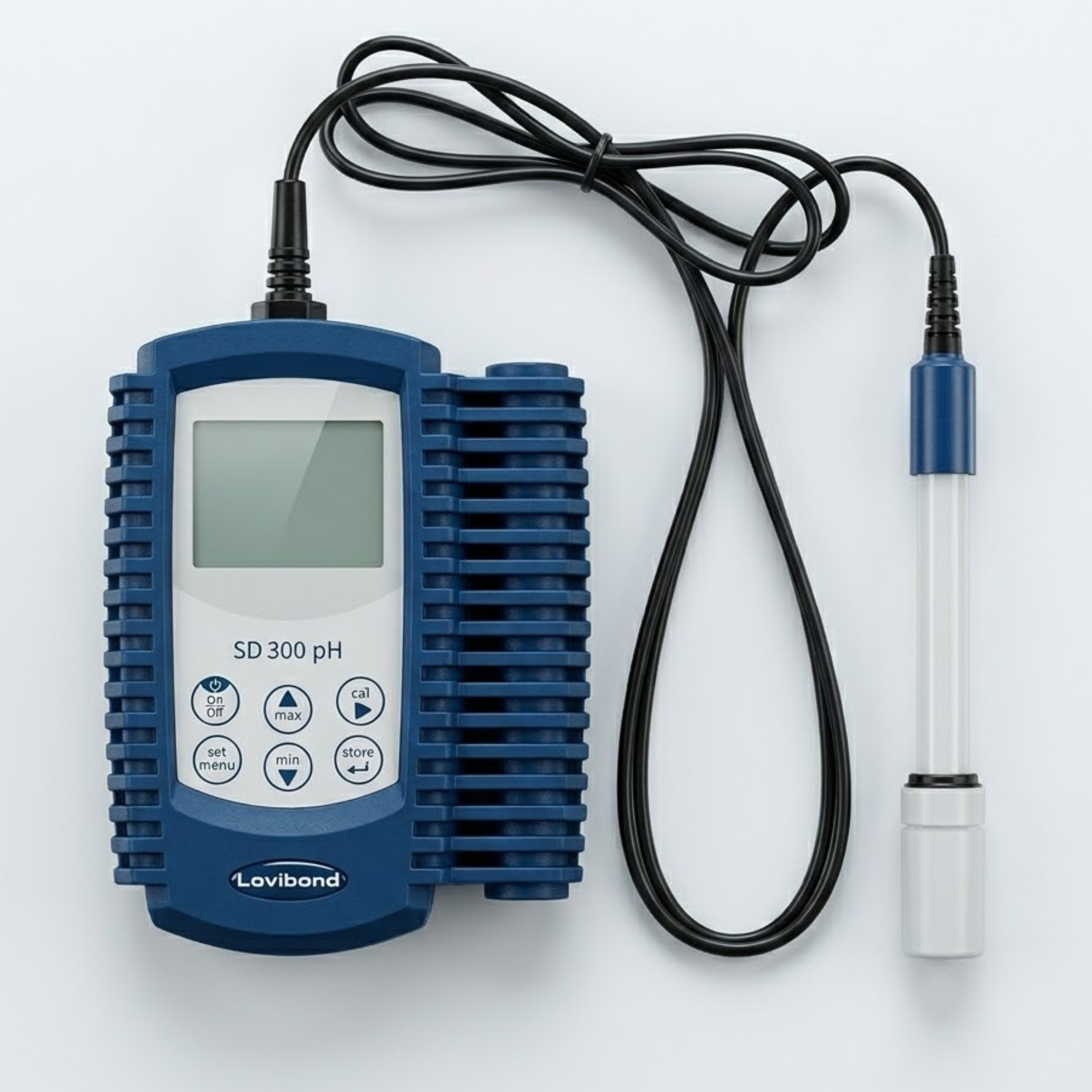

SD300 PH Meter With pH-electrode
SD 300 PH Meter With pH-electrode

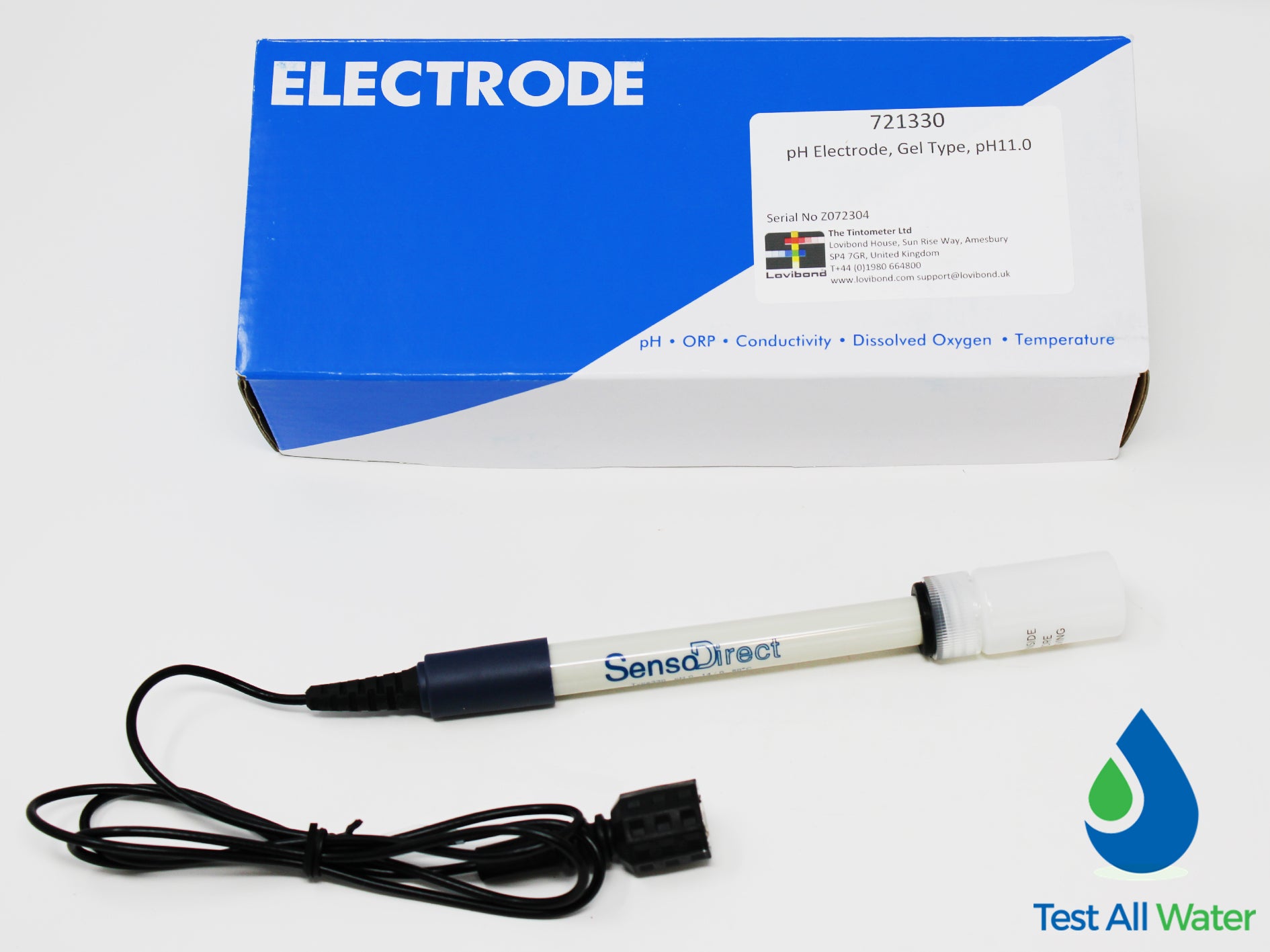

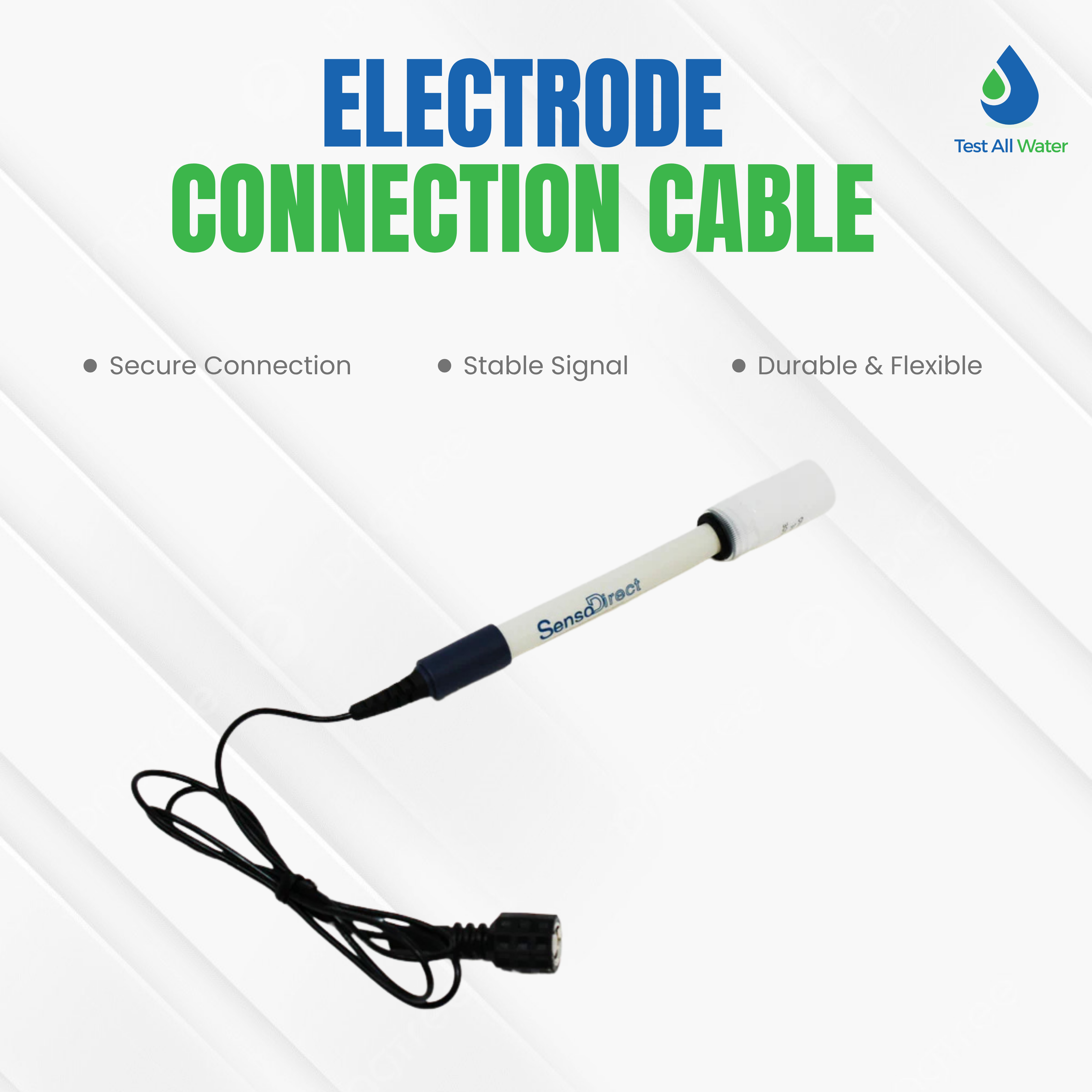

pH-electrode
pH 0 – 14, plastic/gel type, BNC-plug
Cost-effective and universally applicable pH electrode
Low maintenance due to gel electrolyte and optimized storage bottle

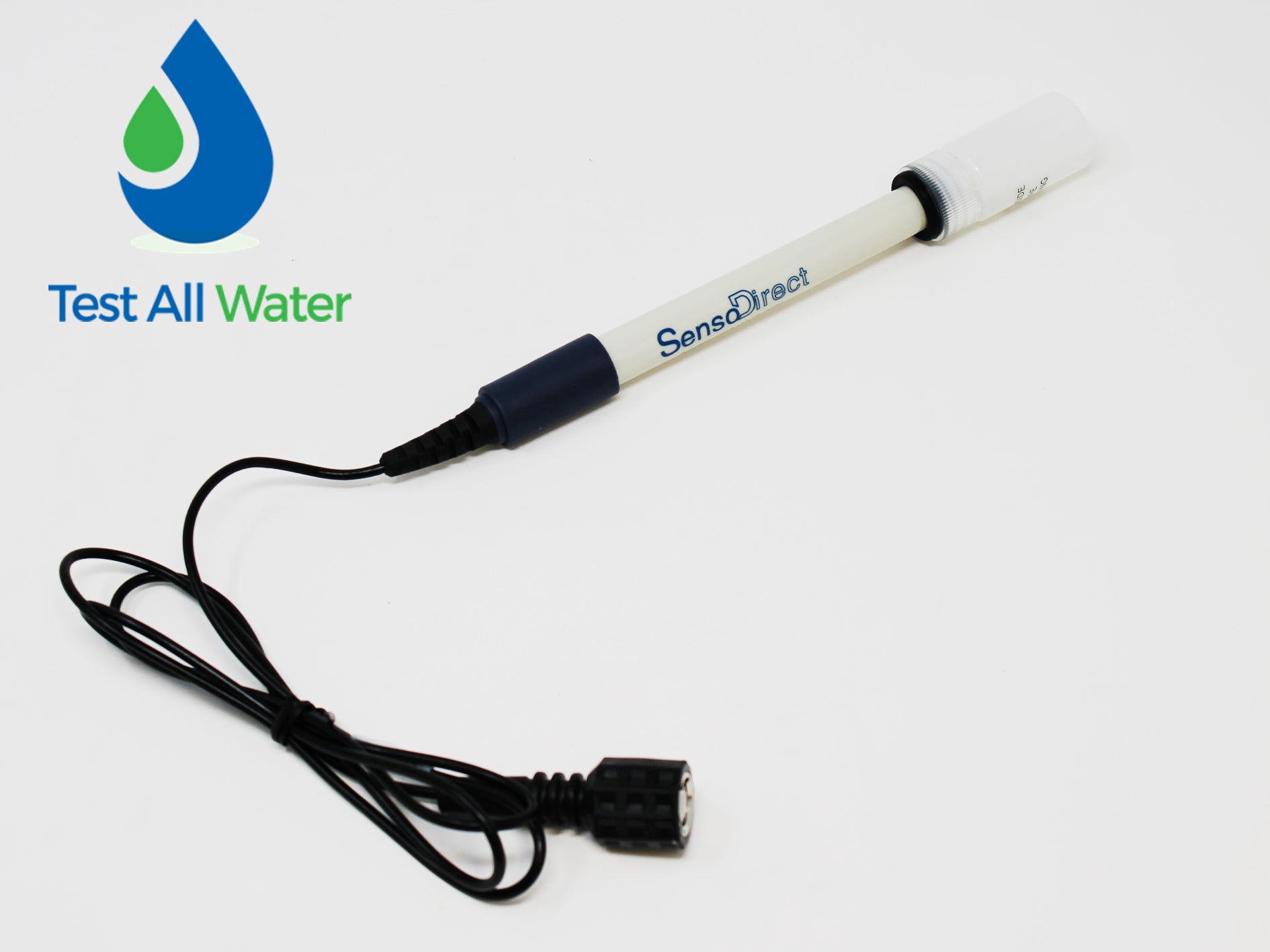

The SD pH electrode type 330 with gel electrolyte is cost-effective and suitable for universal applications. Filling of the internal electrolyte becomes unnecessary due to the use of a KCl gel electrolyte, which keeps maintenance requirements low. The storage bottle with rubber seal is ideal for keeping the glass membrane moist even during long storage periods, thus ensuring perfect sensor performance and service life.
The robust plastic housing made of PC provides the necessary mechanical stability and protects the spherical glass membrane from breakage. The BNC connector is suitable for all pH meters equipped with a BNC socket. Temperature compensation is achieved either by manual input into the meter or automatically by using a SD temperature sensor.
|

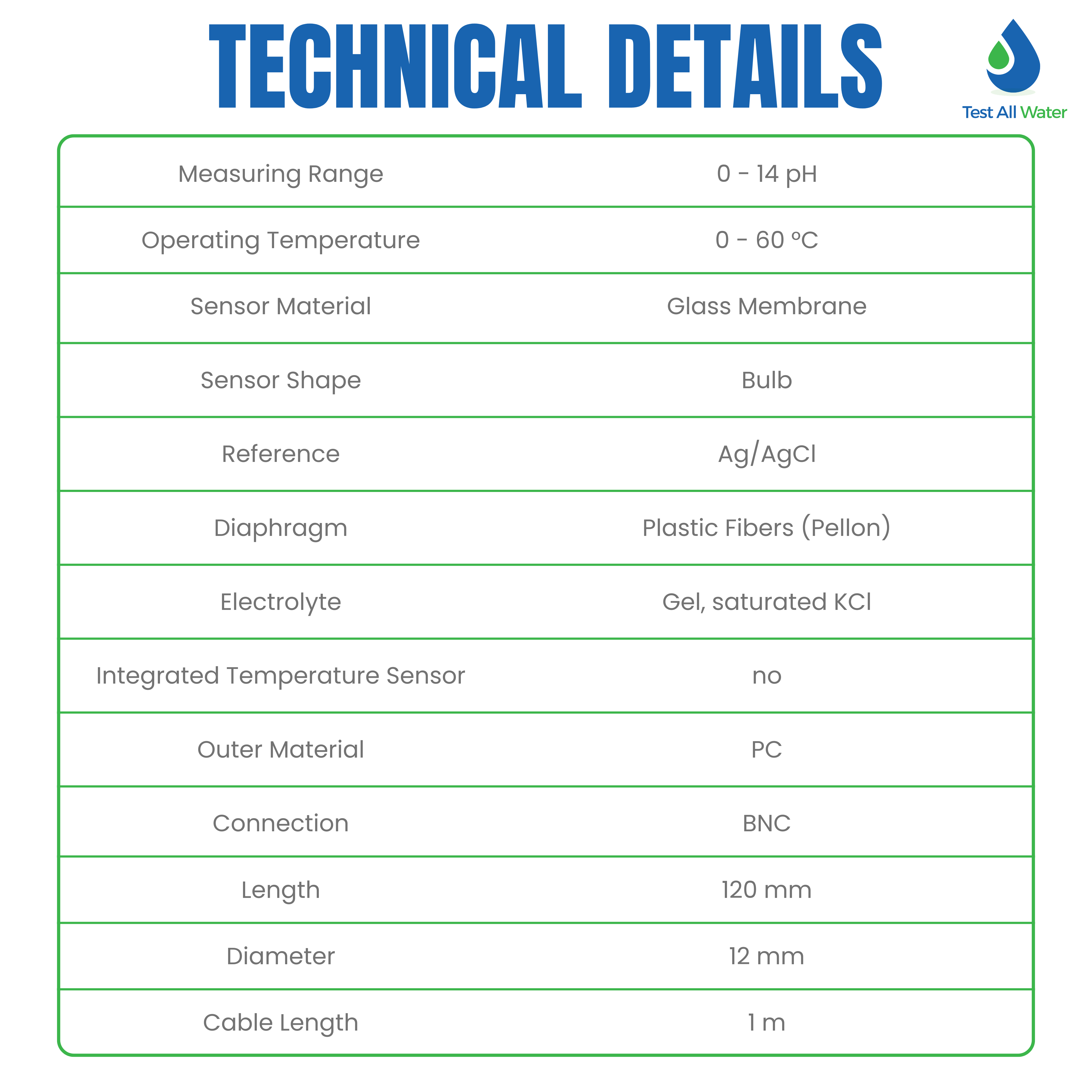

Measuring Range |
0 - 14 pH |
|
Operating Temperature |
0 - 60 °C |
|
Sensor Material |
Glass Membrane |
|
Sensor Shape |
Bulb |
|
Reference |
Ag/AgCl |
|
Diaphragm |
Plastic Fibers (Pellon) |
|
Electrolyte |
Gel, saturated KCl |
|
Integrated Temperature Sensor |
no |
|
Outer Material |
PC |
|

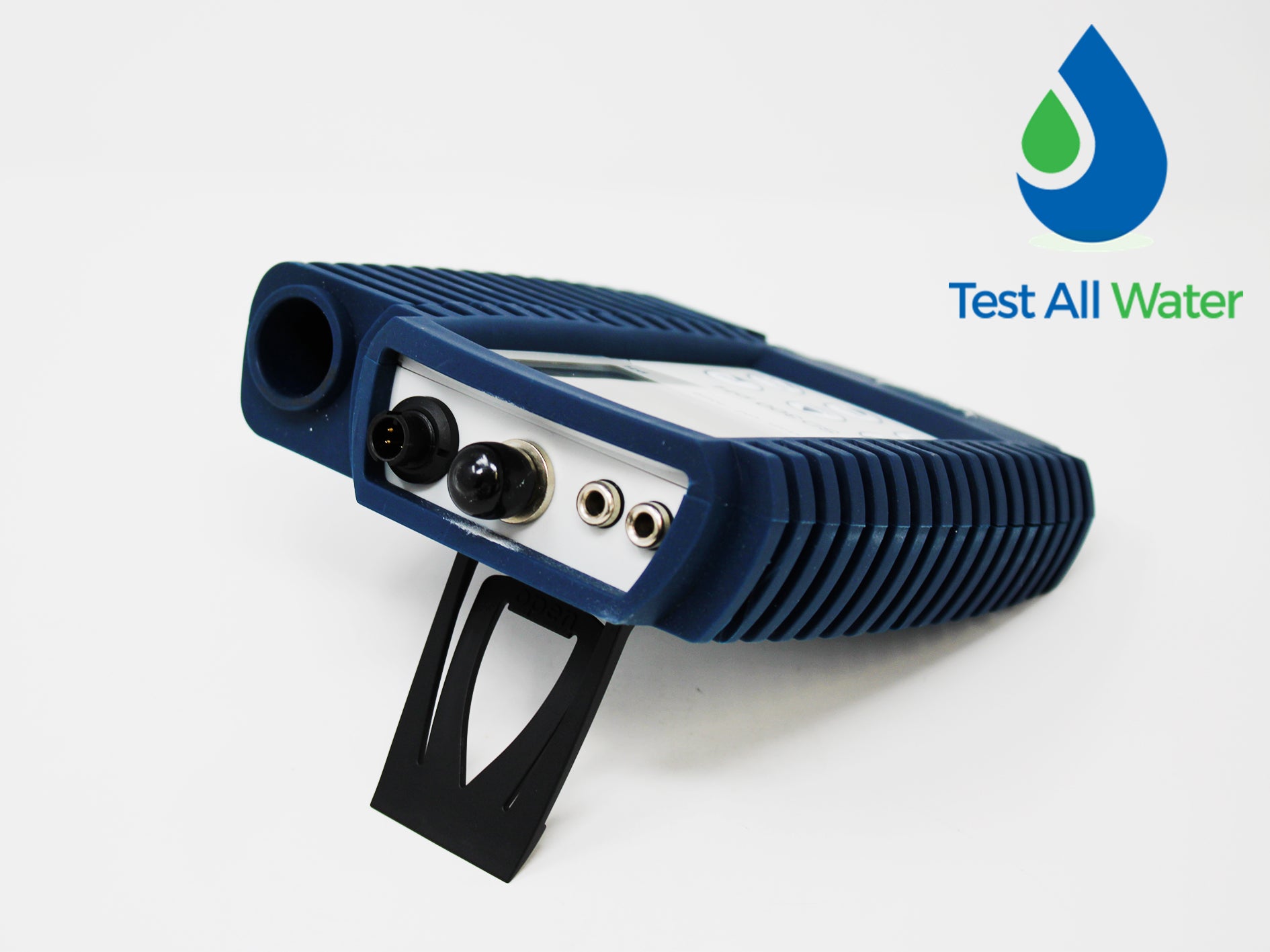

Connection |
BNC |
|
Length |
120 mm |
|
Diameter |
12 mm |
|
Cable Length |
1 m |

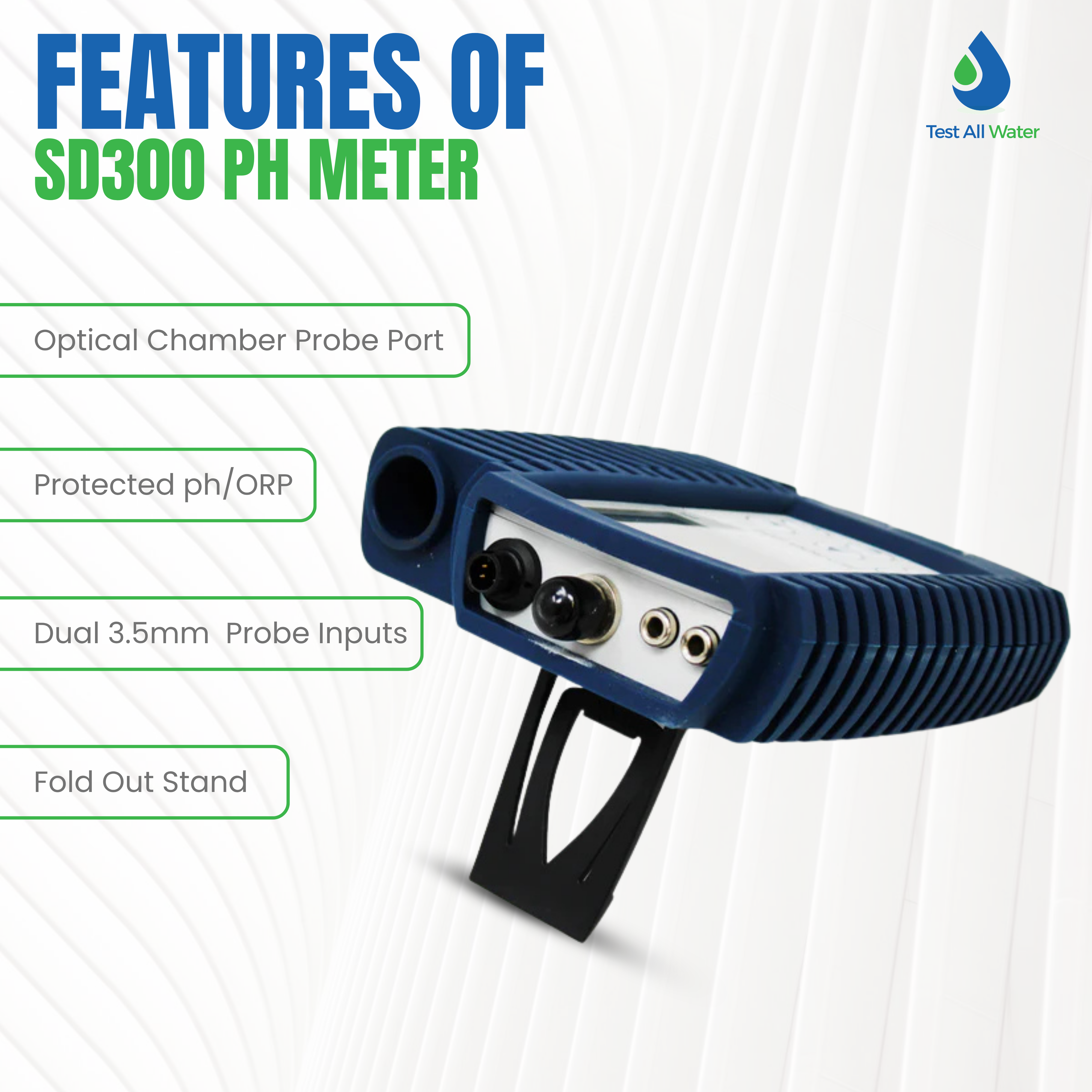

SD 300 PH Meter
- Rugged, water resistant (IP 67)
- PC interface (USB / serial or analog)
- Automatic buffer detection (SD 300 pH)
- Data logger and alarm function (min./max.)
Technically advanced
A particularly high resolution (0.001 pH / 0.1 mV) for maximum accu-racy, automatic temperature compensation and buffer detection are further features of the SD 300 pH.

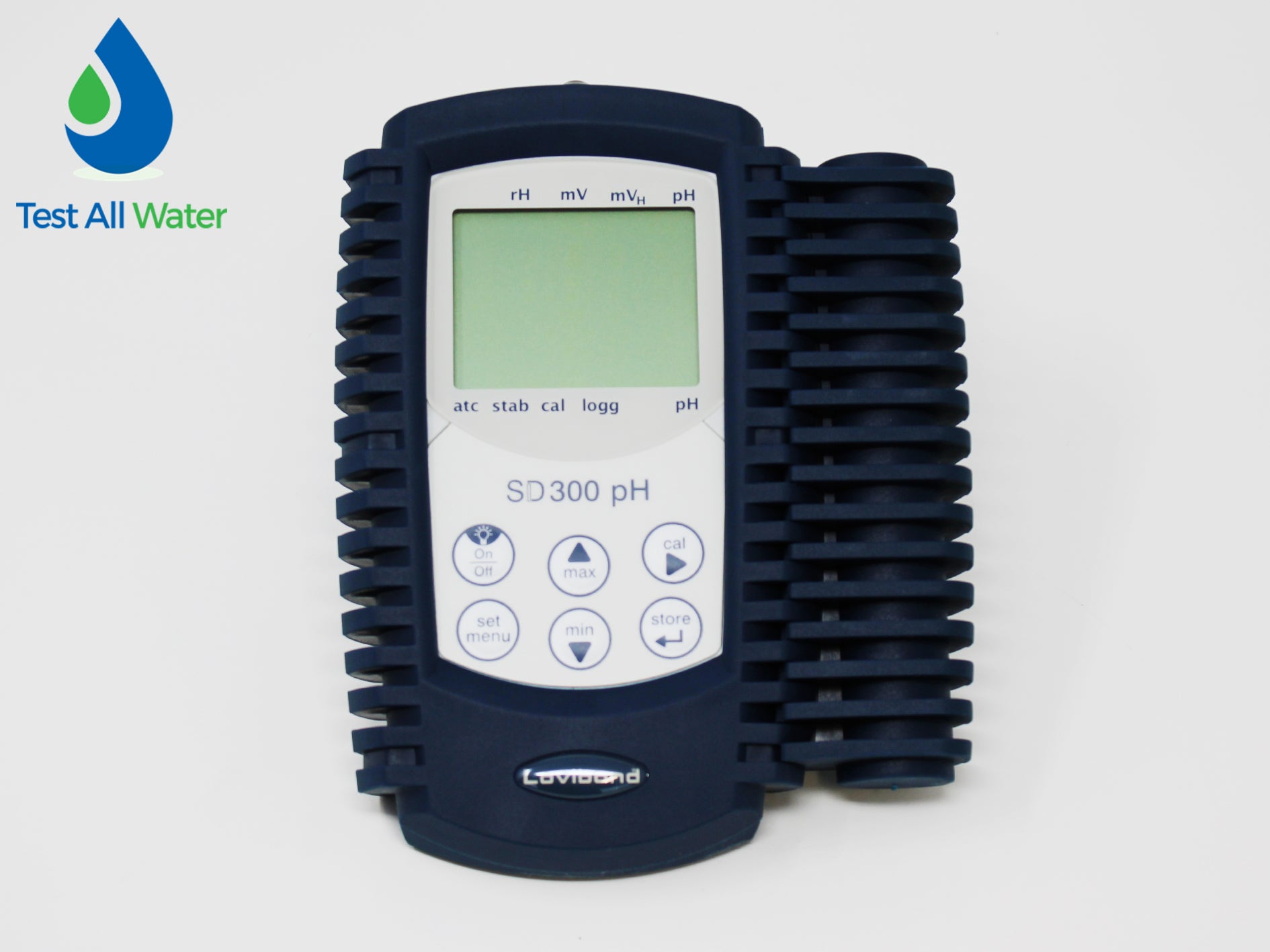

User-friendly Handling
The comfortable handling is completed by a large, backlit display. So you have the measurement results directly in view in every situation.
Data management
Data collected by the data logger can be transferred to the computer via USB interface (serial or analogue).

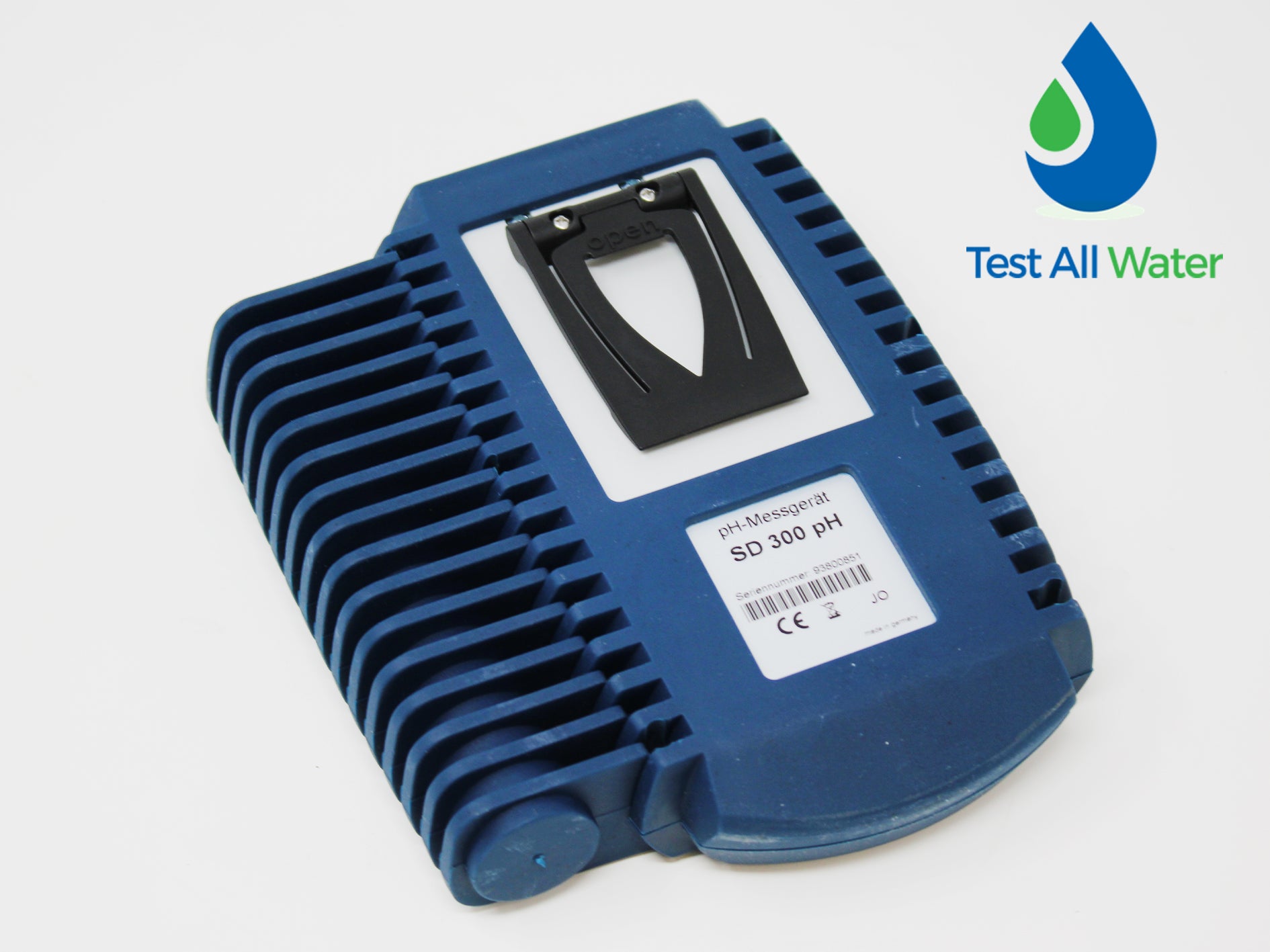

Housing

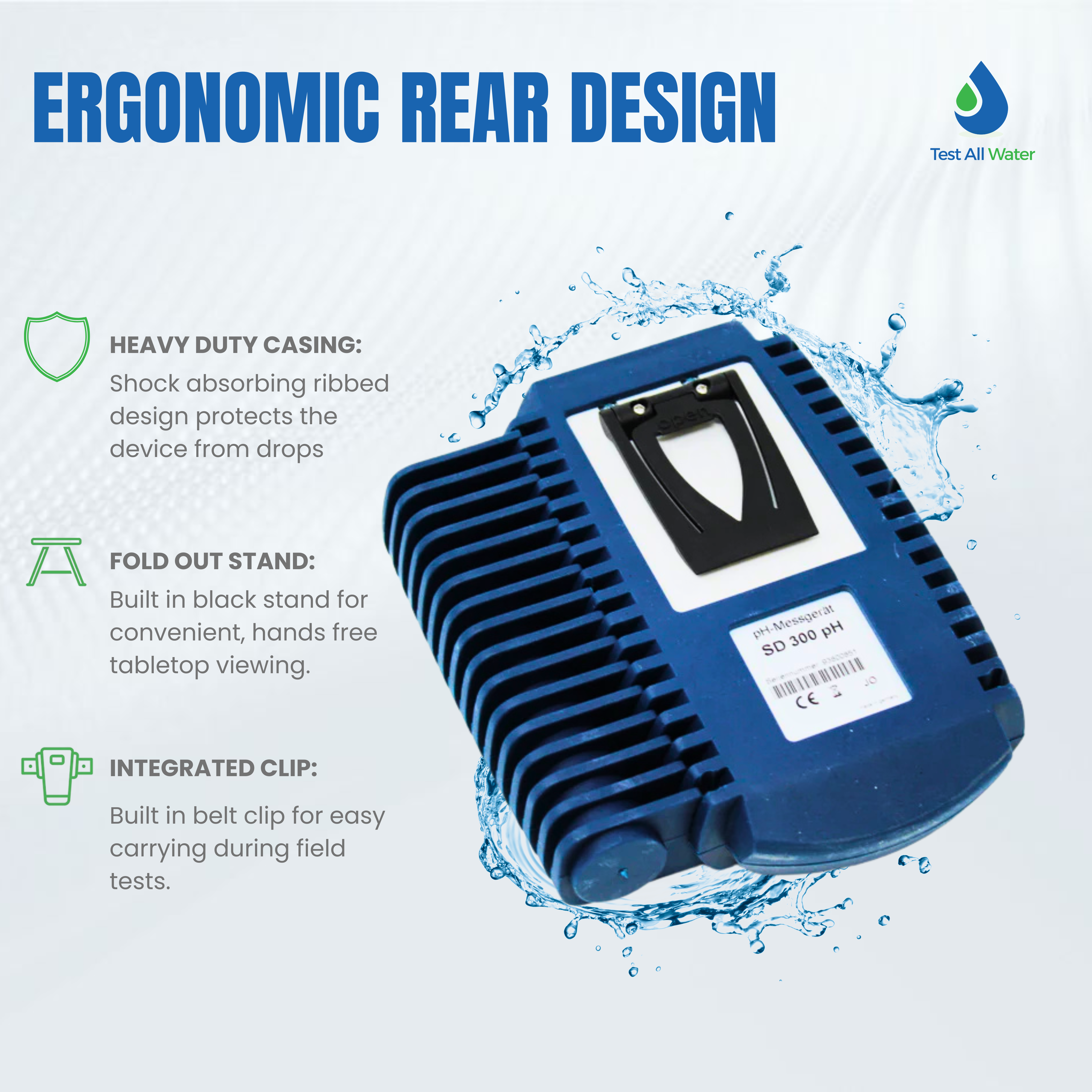

The protective reinforcement not only guarantees safe working at all times, even in extreme environmental conditions. The stand attached to the back of the housing can also be used as a hanger or belt clip.
Additional equipment
Battery and electrode status indication, battery replacement indicator, auto-off, auto-hold, min./max. Value memory are also included as functions
Industry
Chemical Industry | Food and Beverage Industry | Industries Others | Marine Industry | Municipalities | NGO | Oil and Gas | Pharmaceutical Industry | Power and Energy
Application
Boiler Water | Cooling Water | Drinking Water Treatment | Pool Water Control | Pool Water Treatment | Waste Water Treatment
SD 300 pH
Portable handheld instrument for the determination of pH values. It is reliable, waterproof (IP67) and robust, making it an ideal solution for on-site analysis.
Measuring Range
Test Name Measuring Range pH -2 - 16
Redox -2000.0 - 2000.0 mV
Temperature -5 - 150 ° C
