Palintest Lumiso Expert Photometer

Palintest Lumiso Expert Photometer

Lumiso Expert is a robust multi-parameter photometer with an extensive range of testing parameters. For users operating in water maintenance industries, such as drinking water and wastewater who need to perform water analysis testing in-situ or in laboratory environments, across frequent and less frequently used parameters.

With an intuitive and accessible touchscreen navigation, which also works with wet and gloved hands, and simple to follow onscreen instructions, the Lumiso Expert can be used with little to no prior training. It’s robust IP67 waterproof design and construction ensures it can be used in situ in any environment. Lumiso Expert also benefits from easy results retrieval and data traceability for audit compliance purposes.

Features include:

Robust construction – Impact tested to IK08 as part of EN61010. Scratch and chemical resistant coating.

IP67 waterproof design – Designed for use in wet and humid environments.

Large touchscreen interface – Intuitive and accessible with easy navigation, also works with wet and gloved hands.

Multilingual onscreen instructions – Step-by-step instructions on performing tests with little to no prior training required.

Data logging – Results are saved automatically, including test data, user, labels, and notes for audit and compliance.

Data retrieval – Easy access to data via Palintest Connect.

Recycled Materials – Case is made with recycled plastic.

Easy results retrieval with Palintest Connect.

Technical Specification:

Instrument Type: Multiparameter Photometer

Wavelengths: 430 nm, 465 nm, 530 nm, 575 nm, 620 nm

Peak Wavelengths: ±2nm

Accuracy: +/-1%T

Display: Full Colour TFT - 16:9 ratio screen, resolution 800 x 480 pixels

User Interface: PCAP touch panel

Size (W x L x H) and Weight: 211mm x 195mm x 52mm, 850g

IP Rating and Standards: IP67

Power Supply: 6 x AA 1.5V Batteries or Standalone USB

Connectivity: Via Windows App (USB) or Mobile App (QR Code)

Memory Capacity: Access 1,000 results via device’s screen

Battery Life: 5,000 tests from a set of batteries

Certifications : EN61326, EN61010, IP67 and EN60068-2-78

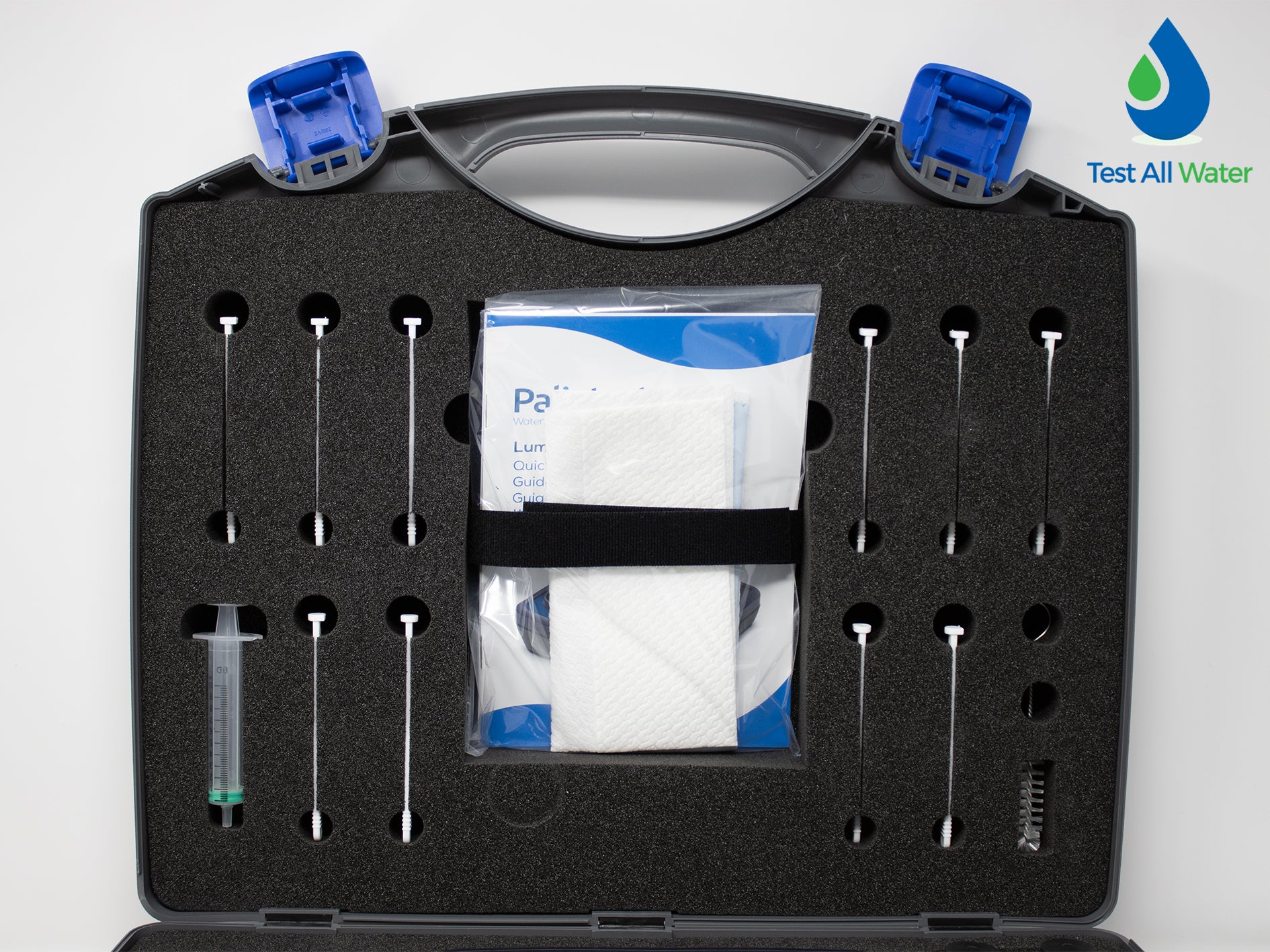

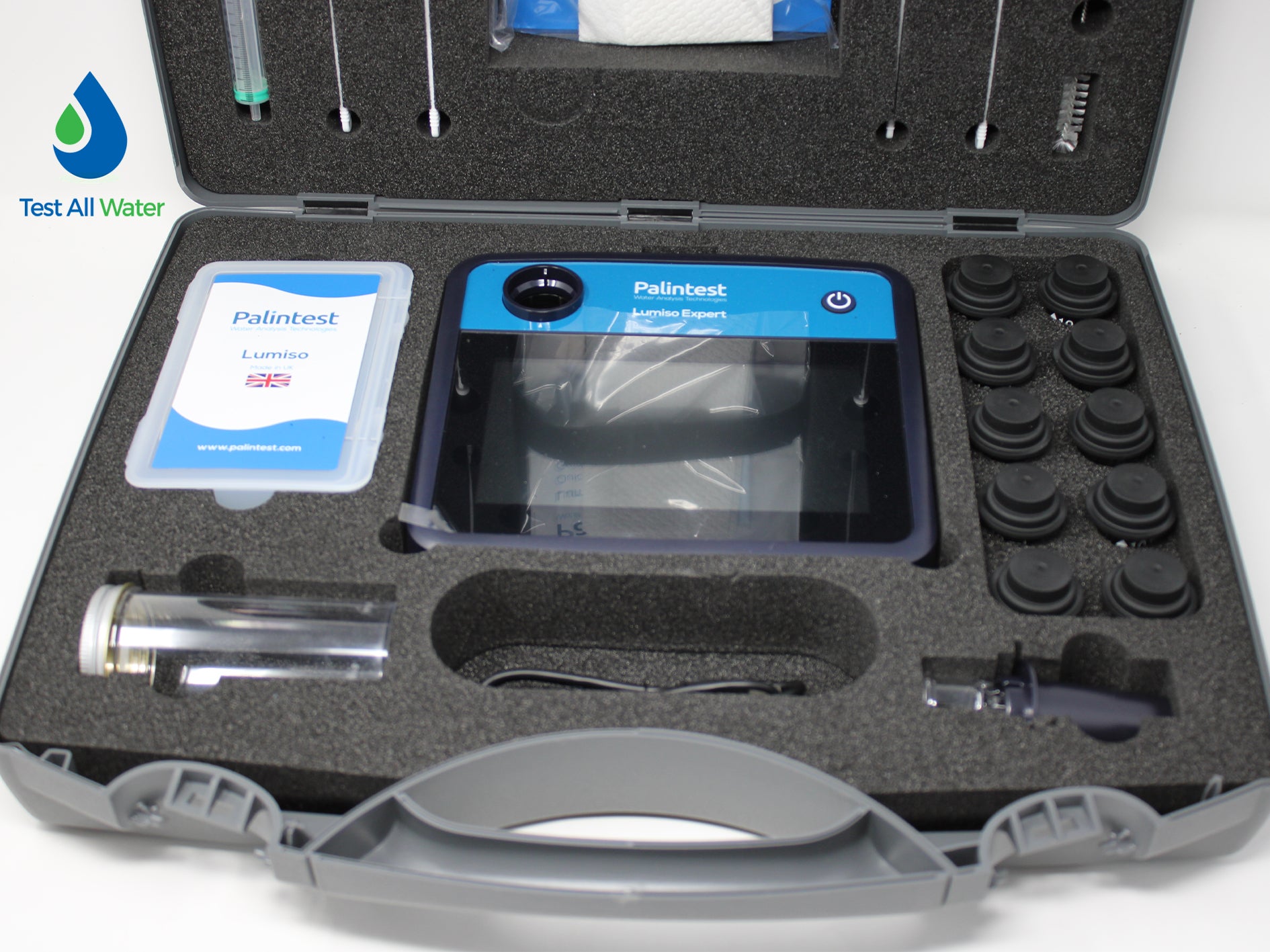

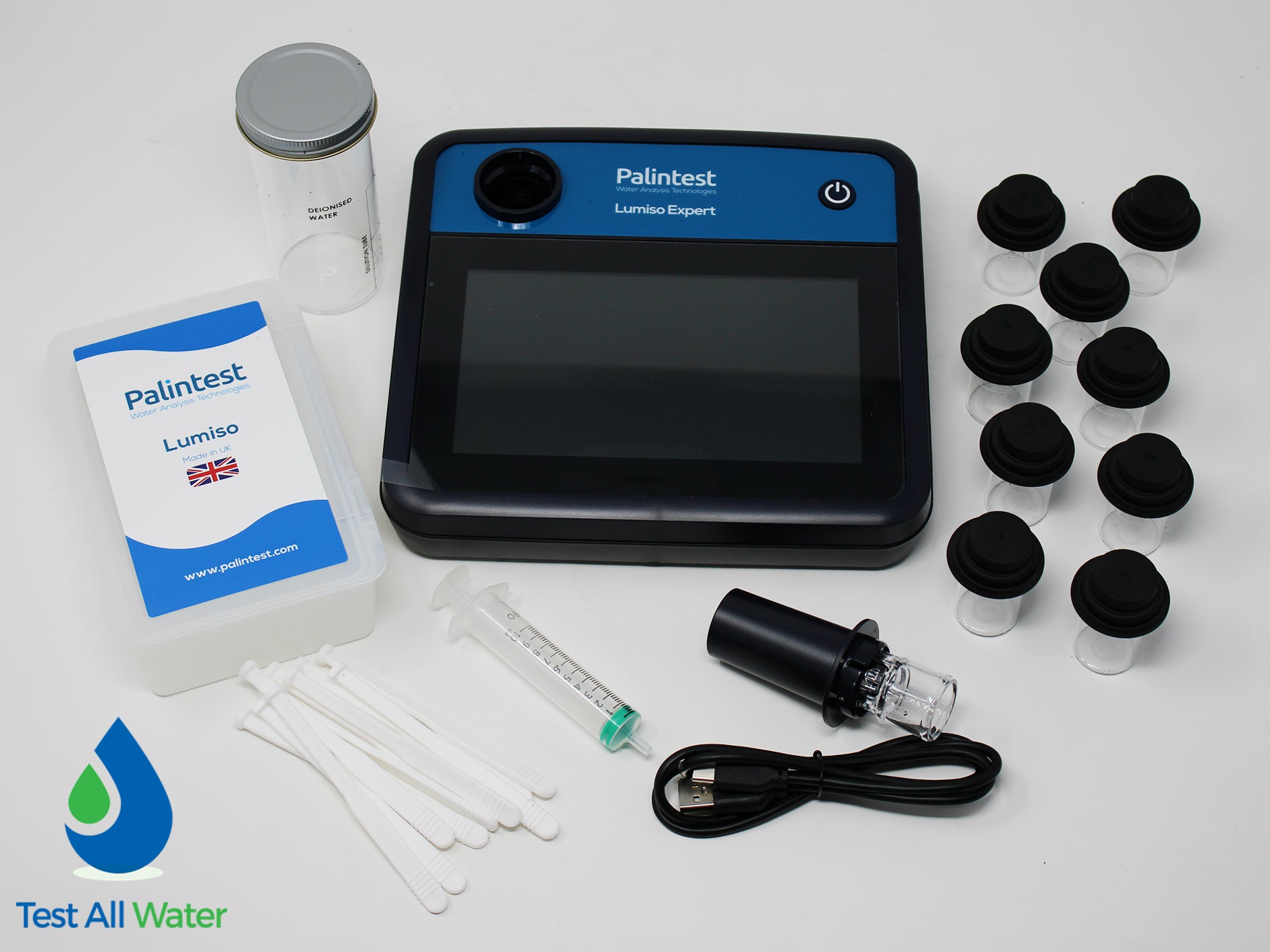

Kit Contents:

Lumiso Expert Benchtop Instrument x 1

Dilution Tube x 1

Syringe, Luer Slip, 10 mL x 1

Polishing Cloth x 1

Test Tube Brush, 12 cm x 1

USB lead x 1

Quick Start Guide x 1

Absorbent cloth x 1

Crush/Stir Rod x 10

Cap for 15mL Vial x 10

15mL Snap Cap Vial x 10

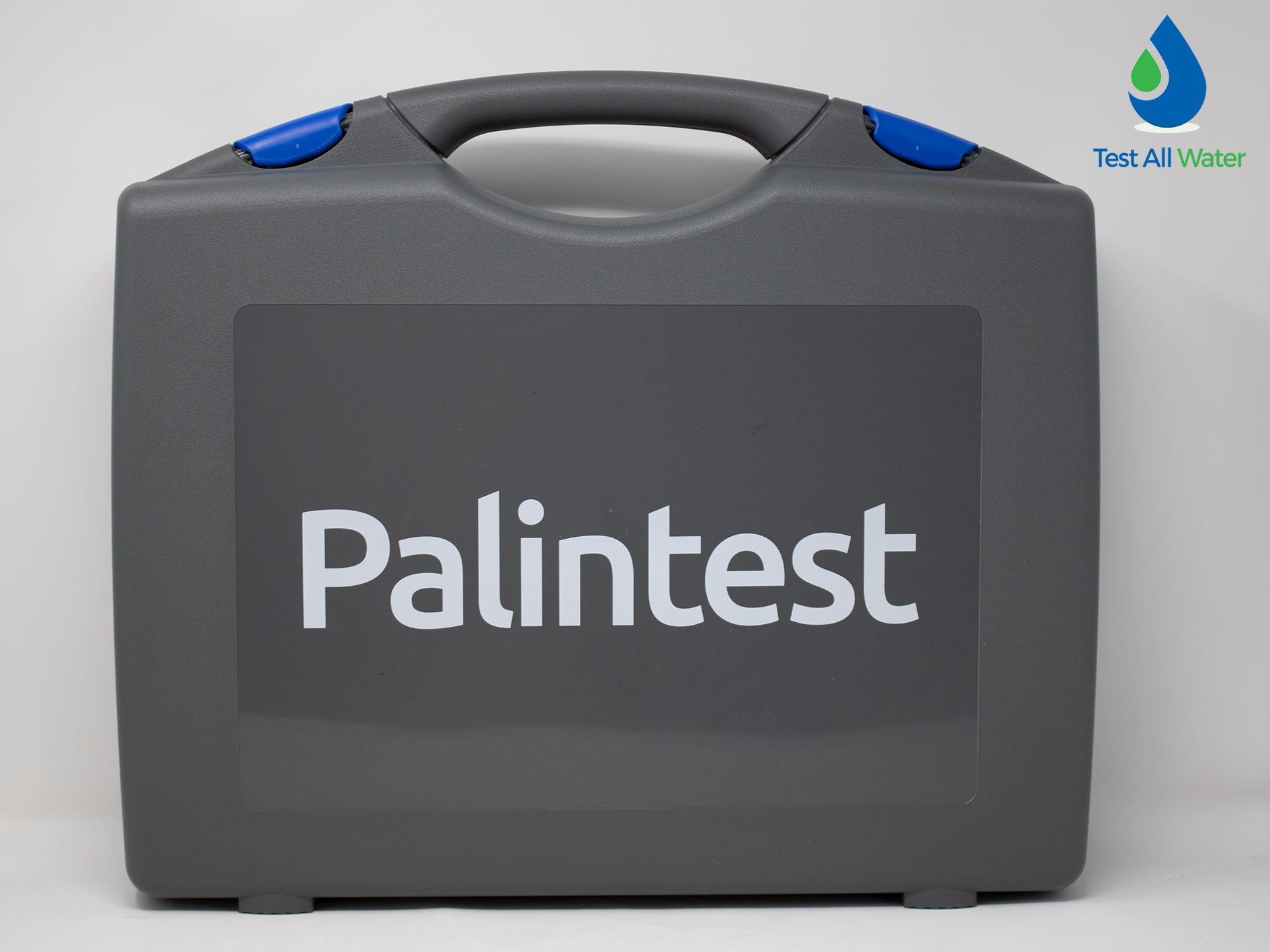

Lumiso Expert recycled plastic case x 1

Reusable Reagent Box*

*Reagents to be purchase separately

The Lumiso Expert Tests for:

Absorbance

Alkalinity, Total

Aluminium

Ammonia (Tablet Indophenol)

Ammonia/12N Tubetest Indophenol

Ammonia/15N Tubetest Nessler

Ammonia/50N Tubetest Indophenol

Ammonia/100N Tubetest Nessler

Ammonia/50N Tubetest Nessler

Bromine, Free, Combined & Total

Bromine, Total

Bromine, Total (+ Cl 2, F,C & T)

Bromine, Total (Cl 2 present)

Calcium Hardness

Calcium Hardness (Salt Pools)

Chlorine HR

Chlorine, F, C & T (Liquid)

Chlorine, F, C & T (Tablet)

Chlorine, Free

Chlorine, Free & Total (XF, XT)

Chlorine, Free (XF)

Chlorine, Total

Chromium (VI)

COD/1000

COD/150

COD/2000

COD/20000

COD/400

COD Mn

Colour

Copper

Copper, Free and Total

Cyanuric Acid

Fluoride

Hardness Total

Hydrogen Peroxide HR & LR

Iron HR

Iron LR

Iron MR

Iron MR (Molybdate present)

Iron MR (Nitrite present)

Langelier Water Balance Index

Magnesium

Maganese HR

Maganese LR

Molybdate HR

Molybdate LR

Nickel

Nitrate

Nitrate/30N Tubetest

Nitrite

Ozone

Ozone (Cl 2 or Br 2 present)

Phosphate /12P Tubetest

Phosphate LR

pH

Potassium

Sulfate

Total Nitrogen/30 Tubetest

Transmittance

Turbidity

Zinc

Zinc (copper present)

Sku:LUM7210
