Lovibond SD400 Oxi -Set-1
SD-400-Oxi-L-Set-1
- Luminescence technology
- High accuracy
- Low maintenace
- Drift-free, optical measurement

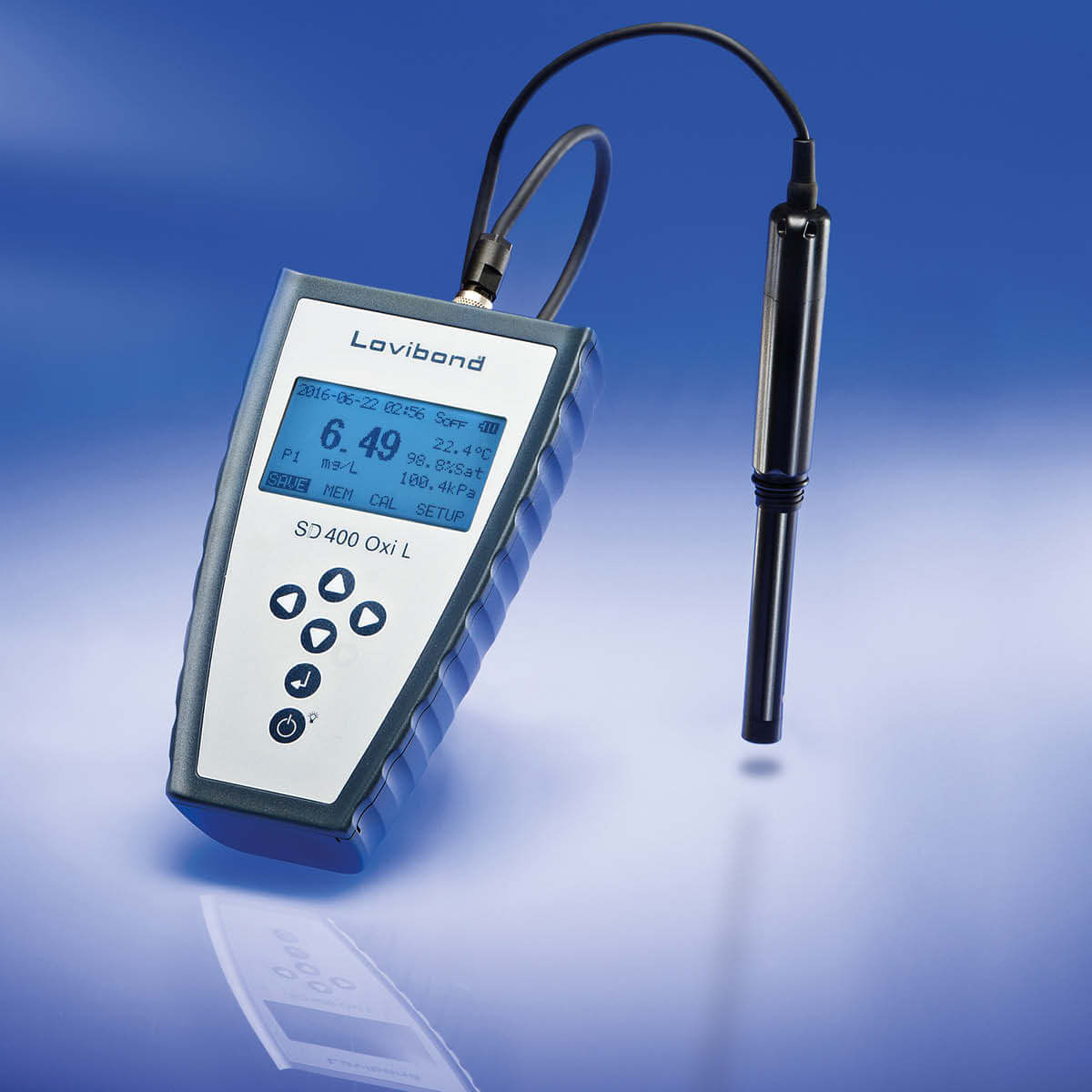

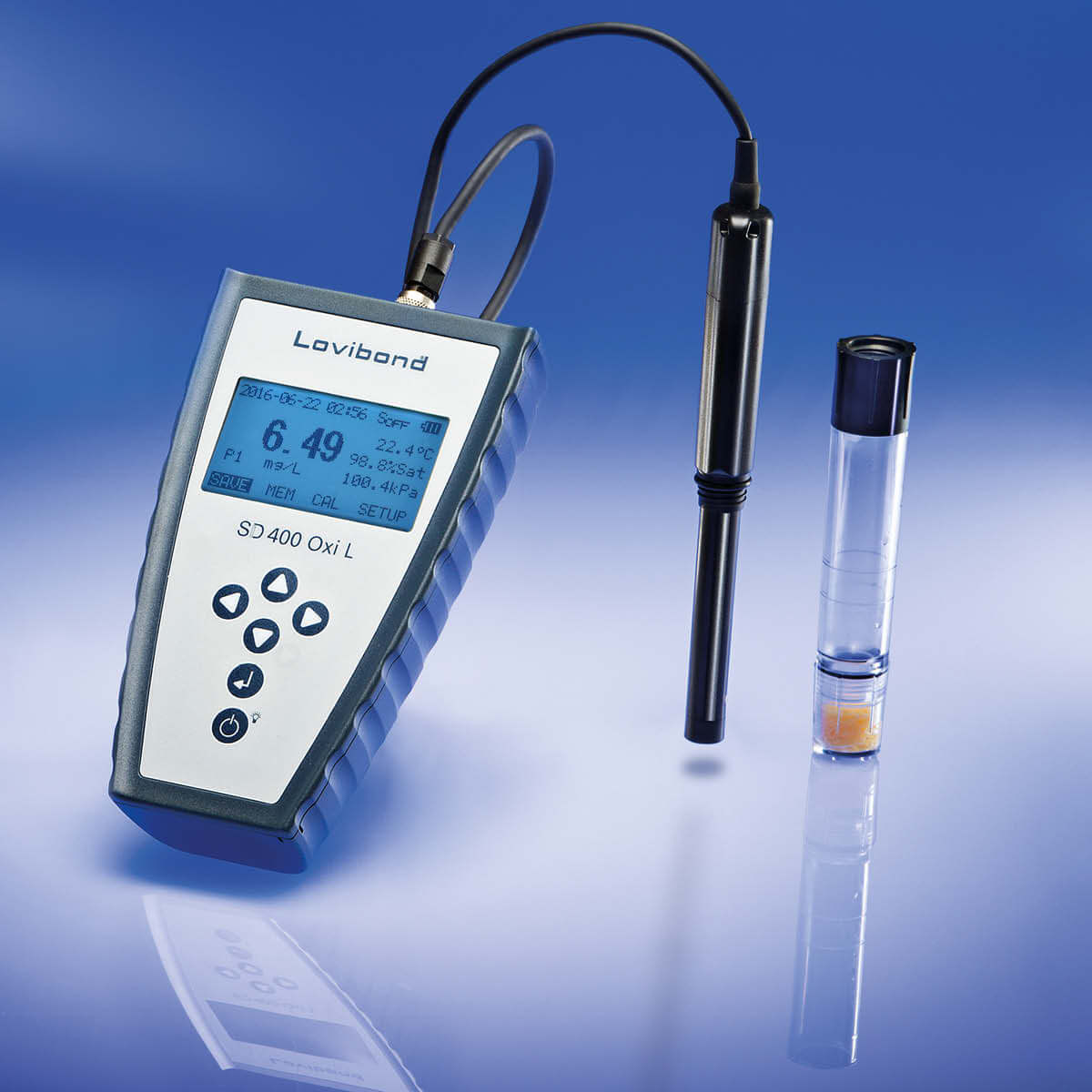

The portable SD 400 Oxi L handheld meter allows the determination of dissolved oxygen using the highly accurate optical luminescence technology. The advantages of optical oxygen determination over conventional methods are manifold:
- No need of an internal electrolyte: no additional effort, no hidden costs
- No sample flow necessary for stable sensor response
- No interferences from other gases
- Drift-free measurement ensures extremely precise results
- Low wear and low maintenance due to a long-life membrane head
- Ready for immediate use without warm-up or polarisation times
Functions such as the automatic temperature, pressure and salt compensation are ideal to match individual measuring conditions and make the instrument the perfect all-rounder in water analysis. Calibration data are sensor-specific and stored on the integrated SD card in the unit, which also contains a free software for monitoring, storing and transferring measurement data.
-
Modern technology
The SD 400 Oxi L uses optical luminescence technology. Your advantage: High measuring accuracy, fast response and absolutely user-friendly measuring. -
Low maintenance
Thanks to luminescence technology, no electrolyte is needed. Regular refilling is therefore no longer necessary - and maintenance is reduced to a minimum. -
Data management
By means of integrated software ("data logger") the collection and analysis of data is simplified. -
Suitable for "dilution BOD" determination

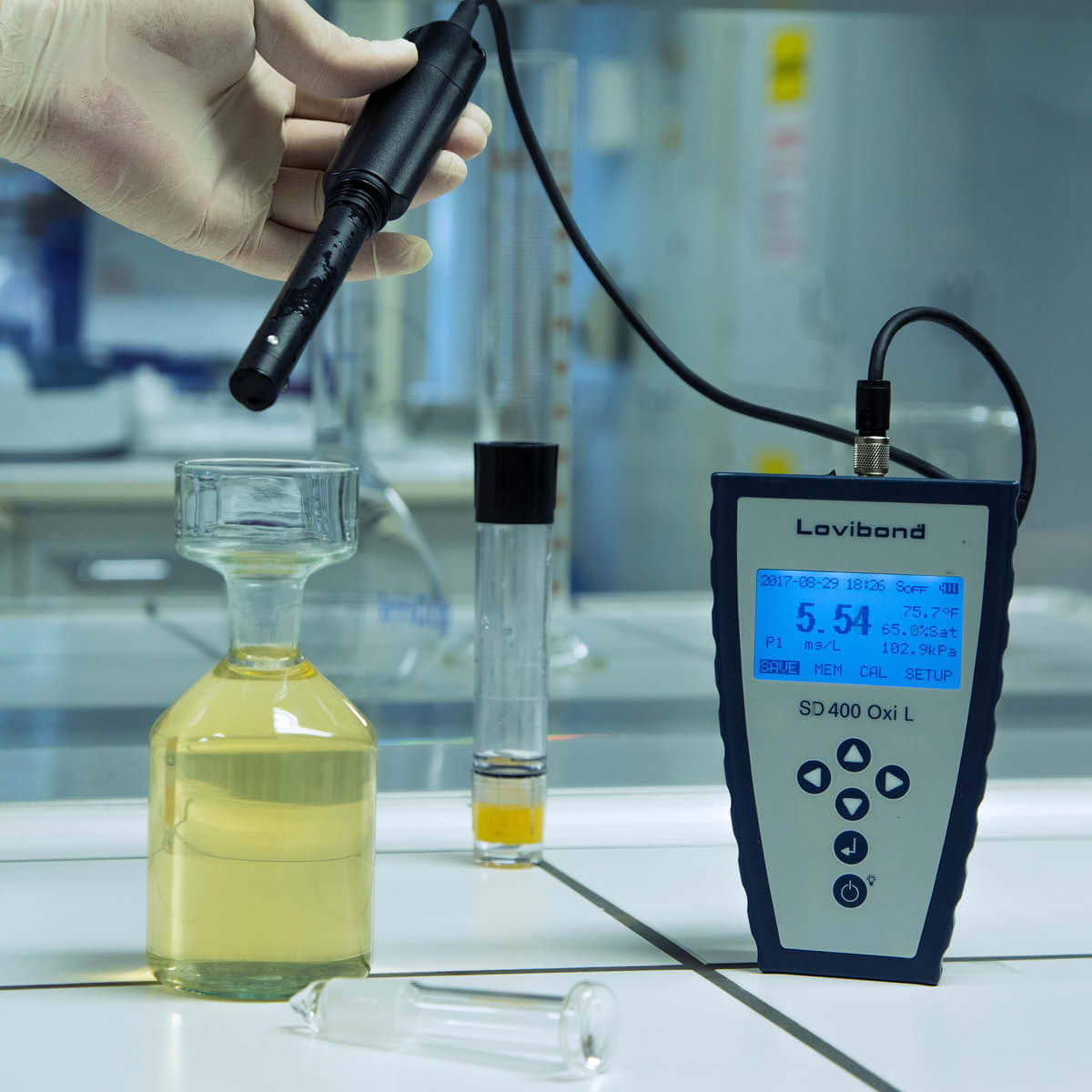

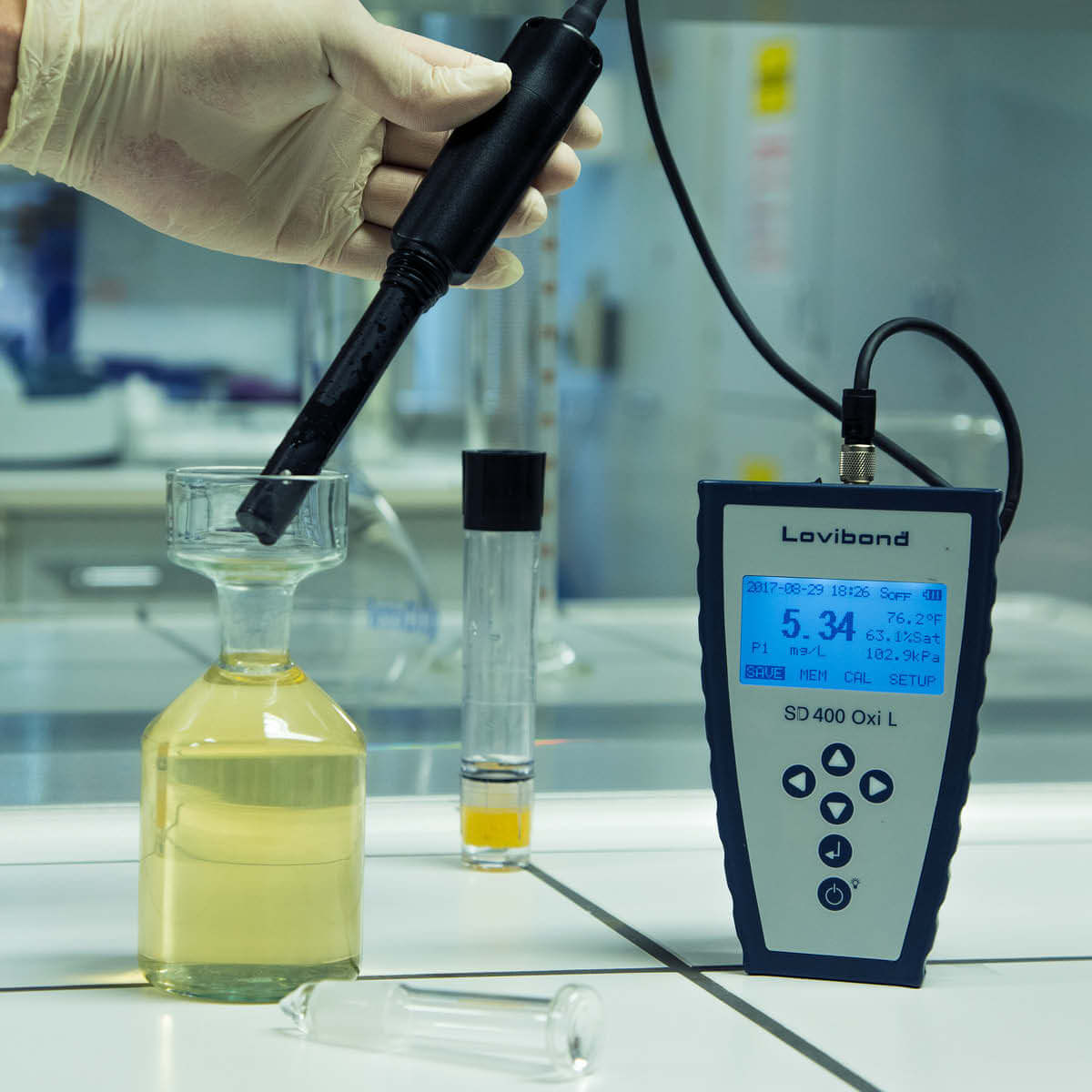

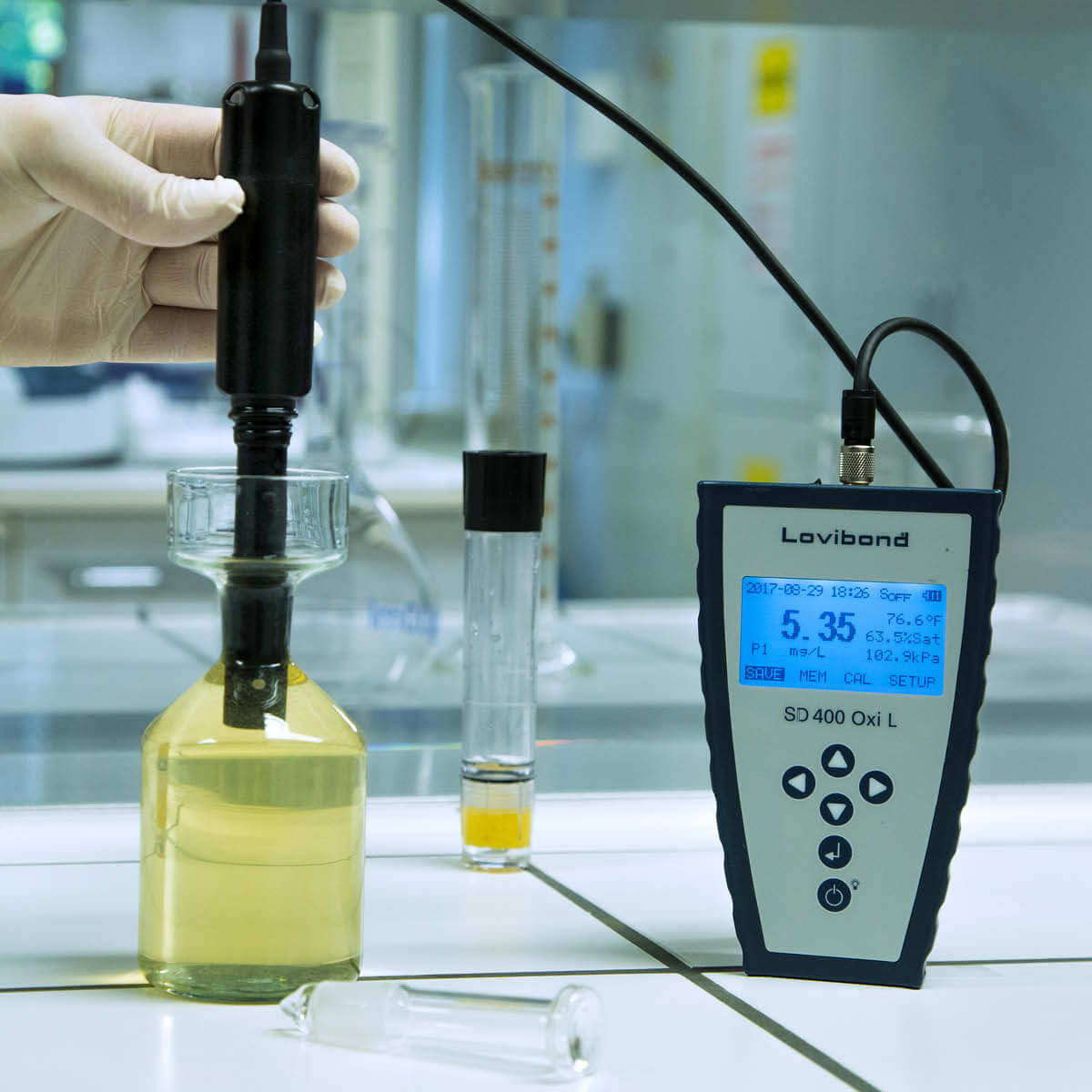

The electrode of the SD 400 Oxi L is optimized for standard BOD bottles (NS 19/26). The device is therefore ideally suited for standard-compliant BOD determination of the dilution BOD.
- Instrument
- 4 (AA) batteries
- Optical DO probe with 1.5 m cable
- Bottle for storage and calibration
- Micro SD Card with calibration data
- Data Acquisition Software (included on micro SD card )
- Full user manual (printed version and included on micro SD card)

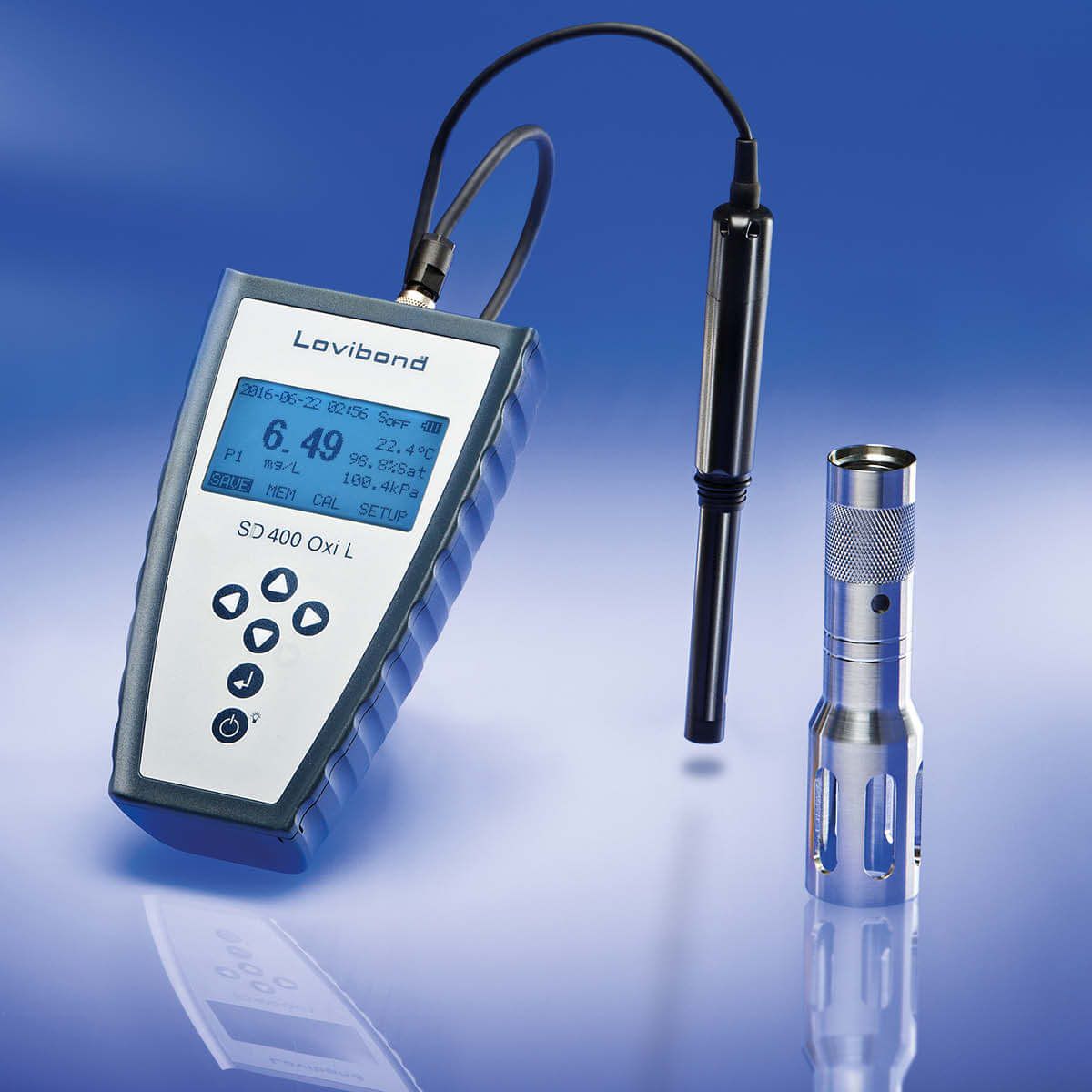

- Metal guard
- Micro USB cable for power supply and data acquisition
- Lanyard

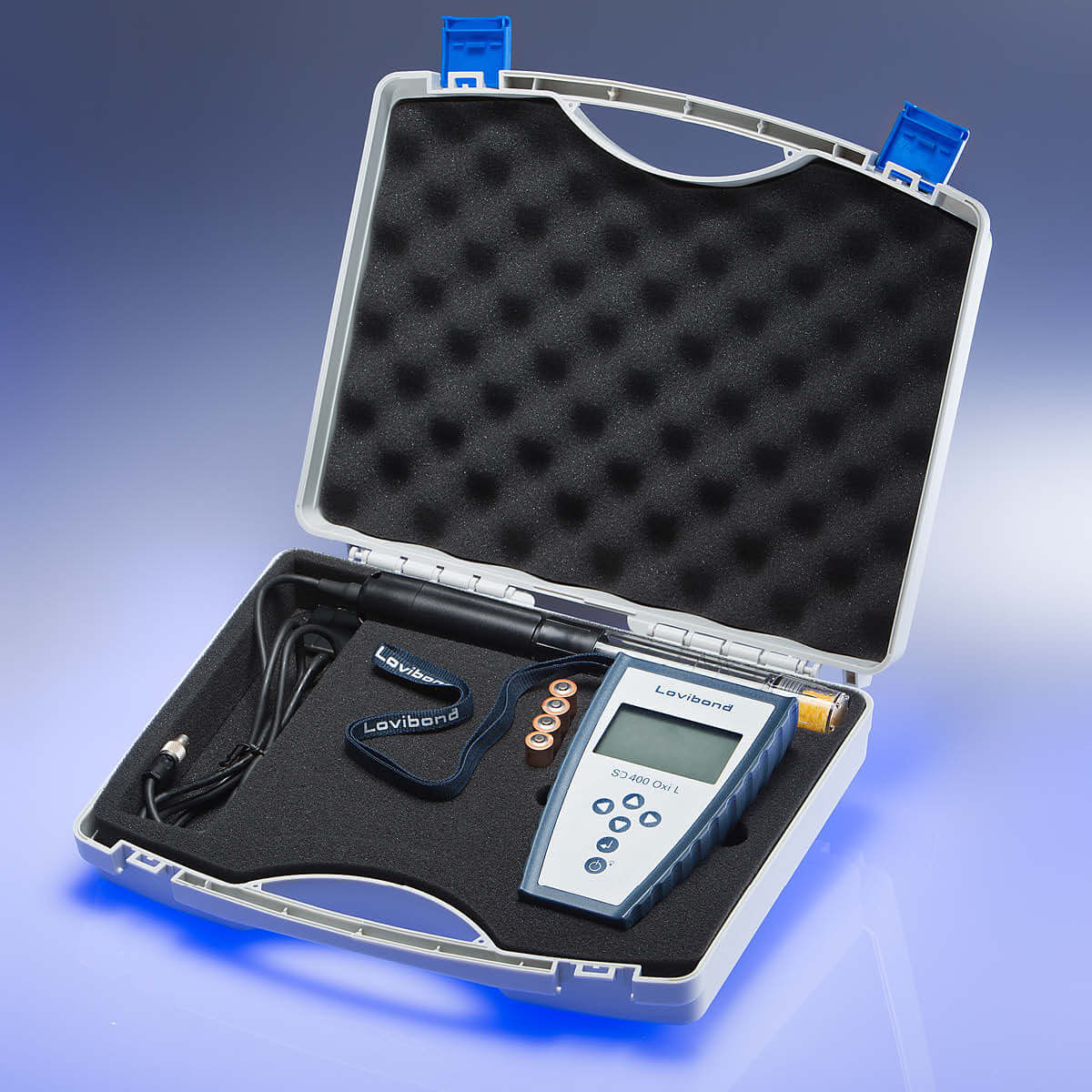

- in case
| Measuring Principle | Optical DO |
| Measuring Range | Concentration: Oxygen 0 - 50 mg/l, Saturation: 0 - 500 %, Temperature: -5 to 50 °C, Presure: 51 to 112 kPa |
| Accuracy | Concentration: < 20 mg/l: ± 1% MW oder 0,1 mg/l > 20 mg/l: ± 10% MW Saturation: < 200 %: ± 1% MW oder 0,1 % > 200 %: ± 10% MW Temperature: ± 0,2 °C |
| Display | Large LCD display with backlight |
| Interfaces | Micro-USB |
| Data Logger | Software for monitoring and storage of data |
| Auto – OFF | Yes |
| External Storage | Micro SD card |
| Power Supply | Micro-USB 4 batteries (AA) |
| Portability | Portable |
| Environmental Conditions | -5 °C - 50 °C |
| IP Rating | IP 67 (Sensor) |
| Compliance | CE |
| Dimensions | 98 x 54 x 162 mm |
| Weight | 330 g (unit incl. batteries) |
| Weight with Packaging |
(unit incl. batteries) |
| Testparameter | Measuring Range | |
|---|---|---|
| Oxygen | 0 - 50 mg/L O2 |
