Description
This product has been discontinued and replaced with 724680
Product Name
SD 310 Oxi
Test / Range
Dissolved Oxygen | 0-70 mg/l O2 |
Oxygen Saturation | 0-600 % O2 |
Partial Pressure | 0-1200 hPa |
The SD 310 Oxi meets the day-today demands for sturdy and reliable measurement of dissolved oxygen. The well-known Clark-oxygen-sensor with integrated temperature compensation allows instant measurement without the need for time consuming polarisation.
The automatic hold function “freezes” measuring data in the display, and makes them easy to read.
Data logger and alarm functions enable continuous monitoring of measurement results in the field, with storage for up to 8000 data sets
The water-tight housing (IP 65 & IP 67) together with the rugged and protective armour ensures reliable operation even in extreme ambient conditions.

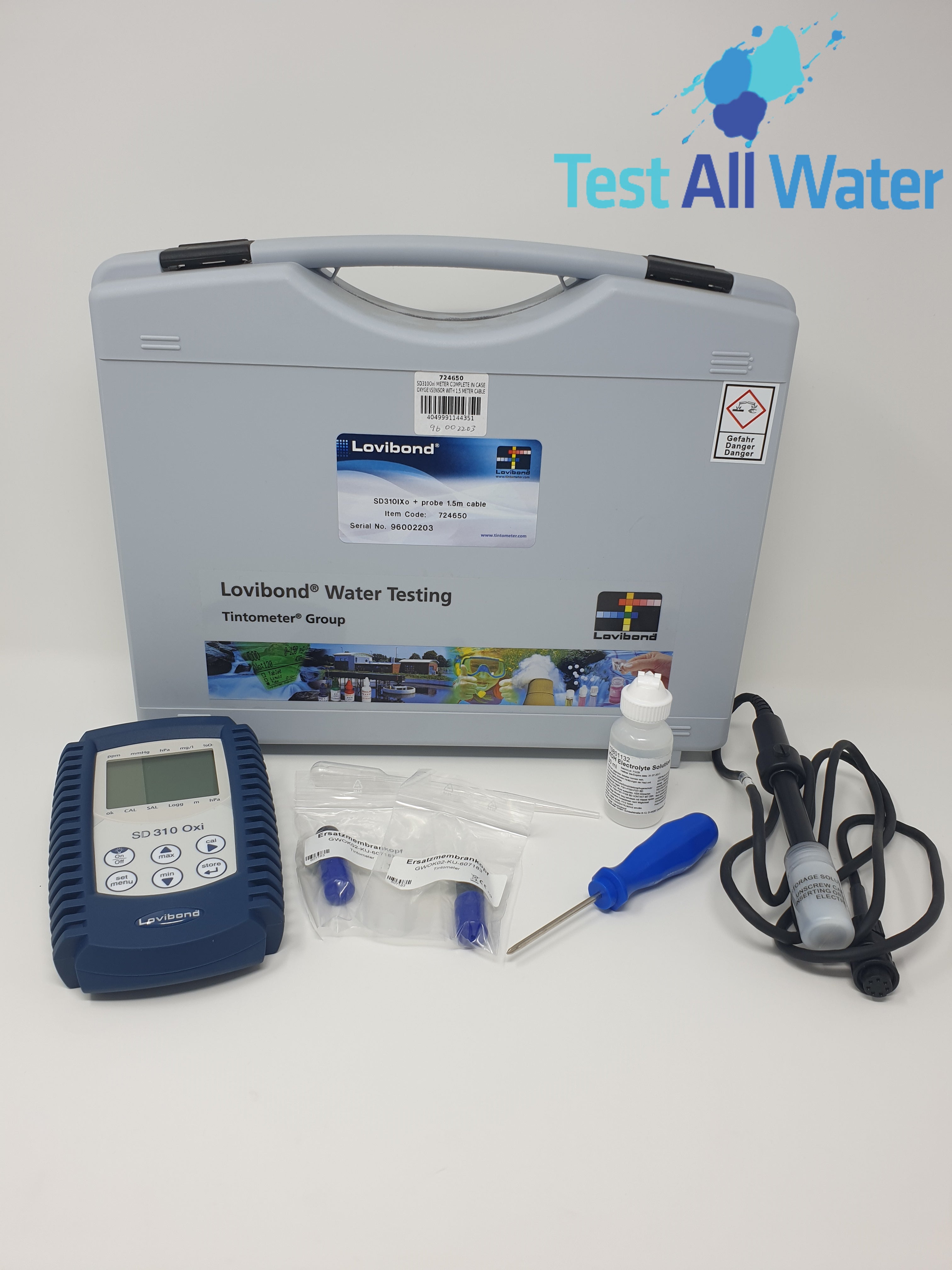

Delivery Content
- SD 310 Oxi
- 2 x AAA batteries
- Oxygen Sensor with 1.5 metre cable
- operating instructions
- Electrolyte solution
- 3 x replacement membranes
- protective casing for field use
Note the meter can be supplied with Oxygen sensors with 10m cable or 30m cable:
724660 SD 310 plus Oxygen Sensor with 10m cable
724665 SD 310 plus Oxygen Sensor with 30m cable
Parameter | Range | Resolution | Accuracy |
---|---|---|---|
O2 Concentration | 0.00 - 70.00 mg/l | 0.01 | ± 0.2 mg/l |
O2 Saturation | 0 - 600% | 0.1% | ± 1.5% |
O2 Partial Pressure | 0 - 1200 hPa (0- 427.5 mmHg | 1 | ± 3 hPa |
Temperature | -5.0 ... +50.0°C +23.0 ... +122.0°F |
±0.2°C 5.0 .... +100.0°C |
|
Connections | |
Electrode | 7 pin bayonet |
Interface/External Supply | 4-pole bayonet connector for serial interface and supply (with accessory USB 300) |
Display | Backlit LCD |
Calibration | Automatic 1, 2 or 3 point calibration, 0%, 100%, ambient air, air saturated water |
Data Storage | 1000 data sets manually; 8000 data sets using logger |
Protection Class | IP67 (housing and connections) |
Dimensions | 164 x 98 x 37mm (H x W x D) inc. protection cover |
Weight | 287g inc. battery and protective armouring |
Housing | Impact resistant PA 6 G B30 housing with pop-up clip |
Armouring | Shock-absorbing protective armouring |
Power Supply | 2 x AAA battery (included). Power consumption: <1.0mA |
Battery Life | 160 hours; auto off function 0 - 120 minutes |
Ancillary Items
Stock Code |
Name |
|
Service Set SD 310 Oxi |
|
USB 300 cable |
|
GSOFT 3050 Data Transmission Software |
