Lovibond PFXi-195/9 + RCMSi Pack

Sale price£6,384.93

Lovibond PFXi-195/9 + RCMSi Pack

  • Integrated RCMSi Technology for Remote Calibration
  • Automatic and Non-subjective Colour Measurement
  • Consistent Data Compliant with International Standards
  • Very Rugged, Chemically Resistant, Steel Construction

Delivery Content

  • PFXi Series Instrument
  • External Power Supply
  • Set of 3 Power Leads (UK, European and United States)
  • USB and LAN Cable
  • Quick Start Guide
  • CD ROM (Containing Windows® Control Software and Manuals)
  • RCMSi Starter Pack
  • Certificate of Conformity
  • Accessory Box with 5 Volt Halogen Lamp, Conformance Filter, 1 x W600/OGC/10 Cell

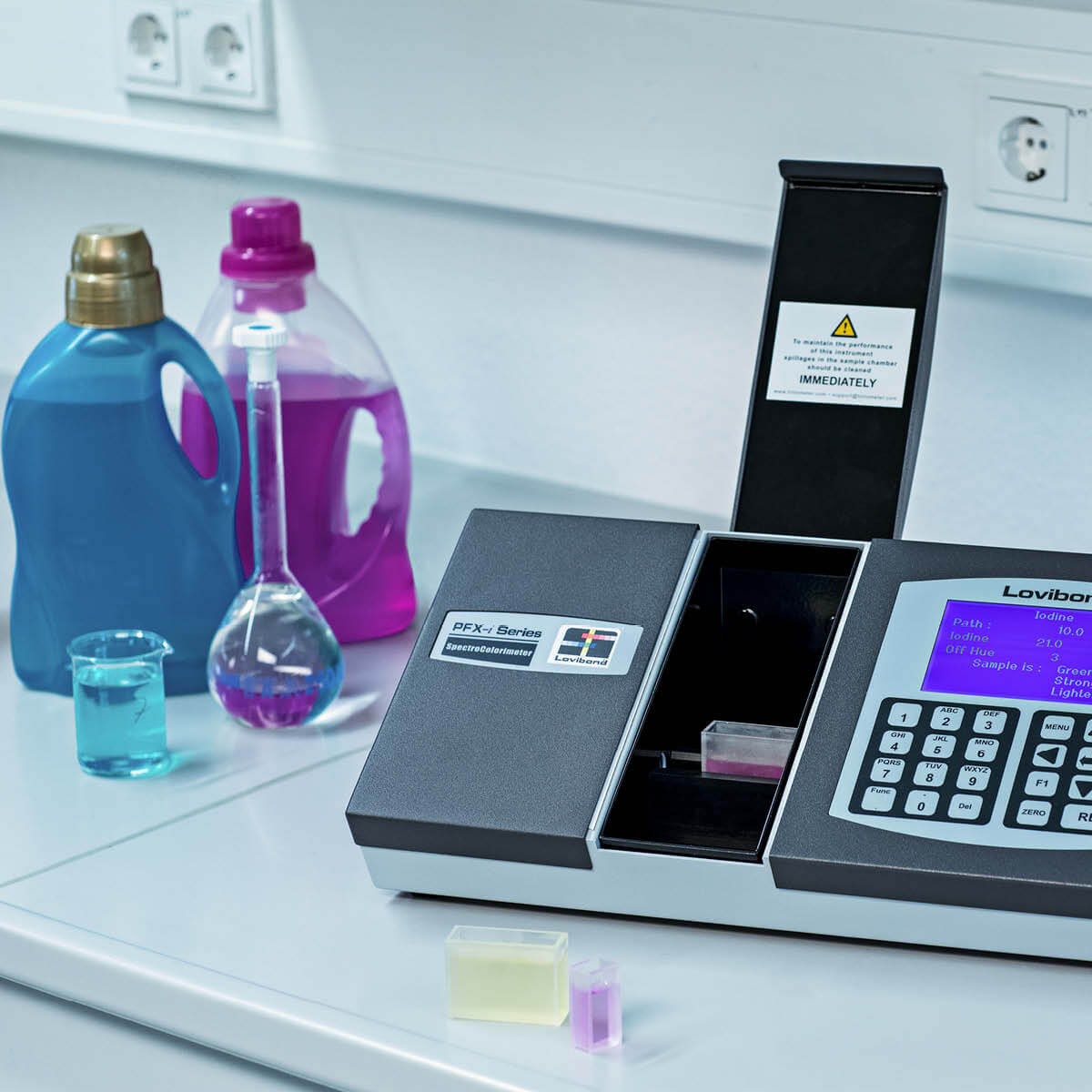

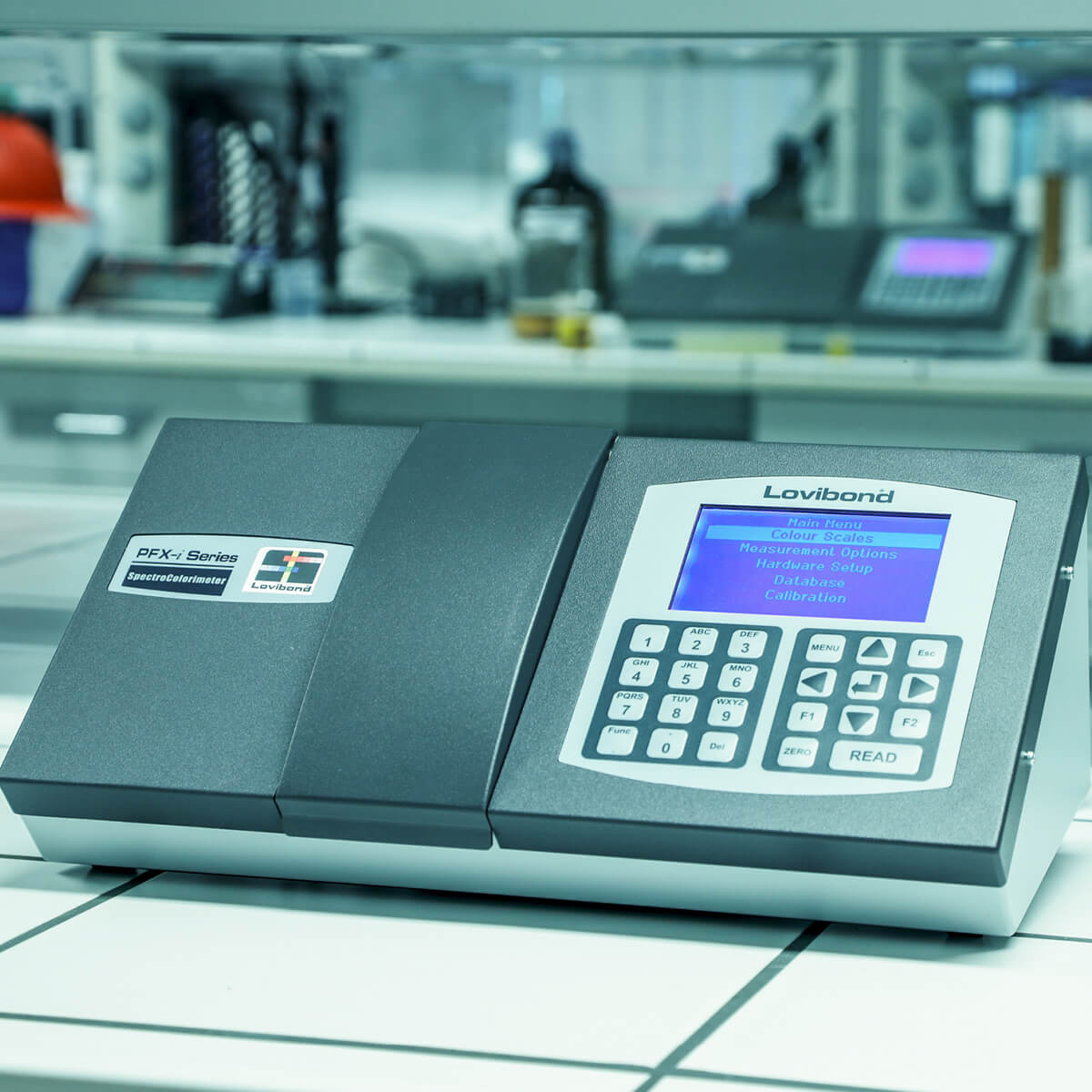

The PFXi series of spectrophotometric colorimeters introduces a unique concept in liquid colour control: RCMSi technology. You can benefit from the capability for remote calibration and servicing via the internet - saving the cost and time associated with servicing and guaranteeing compliance with standards.

The PFXi range is supplied with a full range of colour scales for specific markets including, but not limited to, Petroleum, Edible Oils, Pharmaceuticals, Brewing and Honey. Users can upgrade scales remotely at any time.

Note: When dealing with materials such as fats and waxes whose temperature needs to be maintained at a constant temperature +10°C above the "Cloud Point" of the material, the PFXi-880, -950 & -995 series should be considered. These are available with an additional critical feature, an optional integrated heater unit.


Lovibond PFXi-195/9 + RCMSi Pack

Techincal Data

Applicable Standard: ASTM 313, ASTM D848, ASTM D1925, ASTM E308

Colour Type: Transparent

Light Source: 5 Volt, 10 Watt Tungsten Halogen

Display: 240 x 128, back-lit graphic display, (white on blue)

Path Length: 0.1 - 50 mm

Measuring Geometrics 0° - 180° Transmission

Interfaces: USB, RS 232, Ethernet

Detector: blue enhanced photodiode

Internal Storage: 100,000+ Messungen

Power Supply : Universal (90 - 240 VAC), via external power supply

Measuring Principle: 9 interference filters

Measurement Time : less than 30 seconds

Sample Chamber: max 50mm cells

Keypad : 23 key tactile membrane keypad; washable polyester with audible feedback

Instrument Housing: Fabricated steel with tough, textured paint finish

Bandwidth: 10 nm

Repeatability: ±0.0004 (CIE xy Chromaticity) on measurements of de-ionised water

Baseline Calibration : Single key press; fully automated

Illuminants : CIE Illuminant A, CIE Illuminant B, CIE Illuminant C, CIE Illuminant D65

Portability: Benchtop

Observer: 2°, 10°

Touchscreen: false

Compliance: CE, RoHS. WEEE

Languages User Interface : English, German, French, Italian, Portuguese, Spanish, Russian, Chinese, Japanese

Dimensions : 435 x 170 x 195 mm

Weight: 6.8 kg
