Lovibond PFXi-195/1 + RCMSi Pack

LovibondSKU: 1371951
filler

Price Excluding VAT:
Sale price£6,521.02

shipping calculated at checkout

Stock:
Re-stocking soon, contact us to confirm date

Description

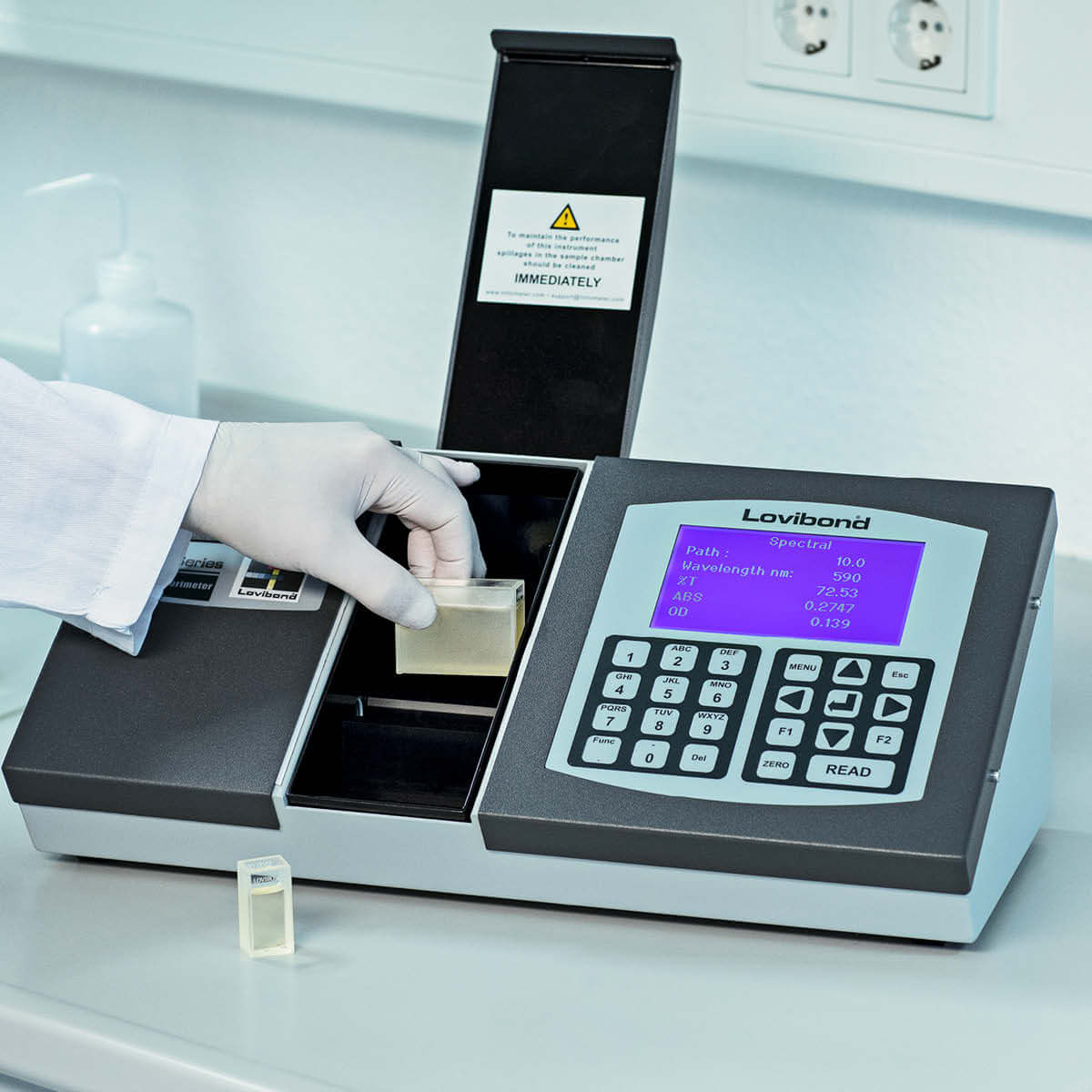

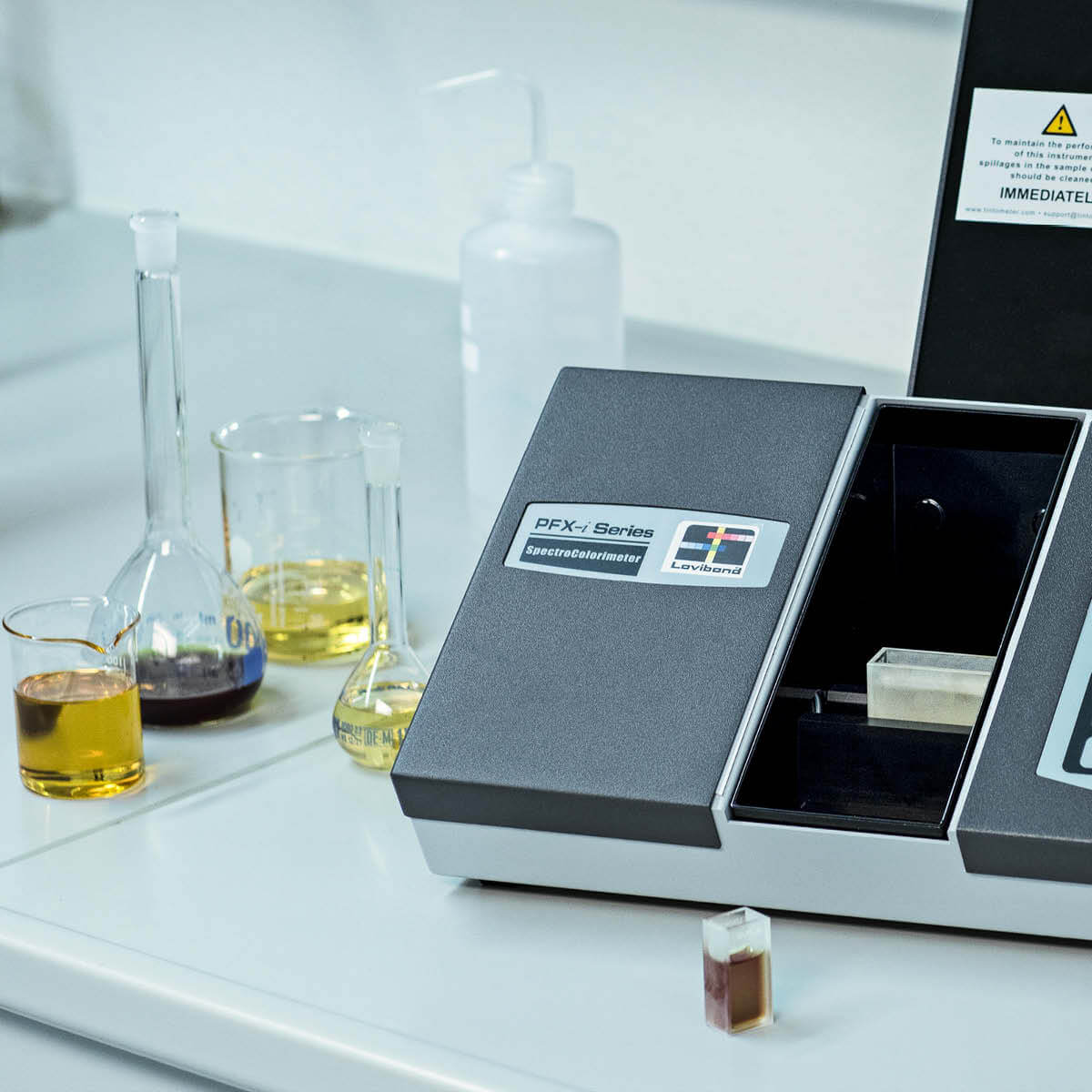

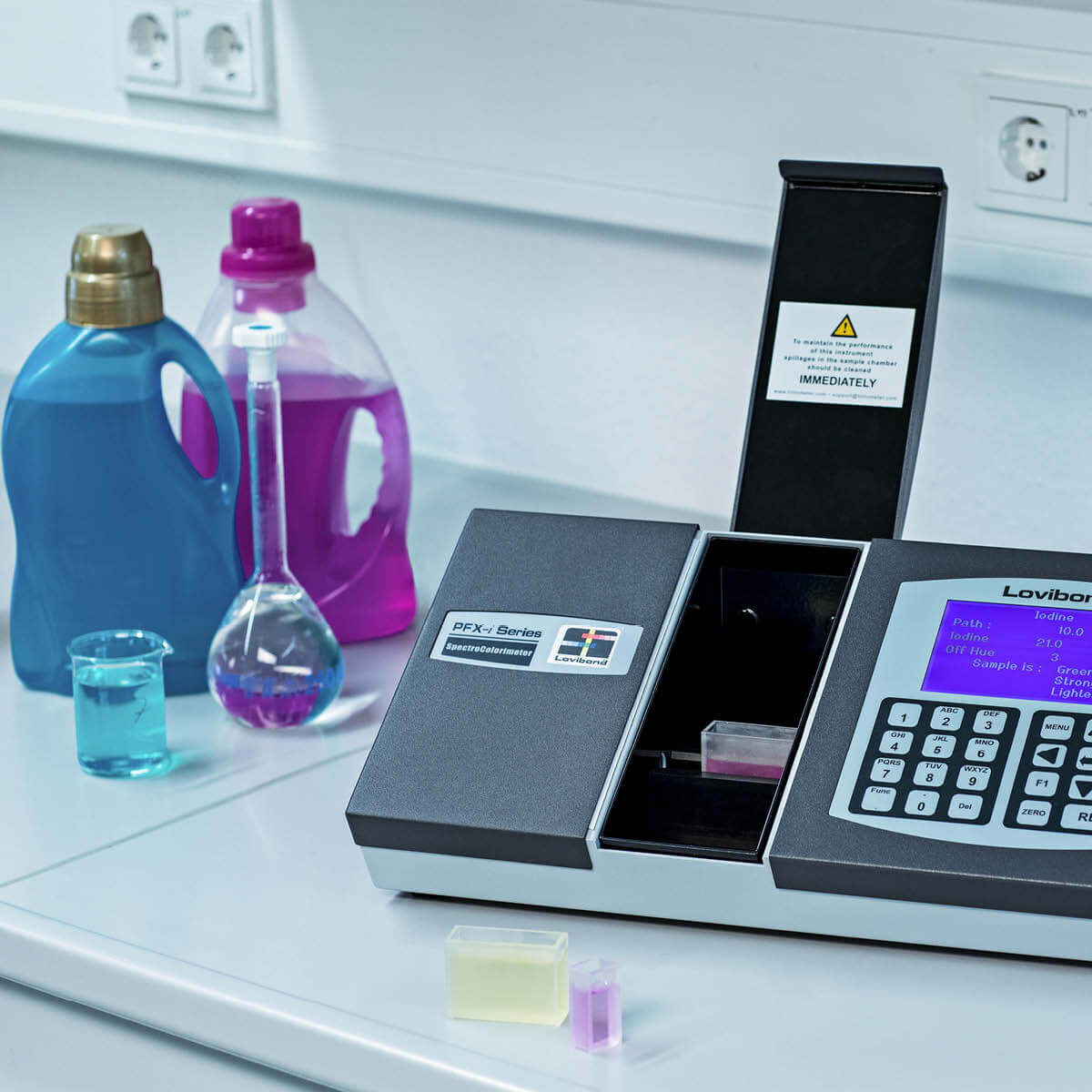

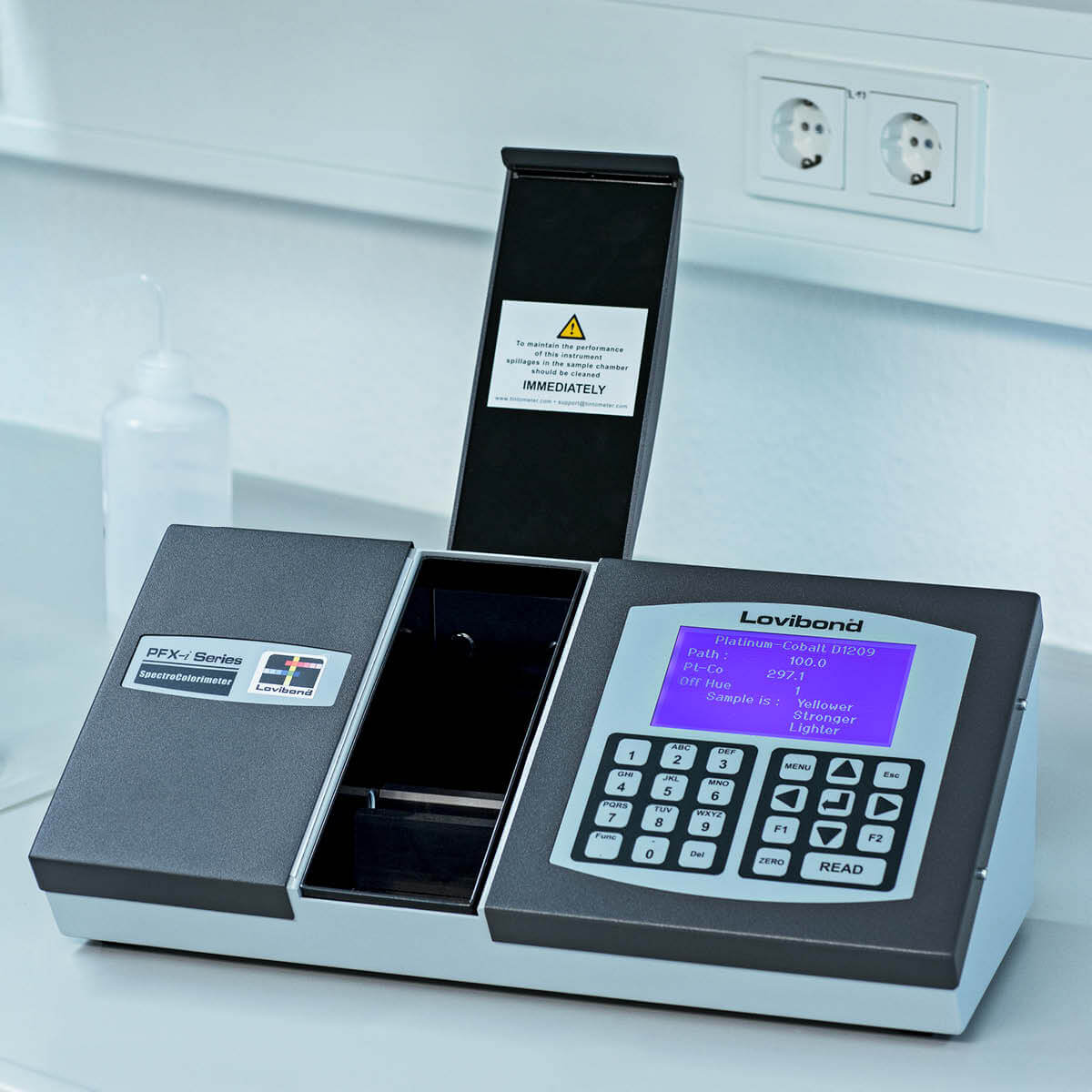

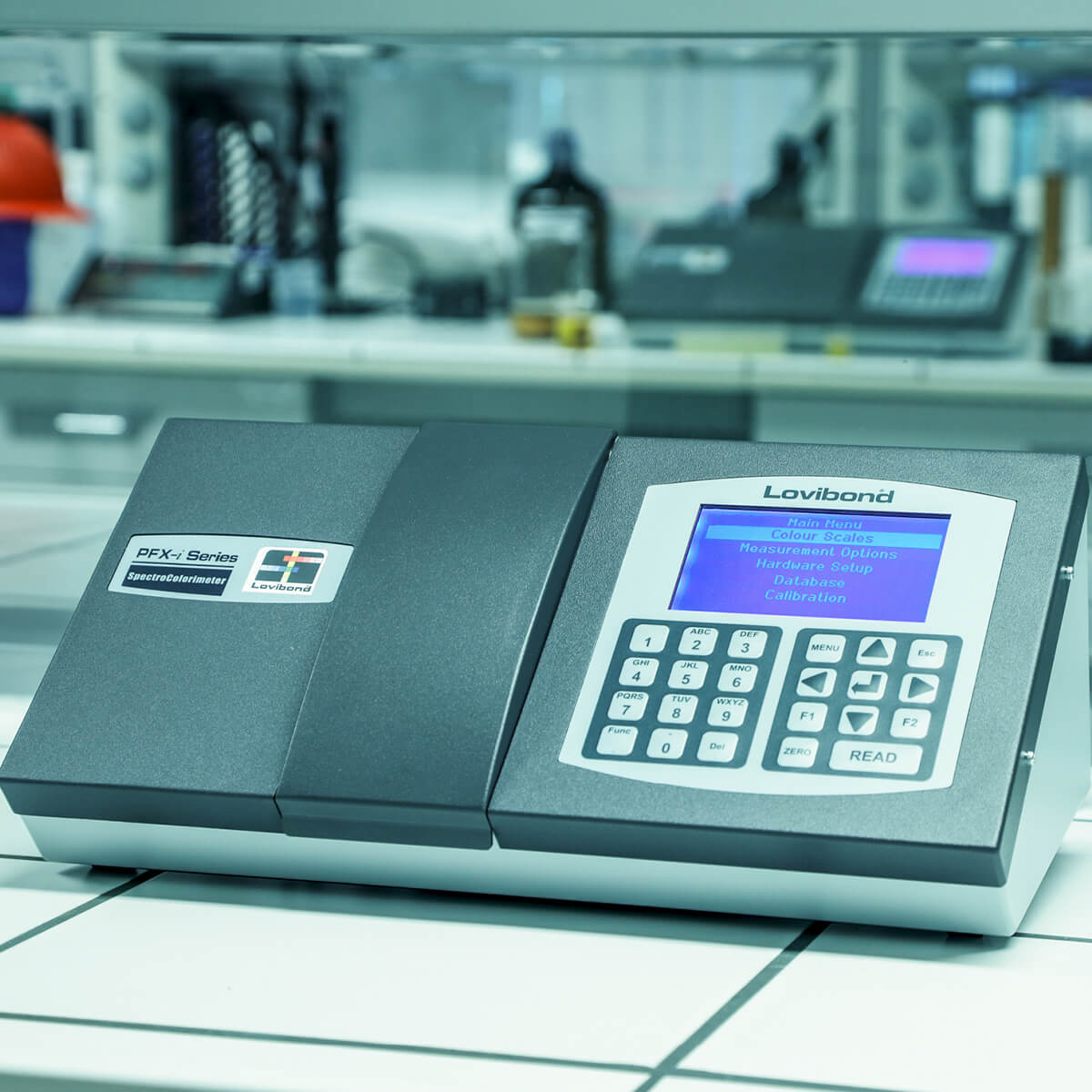

Lovibond PFXi-195/1 + RCMSi Pack

  • Integrated RCMSi Technology for Remote Calibration
  • Automatic and Non-subjective Colour Measurement
  • Consistent Data Compliant with International Standards
  • Very Rugged, Chemically Resistant, Steel Construction
Delivery Content
  • PFXi Series Instrument
  • External Power Supply
  • Set of 3 Power Leads (UK, European and United States)
  • USB and LAN Cable
  • Quick Start Guide
  • CD ROM (Containing Windows® Control Software and Manuals)
  • RCMSi Starter Pack
  • Certificate of Conformity
  • Accessory Box with 5 Volt Halogen Lamp, Conformance Filter, 1 x W600/OG/10 Cell, 1 x W600/OG/50 Cell

The PFXi series of spectrophotometric colorimeters introduces a unique concept in liquid colour control: RCMSi technology. You can benefit from the capability for remote calibration and servicing via the internet - saving the cost and time associated with servicing and guaranteeing compliance with standards.

The PFXi range is supplied with a full range of colour scales for specific markets including, but not limited to, Petroleum, Edible Oils, Pharmaceuticals, Brewing and Honey. Users can upgrade scales remotely at any time.

Sku: 1371951


Lovibond PFXi-195/1 + RCMSi Pack

Integrated RCMSi Technology for Remote Calibration
The PFXi series of spectrophotometric colorimeters introduces a unique concept in liquid colour control: RCMSi technology (Remote Calibration & Maintenance Service via internet). You can now benefit from the capability for remote calibration and servicing via the internet - eliminating any costs and time delays associated with servicing and guaranteeing compliance with standards.

Watch the RCMSi video to see how easy the procedure is.

Automatic and Non-subjective Colour Measurement
The PFXi range provides absolute results. Automatic instruments communicate in clear terms, accurately and reliably with no opportunity for human error or misjudgement.

Consistent Data Compliant with International Standards
The PFXi range automatically measures colour and displays results directly, either according to the traditional grading scales that have been wideley adopted as industry standards for colour assessment and control, or in terms of internationally recognised CIE values and spectral data.

Very Rugged, Chemically Resistant, Steel Construction
The robust steel construction enables you to use the PFXi even in the harshest of environments.

Easy Maintenance with Removable Sample Chamber
The instruments include a robust steel sample chamber which is easily removed so you can clean it or replace it should spillage occur.

Extensive and Flexible Choice of Colour Scales
You can choose from a selection of over 20 different, internationally recognised scales in a variety of combinations.

Remote Upgrade Facility
Uniquely, however, you do not need to make the choice of scales at point of purchase. The PFXi instruments are upgradeable in the field - so you can add a scale at a later date.

Calculation and Description of "Off-Hue" Status
This is a useful facility that enables you to reveal whether the sample colour is characteristic of the selected scale. Where appropriate, it includes a description of hue difference (eg. redder, greener), relative saturation (stronger or weaker) and an off-hue factor (a relative measure of the distance away in colour space of the sample colour from the "true" colour scale).

Supplied with Colour Control Software for Data Analysis
The software allows you to generate spectral and CIE diagrams as well as analyse spectral data. It also permits direct control of the instrument from the computer.

Conformance Standard, Cells and Spare Bulb Included
For regular conformance checking, certified colour reference standards are also available for routine calibration and verification of test data. Conformance filters are supplied with a Certificate of Conformity - giving you the assurance of their colour values and confirmation that they were manufactured under the control of The Tintometer Ltd's ISO 9001 quality system.

Output Conforming to GLP Including Date, Time, Sample & User ID
The adaptable software and design allow you to configure the PFXi-195 to your requirements. You can set the display language, program the instrument to only display the scales of interest and restrict access to the menu system.

Accommodates a Wide Range of Sample Cells and Tubes
As well as standard colorimetry cells, the PFXi-195 can be used with a range of tubes and standards, flow-through and disposable spectrophotometer cells.

Extensive range of accessories
A thermal printer, sample chamber, additional cells, replacement lamps and conformance filters represent some of the additional accessories you can obtain for the PFXi-195.

Techincal Data

Applicable Standard: ASTM D1209,ASTM D1544,ASTM D6166,ASTM E308,DIN 6162,ISO 6271

Colour Type: Transparent

Display: 240 x 128, back-lit graphic display, (white on blue)

Path Length: 0.1 - 50 mm

Measuring Geometrics: 0° - 180° Transmission

Interfaces: USB, RS 232,Ethernet

Detector: blue enhanced photodiode

Internal Storage : 100,000+ Messungen

Power Supply: Universal (90 - 240 VAC), via external power supply

Measuring Principle: 9 interference filters

Measurement Time: less than 30 seconds

Sample Chamber: max 50mm cells

Keypad: 23 key tactile membrane keypad; washable polyester with audible feedback

Instrument Housing: Fabricated steel with tough, textured paint finish

Bandwidth: 10 nm

Repeatability: ±0.0004 (CIE xy Chromaticity) on measurements of de-ionised water

Baseline Calibration: Single key press; fully automated

Illuminants : CIE Illuminant A, CIE Illuminant B, CIE Illuminant C, CIE Illuminant D65

Portability: Benchtop

Observer: 2°, 10°

Touchscreen: false

Compliance: CE, RoHS, WEEE

Languages User Interface: English, German, French, Italian, Portuguese, Spanish, Russian, Chinese, Japanese

Dimensions: 435 x 170 x 195 mm

Weight: 6.8 kg

Sku: 1371951
