Lovibond MD610 Photometer

Sale price£1,184.76

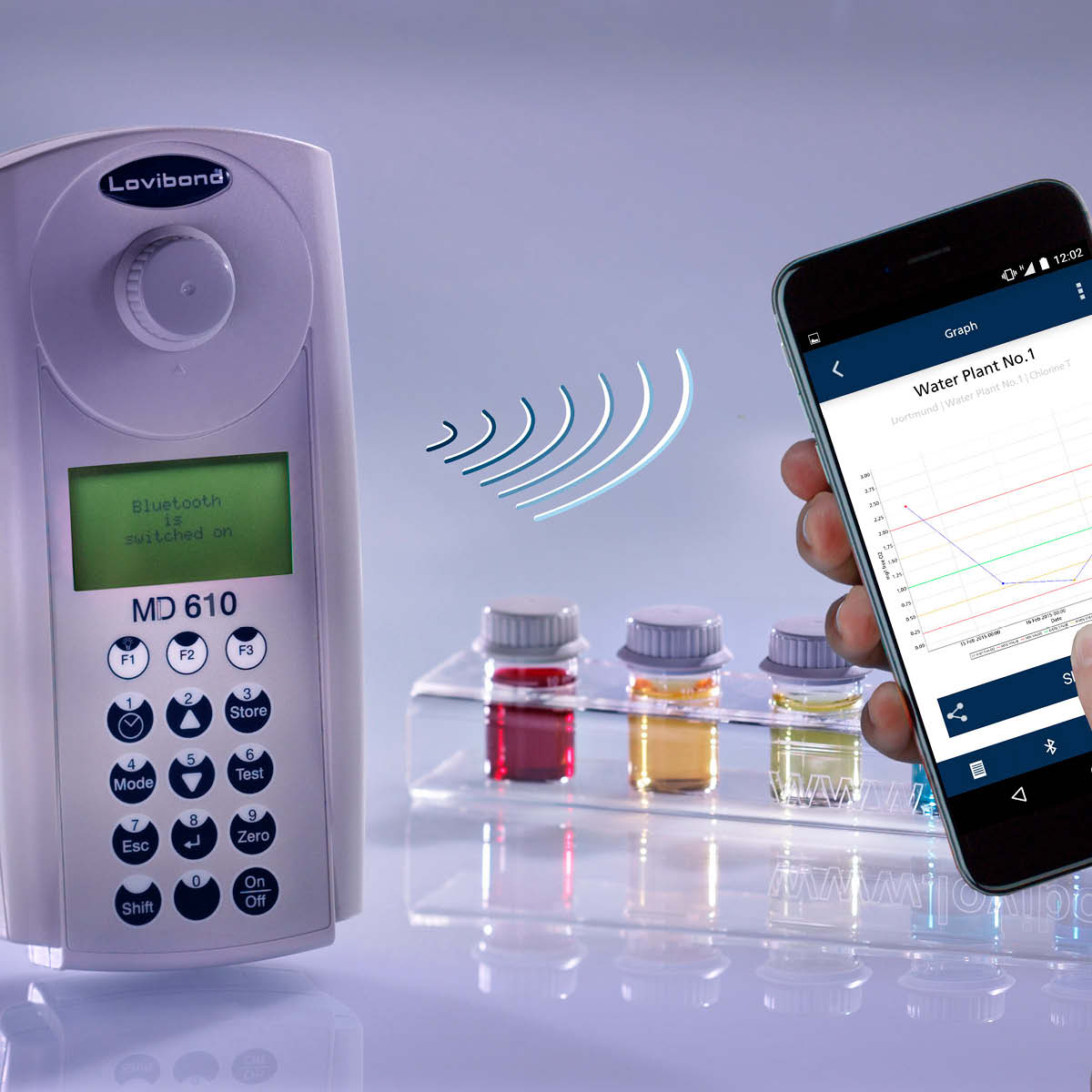

Now With Bluetooth*

The very popular Lovibond MD 600 series has been further enhanced. The new photometer enjoys the same popular, portable style of the MD 600 and incorporates all the same technology. Additionally, now, the MD Series includes a Bluetooth inferface for connection to smart phones and tablets to connect to iOS and AndroidTM app for data management and email delivery.

The AquaLX app, available free of charge, offers the possibility of transferring measurements to smart phones or tablets via Bluetooth. The data management then enables analysis and exort as a CSV file or graph via email. The app is available free of charge for iOS and AndroidTM

Download the AndroidTM versionhere.
Download the iOS version here.

The photometers combine the mobility of a portable photometer with the characteristics of a modern laboratory photometer. The waterproof design makes them ideal for a field instrument, and they have the functionality and features to be used as laboratory photometers.

The units cover all the important parameters for water analysis from Aluminium to Zinc and have over 130 methods pre-programmed. Compatible with Tablet, Liquid and Powder reagents and supplied with vial adaptors for 13mm and 16mm tubes, the photometers give flexibility of choice for many tests. In addition to the pre-programmed methods, up to 10 user defined calibration curves can be programmed if required.

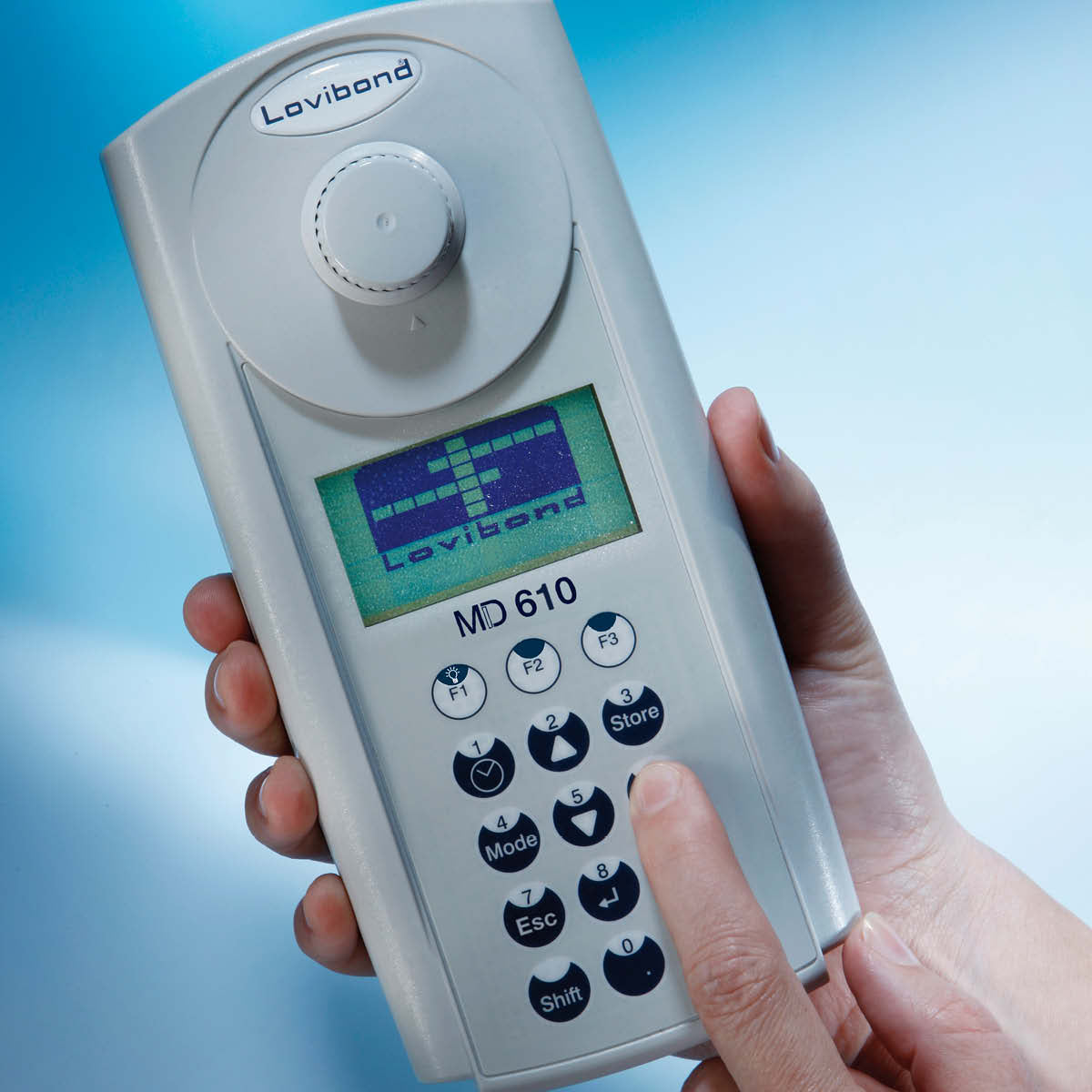

A large graphic display aids analysis by providing on screen method prompts, information regarding test measurement range and reagent type, and automatic countdown timers for accurate reaction periods. The internal memory is capable of storing up to 1000 results with date, time and sample ID. These results can be reviewed at any time, and can be transmitted to Smartphones or Tablets via the Bluetooth connection.

With 6 LED light sources, the photometers can measure at peak absorbances for many different methods, ensuring result accuracy and reliability for many applications.

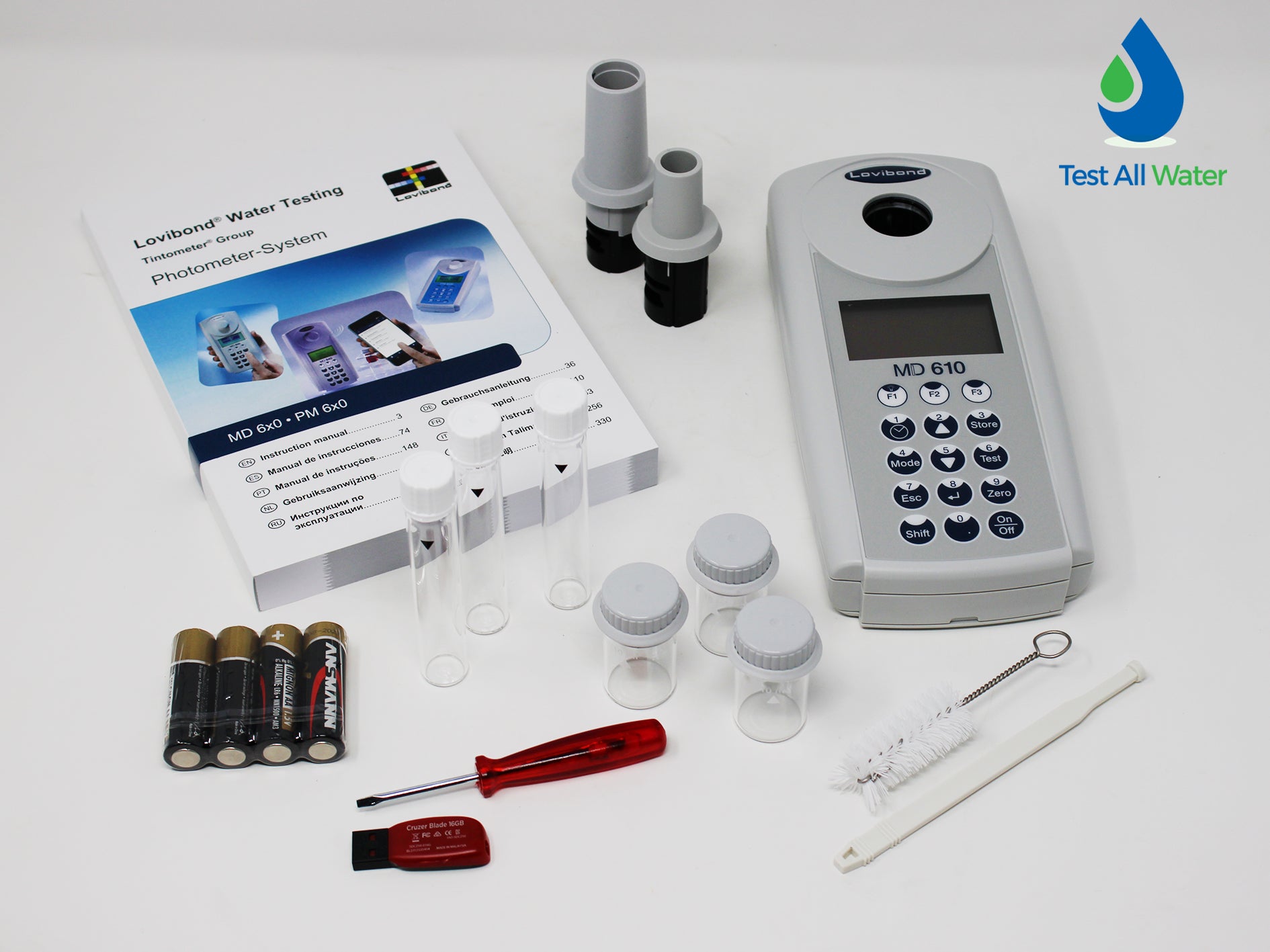

Delivery Content:

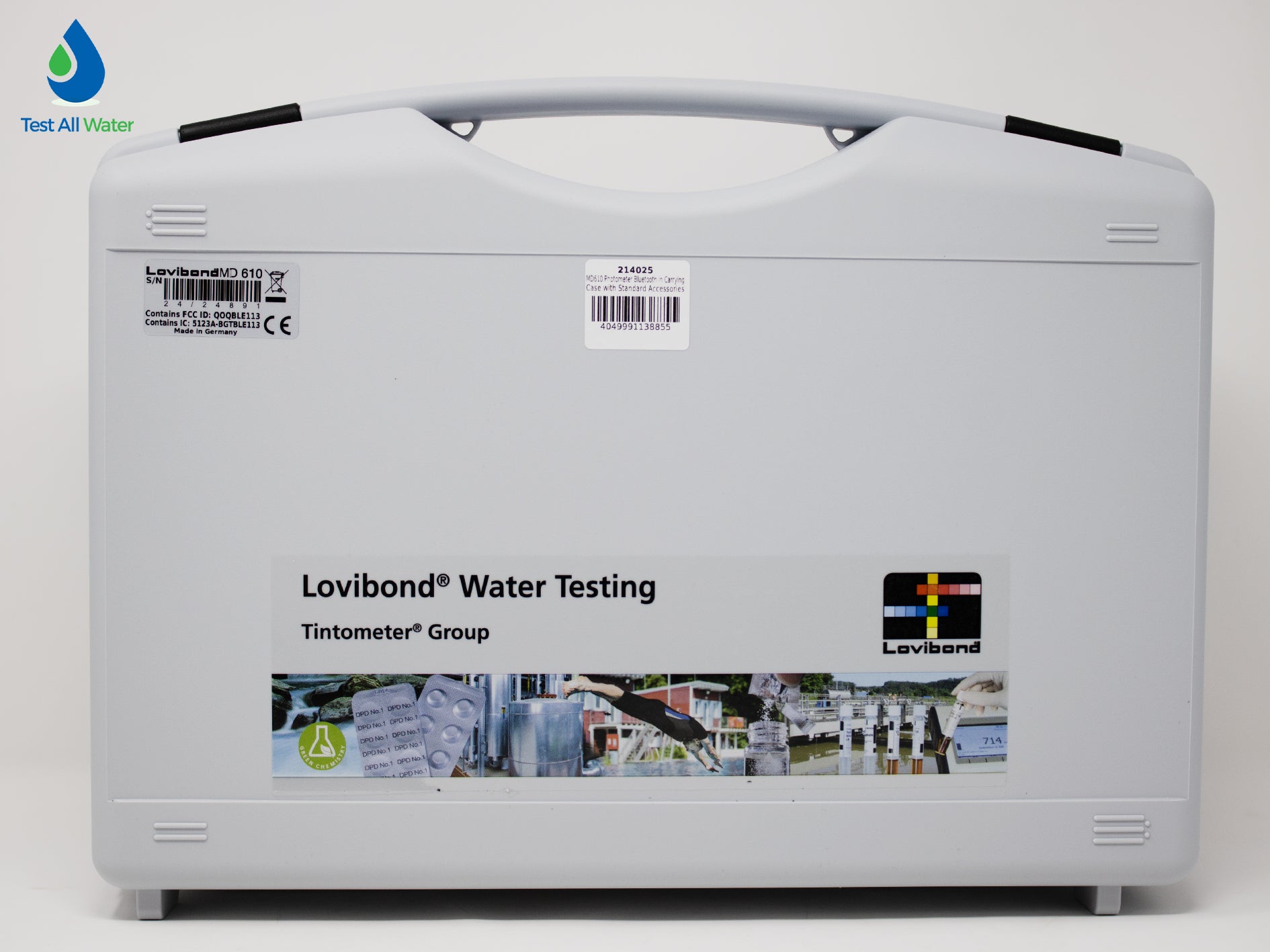

    • Instrument in carrying case
    • Batteries, 4 x AA
    • 3 x photometer vials, 24mm
    • 3 x photometer vials, 16mm
    • 2 x Vial adaptors for 16mm and 13mm tubes
    • Stirring / crushing rod
    • Vial cleaning brush
    • Instruction manual and guarantee sheet

Please note, for the Phosphonate test, a UV Lamp may be required. See Ancillaries Tab for details

Range

Testparameter Measuring Range Method No. Chemical Method
Alkalinity-m HR T 5 - 500 mg/L CaCO3 M31 Acid / Indicator
Alkalinity-m T 5 - 200 mg/L CaCO3 M30 Acid / Indicator
Alkalinity-p T 5 - 500 mg/L CaCO3 M35 Acid / Indicator
Aluminium PP 0.01 - 0.25 mg/L Al M50 Eriochrom Cyanine R
Aluminium T 0.01 - 0.3 mg/L Al M40 Eriochrom Cyanine R
Ammonia HR TT 1.0 - 50 mg/L N M66 Salicylate
Ammonia LR TT 0.02 - 2.5 mg/L N M65 Salicylate
Ammonia PP 0.01 - 0.8 mg/L N M62 Salicylate
Ammonia T 0.02 - 1 mg/L N M60 Indophenole Blue
Bromine PP 0.05 - 4.5 mg/L Br2 M81 DPD
Bromine T 0.05 - 13 mg/L Br2 M80 DPD

Chloramine (M) PP

0.02 - 4.5 M63 Indophenole method

Chloride L (B)

0.5 - 20 mg/L Cl- M92 Mercury Thiocyanate / Iron Nitrate
Chloride T 0.5 - 25 mg/L Cl- M90 Silver Nitrate / Turbidity

Chlorine (free) and Monochloramine

0.02 - 4.50 mg/L Cl2 M64 Indophenole method
Chlorine dioxide PP 0.04 - 3.8 mg/L ClO2 M122 DPD
Chlorine dioxide T 0.02 - 11 mg/L ClO2 M120 DPD / Glycine

Chlorine HR 2 PP

0.1 - 10 mg/L Cl2 M112 DPD
Chlorine HR PP 0.1 - 8 mg/L Cl2 M111 DPD
Chlorine HR T 0.1 - 10 mg/L Cl2 M103 DPD
Chlorine L 0.02 - 4.0 mg/L Cl2 M101 DPD
Chlorine MR PP 0.02 - 3.5 mg/L Cl2 M113 DPD
Chlorine PP 0.02 - 2 mg/L Cl2 M110 DPD
Chlorine T 0.01 - 6.0 mg/L Cl2 M100 DPD
Chlorite T 0.03 - 2.5 mg/L ClO2 - M117 DPD
Chromium PP 0.02 - 2 mg/L Cr M125 Diphenylcarbazide
COD HR TT 200 - 15000 mg/L COD M132 Dichromate / H2SO4
COD LMR TT 15 - 300 mg/L COD M133 Dichromate / H2SO4
COD LR TT 3 - 150 mg/L COD M130 Dichromate / H2SO4
COD MR TT 20 - 1500 mg/L COD M131 Dichromate / H2SO4
Copper L 0.05 - 4 mg/L Cu M151 Bicinchoninate
Copper PP 0.05 - 5 mg/L Cu M153 Bicinchoninate
Copper T 0.05 - 5 mg/L Cu M150 Biquinoline
CyA HR T 10 - 200 mg/L CyA M161 Melamine
Cyanide L 0.01 - 0.5 mg/L CN- M157 Pyridine-barbituric Acid
CyA T 10 - 160 mg/L CyA M160 Melamine
DEHA PP 0.02 - 0.5 mg/L DEHA M167 PPST
DEHA T (L) 0.02 - 0.5 mg/L DEHA M165 PPST

Fluoride 2 L

0.1 - 2 mg/L F- M172 SPADNS
Fluoride L 0.05 - 2 mg/L F- M170 SPADNS
H2O2 HR L 40 - 500 mg/L H2O2 M214 Titanium Tetrachloride / Acid
H2O2 LR L 1 - 50 mg/L H2O2 M213 Titanium Tetrachloride / Acid
H2O2 T 0.03 - 3 mg/L H2O2 M210 DPD / Catalyst

Hardness Ca and Mg L

0.05 - 4 mg/L CaCO3 M199 Calmagite

Hardness Ca and Mg MR TT

10 - 360 mg/L CaCO3 M198 Calmagite
Hardness Calcium (B) T 20 - 500 mg/L CaCO3 M191 Murexide
Hardness Calcium (B) T 50 - 900 mg/L CaCO3 M190 Murexide
Hardness total HR T 20 - 500 mg/L CaCO3 M201 Metallphthaleine
Hardness total T 2 - 50 mg/L CaCO3 M200 Metallphthaleine
Hazen 24 10 - 500 mg/L Pt M204 (APHA) Platinum Cobalt Standard Method
Hydrazine L 0.01 - 0.6 mg/L N2H4 M206 Dimethylaminobenzaldehyde
Hydrazine P 0.05 - 0.5 mg/L N2H4 M205 Dimethylaminobenzaldehyde
Hypochlorite T 0.2 - 16 % NaOCl M212 Potassium Iodide
Iron (TPTZ) PP 0.02 - 1.8 mg/L Fe M223 TPTZ
Iron HR L 0.1 - 10 mg/L Fe M227 Thioglycolate
Iron in Mo PP (224) 0.01 - 1.8 mg/L Fe M224 TPTZ
Iron LR L (A) 0.03 - 2 mg/L Fe M225 Ferrozine / Thioglycolate
Iron LR L (B) 0.03 - 2 mg/L Fe M226 Ferrozine / Thioglycolate
Iron PP 0.02 - 3 mg/L Fe M222 1,10-Phenanthroline
Iron T 0.02 - 1 mg/L Fe M220 Ferrozine / Thioglycolate
KS4.3 T 0.1 - 4 mmol/L KS4.3 M20 Acid / Indicator
lodine T 0.05 - 3.6 mg/L I M215 DPD
Manganese HR PP 0.1 - 18 mg/L Mn M243 Periodate Oxidation
Manganese L 0.05 - 5 mg/L Mn M245 Formaldoxime
Manganese LR PP 0.01 - 0.7 mg/L Mn M242 PAN
Manganese T 0.2 - 4 mg/L Mn M240 Formaldoxime
Molybdate HR L 1 - 100 mg/L MoO4 M254 Thioglycolate
Molybdate HR PP 0.3 - 40 mg/L Mo M252 Mercaptoacetic Acid
Molybdate LR PP 0.03 - 3 mg/L Mo M251 Ternary Complex
Molybdate T 1 - 50 mg/L MoO4 M250 Thioglycolate
Nickel L 0.2 - 7 mg/L Ni M256 Dimethylglyoxime

Nitrate MR PP

1 - 30 mg/L NO3-N M261 Zinc Reduction
Nitrate T 0.08 - 1 mg/L N M260 Zinc Reduction / NED
Nitrate TT 1 - 30 mg/L N M265 Chromotropic Acid

Nitrite HR PP

2 - 250 mg/L NO2 - M273 Ferrous Sulfate Method
Nitrite HR TT 0.3 - 3 mg/L N M276 Sulfanilic / Naphthylamine
Nitrite LR TT 0.03 - 0.6 mg/L N M275 Sulfanilic / Naphthylamine
Nitrite PP 0.01 - 0.3 mg/L N M272 Diazotation
Nitrite T 0.01 - 0.5 mg/L N M270 N-(1-Naphthyl)-ethylendiamine

Nitrite VHR L

25 - 2500 mg/L NO2 - M271 Ferrous Sulfate Method
Oxygen active T 0.1 - 10 mg/L O2 M290 DPD
Oxygen dissolved C 10 - 800 µg/L O2 M292 Rhodazine D TM
Ozone PP 0.015 - 1.2 mg/L O3 M301 DPD / Glycine
Ozone T 0.02 - 2 mg/L O3 M300 DPD / Glycine
Phenol T 0.1 - 5 mg/L C6H5OH M315 4-Aminoantipyrine
PHMB T 2 - 60 mg/L PHMB M70 Buffer / Indicator
Phosphate h. TT 0.02 - 1.6 mg/L P M325 Phosphomolybdenum Blue
Phosphate HR C 1.6 - 13 mg/L P M327 Vanadomolybdate
Phosphate HR L 5 - 80 mg/L PO4 M335 Vanadomolybdate
Phosphate HR T 0.33 - 26 mg/L P M321 Vanadomolybdate
Phosphate HR TT 1 - 20 mg/L P M322 Vanadomolybdate
Phosphate LR C 0.02 - 1.6 mg/L P M328 Stannous Chloride
Phosphate LR L 0.1 - 10 mg/L PO4 M334 Phosphomolybic Acid / Ascorbic Acid
Phosphate LR T 0.02 - 1.3 mg/L P M320 Phosphomolybdenum Blue
Phosphate PP 0.02 - 0.8 mg/L P M323 Phosphomolybdenum Blue
Phosphate t. TT 0.02 - 1.1 mg/L P M326 Phosphomolybdenum Blue
Phosphate TT 0.02 - 1.63 mg/L P M324 Phosphomolybdenum Blue
Phosphonate PP 0.02 - 125 mg/L PO4 M316 Persulfate UV Oxidation Method
pH-value HR T 8.0 - 9.6 pH M332 Thymol Blue
pH value L 6.5 - 8.4 pH M331 Phenol Red
pH-value LR T 5.2 - 6.8 pH M329 Bromocresolpurple
pH-value T 6.5 - 8.4 pH M330 Phenol Red
Polyacrylate L 1 - 30 mg/L Polyacryl M338 Turbidity
Potassium T 0.7 - 16 mg/L K M340 Tetraphenylborat Turbidity
Silicate HR PP 1 - 90 mg/L SiO2 M352 Silicomolybdate
Silicate L 0.1 - 8 mg/L SiO2 M353 Heteropolyblue
Silicate LR PP 0.1 - 1.6 mg/L SiO2 M351 Heteropolyblue

Silicate T

0.05 - 4 mg/L SiO2 M350 Silicomolybdenum Blue
Sulphate HR PP 50 - 1000 M361 Bariumsulphate Turbidity
Sulphate PP 5 - 100 mg/L SO4 2- M360 Bariumsulphate Turbidity
Sulphate T 5 - 100 mg/L SO4 2- M355 Bariumsulphate Turbidity

Sulphide L

15 - 1400 µg/L S2- M366 Methylene Blue
Sulphide T 0.04 - 0.5 mg/L S2- M365 DPD / Catalyst
Sulphite T 0.1 - 5 mg/L SO3 M370 DTNB
Surfactants M. (anion.) TT 0.05 - 2 mg/L SDSA M376 Methylene Blue
Surfactants M. (cation.) TT 0.05 - 1.5 mg/L CTAB M378 Disulphine Blue
Surfactants M. (not ionic) TT 0.1 - 7.5 mg/L Triton X-100 M377 TBPE
Suspended solids 24 10 - 750 mg/L TSS M384 Turbidity / Attenuated Radiation Method

Tannin L

0.5 - 20 mg/L Tannin M389
TN HR TT 5 - 150 mg/L N M281 Persulphate Digestion
TN LR TT 0.5 - 25 mg/L N M280 Persulphate Digestion
TOC HR M. TT 50 - 800 mg/L TOC M381 H2SO4 / Persulphate / Indicator
TOC LR M. TT 5 - 80 mg/L TOC M380 H2SO4 / Persulphate / Indicator
Triazole PP 1 - 16 mg/L Benzotriazole or Tolyltriazole M388 Catalyzed UV Digestion
Turbidity 24 10 - 1000 FAU M386 Attenuated Radiation Method
Urea T 0.1 - 2.5 mg/L Urea M390 Indophenol / Urease
Zinc L 0.1 - 2.5 mg/L Zn M405 Zincon / EDTA
Zinc T 0.02 - 1 mg/L Zn M400 Zincon



Specification


Display





Graphic Display





Interfaces





Infra red interface for test data transfer (via IRiM)
RJ45 socket for internal updates





Optics





LEDs, Interference Filters (IF) and photo sensor in transparent sample chamber.
Wavelength specifications of interference filters:
430 nm = 5 nm
530 nm = 5 nm
560 nm = 5 nm
580 nm = 5 nm
610 nm = 6 nm
660 nm = 5 nm





Wavelength Accuracy





1nm





Photometric Accuracy





2% full scale (at 20 C to 25 C)





Photometric Resolution





0.005 A





Operation





Acid and solvent resistant touch sensitive keypad; audible feedback via integrated beeper





Power Supply





4 x AA batteries; operating time 26 hours continuous or 3500 tests





Auto Off





approx 20 minutes after last keypress with audible signal





Dimensions





Unit 210 x 95 x 45 mm
Carry case 395 x 295 x 106 mm





Unit Weight





450g





Ambient Conditions





5-40 C, 30-90% rel humidity (non condensing)





Memory Capacity





1000 data sets with time, date, sample ID





Conformity





CE

Replacement Product Codes


Stock Code


Reagent


Test


Qty


513210BT


Alkalinity Total M Photometer Tablets


Alkalinity Total M


100


517612BT


Ammonia No1/No2 Tablets Combi Pack 250 each


Ammonia


250


535500


Ammonia Vario Powder Reagent Set


Ammonia


100


535600


Ammonia LR Vario Tube Test Set


Ammonia


50


535650


Ammonia HR Vario Tube Test Set


Ammonia


50


513230BT


Alkalinity P Photometer Tablets


Alkalinity Total M


100


517602BT


Aluminium No1/No2 tablets combi pack, 250 each


Aluminium


250


535000


Aluminium Vario Powder Set


Aluminium


100



517742BT


Chloride T1/T2 Tablets Combi Pack, 250 each


Chloride


250


56R018490


Chloride Photometer Liquid Reagent Pack


Chloride


65ml


537300


Persulphate Powder Reagent for Chromium


Chromium


100


537310


Chromium Hexavalent Vario Powders


Chromium


100


2420720


COD Vario Vials 0-150 mg/l, 16mm


COD


25


2420710


COD Vario Vials 0-150 mg/l, Mercury Free, 16mm


COD


25


2420721


COD Vario Vials 0-1500 mg/l, 16mm


COD


25


2420711


COD Vario Vials 0-1500 mg/l, Mercury Free, 16mm


COD


25


2420722


COD Vario Vials 0-15000 mg/l, 16mm


COD


25


2420712


COD Vario Vials 0-15000 mg/l, Mercury Free, 16mm


COD


25


517692BT


Copper No1/No2 Tablets Combi Pack 250 each


Copper


250


56L024030


Coppercol Liquid Reagent 1


Copper


30ml


56L024130


Coppercol Liquid Reagent 2


Copper


30ml


56L024210


Coppercol Powder Reagent 3


Copper


10g


513560BT


Copper No 2 Tablets


Copper


100


530300


Copper Vario Cu 1 10ml Powder Pack


Copper


100


2418875


Cyanide 11/12/13 Reagent Set


Cyanide


200


511370BT


Cyanuric Acid CyA-Test Tablets


Cyanuric Acid


100


513220BT


DEHA Tablets


DEHA


100


461181


DEHA Solution


DEHA


100ml


536000


DEHA Vario Powder, Liquid Reagent Set


DEHA


200


467481


SPADNS Liquid Reagent


Fluoride


250ml


517762BT


Calcium Hardness Calcio No1/No2 Tablets Combi Pack


Calcium Hardness


250


515660BT


Hardcheck P photometer tablets, total hardness


Hardness


100


462910


Hydrazine Test Powder, with spoon


Hydrazine


30g


531200


Hydrazine Vario Hydra 2 Liquid Reagent


Hydrazine


100ml


380470


Hydrazine Vacu-vial reagent set


Hydrazine


30 tests


511050BT


DPD No 1 Tablets


Iodine


100


515370BT


Iron Low Range Tablets


Iron


100


515420BT


Iron (II) Low Range Tablets


Iron


100


530560


Iron Vario Ferro F10 Powder Reagents


Iron


100


530550


Iron Vario TPTZ F10 Powder Reagents


Iron


100


535090


Manganese Vario LR Powder Liquid Reagent Set


Manganese


100


530640


Rochelle Salt Vario Solution


Manganese


30ml


535100


Manganese Vario HR Powder Reagent Set


Manganese


100


56L026530


Manganese Liquid Reagent A


Manganese


30ml


56L026630


Manganese Liquid Reagent B


Manganese


30ml


56L030430


Manganese Liquid Reagent C


Manganese


30ml


517632BT


Molybdate No1/No2 Tablets, Combi Pack 250 each


Molybdate


250


535450


Molybdate Low Range Vario Powder Liquid Reagent Set


Molybdate


100 tests


535300


Molybdenum Vario HR1/HR2/HR3 Powder Reagent Set


Molybdate


100


56R023790


Molybdate HR Liquid Reagent Pack


Molybdate


100


515630BT


Nickel No1 Tablets


Nickel


100


515640BT


Nickel No2 Tablets


Nickel


100


465230


Nitrate Test Powder


Nitrate


100 tests


502810


Nitrate Test Tablets


Nitrate


100


512310


Nitrite LR Tablets


Nitrite


100


535580


Nitrate Vario Tube Test Reagent Set


Nitrate


50


512310


Nitrite LR Tablets


Nitrate


100


530980


Nitrite Vario Nitri 3 Powder Reagents


Nitrite


100


535550


Nitrogen Total LR Vario Tube Test Reagent Set


Nitrogen Total


50


535560


Nitrogen Total HR Vario Tube Test Reagent Set


Nitrogen Total


50


511220BT


DPD No 4 Tablets


Active Oxygen


100


380450


Dissolved Oxygen Vacu Vial Reagent Set


Dissolved Oxygen


30


511050BT


DPD No 1 Tablets


Ozone


100


511080BT


DPD No 3 Tablets


Ozone


100


512170BT


DPD Glycine Tablets (for Cl separation)


Ozone


100


516100BT


PHMB Photometer Tablets


PHMB


100


517651BT


Phosphate LR No1 / No2 Combi Pack, 100 of each tablet


Ortho-phosphate


100


517661


Phosphate HR No1/No2 Tablets, Combi Pack 100 each


Ortho-phosphate


100


531550


Phosphate Vario Phos3 Powder Reagents


Ortho-phosphate


100


535200


Phosphate Vario Ortho-phosphate Tube Test Set


Ortho-phosphate


50




535250


Phosphate Vario Acid Hydrolyzable/Total Phosphate Tube Test Set


Phosphate Total


50


535210


Phosphate Vario Total Phosphate Tube Test Set


Phosphate Total


50


56R019090


Phosphate HR Liquid Reagent Set


Phosphate Total


100


535220


Phosphonate Vario Powder Reagent Set


Phosphonate


100


515700


Bromocresol Purple Photometer Tablets


pH Value


100


511770BT


Phenol Red Photometer Tablets


pH Value


100


515710


Thymol Blue Photometer Tablets


pH Value


100


471040


Phenol Red Liquid Solution


pH Value


15ml


56R019165


Polyacrylate Liquid Reagent Set


Polyacrylate


100


515670


Potassium T Tablets


Potassium


100


517671


Silica No1/No2 Tablet, Combi Pack 100 each


Silica


100


535690


Silica LR Vario Powder Liquid Reagent Set


Silica


100


535700


Silica HR Vario Powder Liquid Reagent Set


Silica


100


56R023896


Silica Liquid Reagent Set


Silica


80


517721BT


Chlorine HR / Acidifying GP Combi Pack, 100 of each Tablet


Sodium Hypochlorite


100


515450BT


Sulphate Turbidity Tablets


Sulphate


100


532160


Sulphate Vario Sulpha 4 Powder Packs, 10ml


Sulphate


100


56R019290


Sulphide No1 / No2 Tablet Combi Pack


Sulphide


100


518020


Sulphite LR Tablets


Sulphite


100


532200


Benzotriazole Powder Reagent Set


Triazoles


100


459300


Urea Reagent 1


Urea


15ml


459400


Urea Reagent 2


Urea


10ml


512620BT


Copper/Zinc LR Tablets


Zinc


100


512390BT


EDTA Tablets


Zinc


100


56R019490


Zinc Reagent Set


Zinc


100


513240BT


Alkalinity M HR Photometer Tablets


Alkalinity Total M


100


517721BT


Chlorine HR / Acidifying GP Combi Pack, 100 of each Tablet


Chlorine (total)


100


424991


Hydrogen Peroxide Reagent Solution


Hydrogen Peroxide


15 ml


56R018990


Iron LR Liquid Reagent Set


Iron


100


56R023590


Iron HR 2 Liquid Reagent Set


Iron


100


56R023765


Phosphate LR Liquid Reagent Set


Phosphate Total


100


513210BT


Alkalinity Total M Photometer Tablets


Acid Demand


100


511050BT


DPD No 1 Tablets


Bromine


100


511050BT


DPD No 1 Tablets


Chlorine


100


511080BT


DPD No 3 Tablets


Chlorine


100


530100


Chlorine DPD Free Vario Powders, F10


Chlorine


100


530120


Chlorine DPD Total Vario Powders, F10


Chlorine


100


512170BT


DPD Glycine Tablets (for Cl separation)


Chlorine Dioxide


100


511050BT


DPD No 1 Tablets


Chlorine Dioxide


100


517612BT


Ammonia No1/No2 Tablets Combi Pack 250 each


Urea


250


517622BT


Manganese LR1/LR2 Tablets Combi Pack, 250 each


Manganese


250

 Ancilliary Items:


Stock Code


Name




197629


Photometer Cell 24mm with lid, pack of 5


197665


Photometer Cell 16mm with lid, pack of 10


364120


Crushing / Stirring Rod, pack of 10


380030


Vial Cleaning Brush, long


215640


Verification Standard Kit, MaxiDirect / MD 600


366110


Syringe, Plastic 1ml


366070


Syringe, Plastic 2ml


366120


Syringe, Plastic 5ml


369090


Syringe, Plastic, 10ml


385130


Dilution / Shaker Tube 100ml


400744


UV Lamp (220V)


400745


UV Lamp (110V)

Frequently Asked Questions

Clear answers to help you choose the right water testing solution with confidence
