Lovibond MD 200 Pool Control 6 in 1

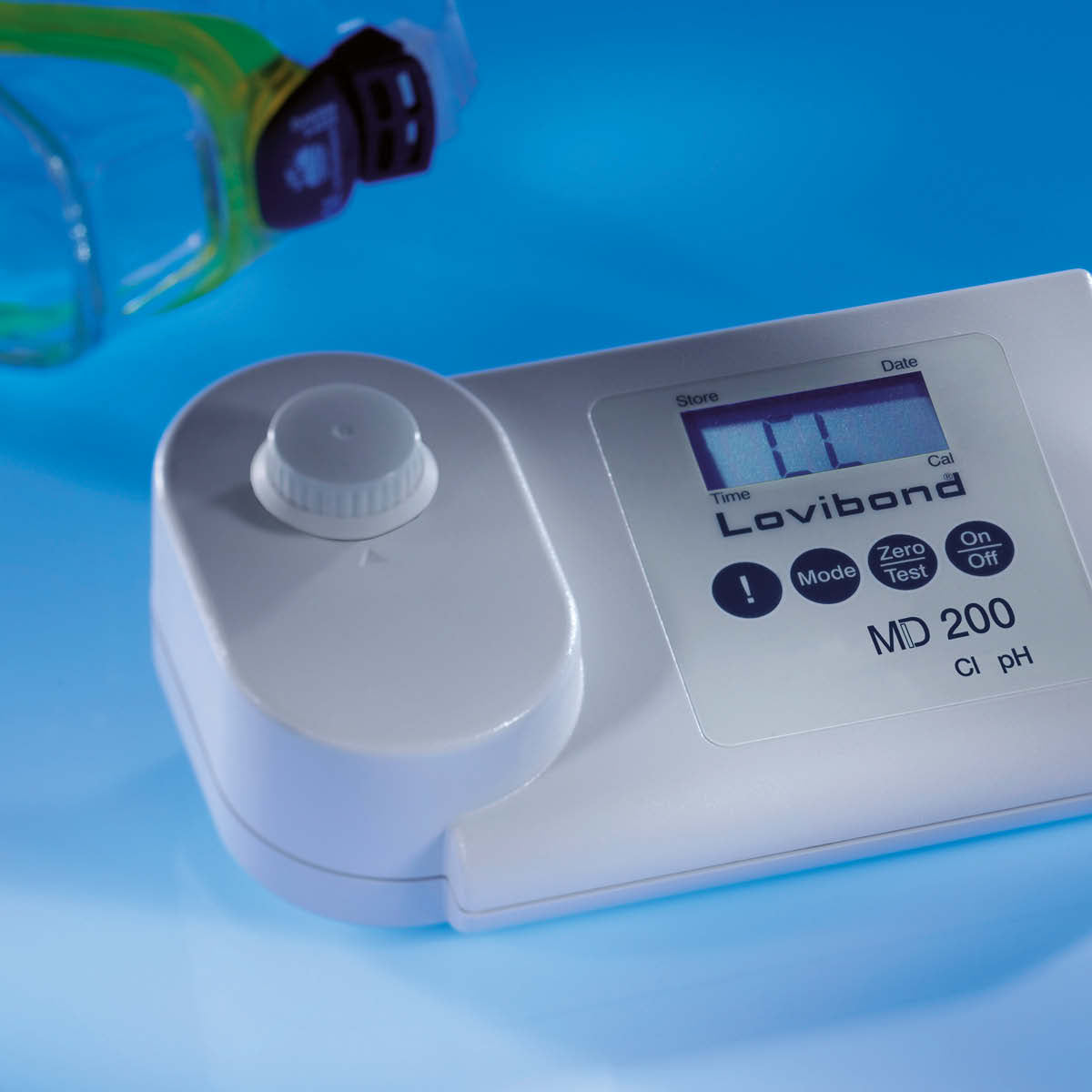

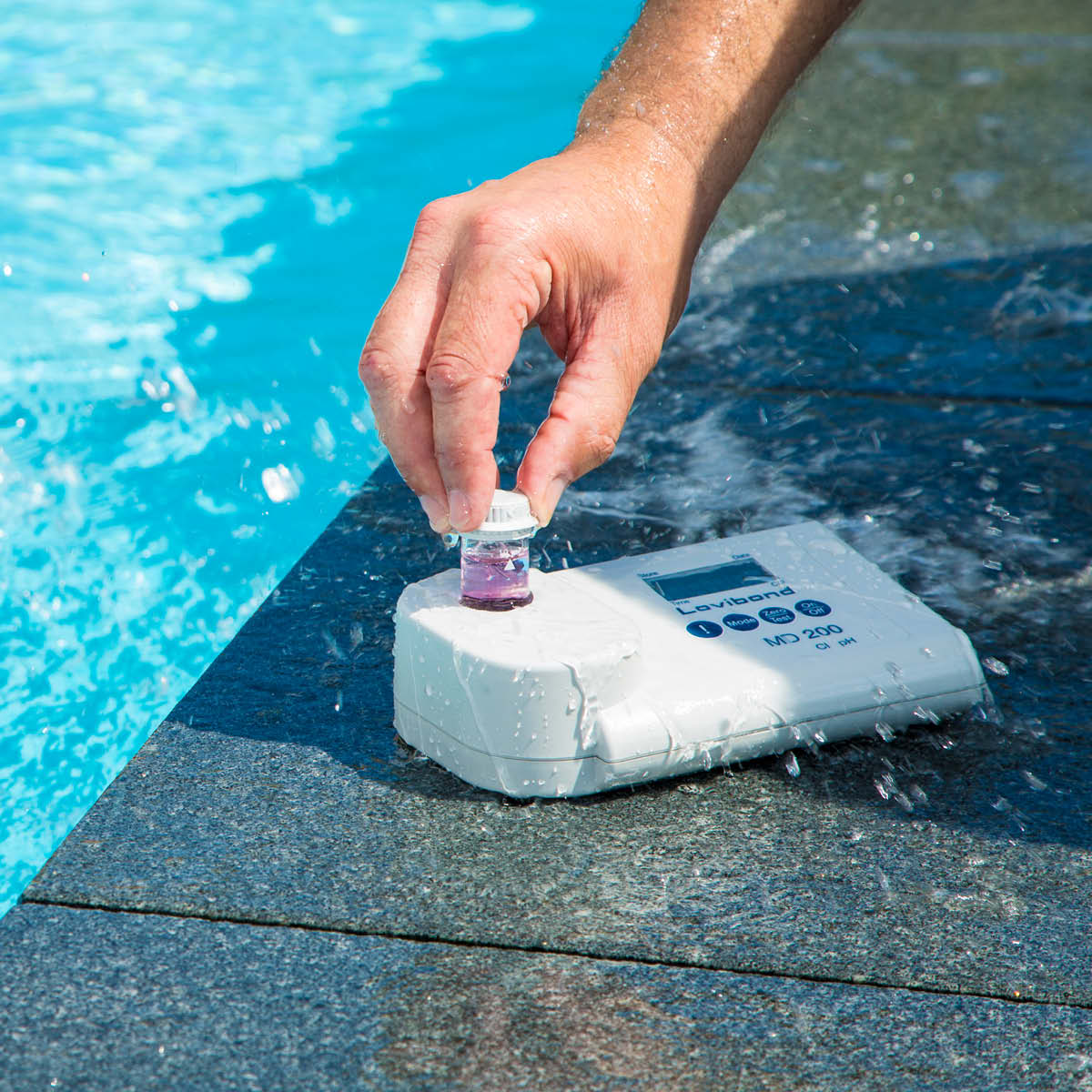

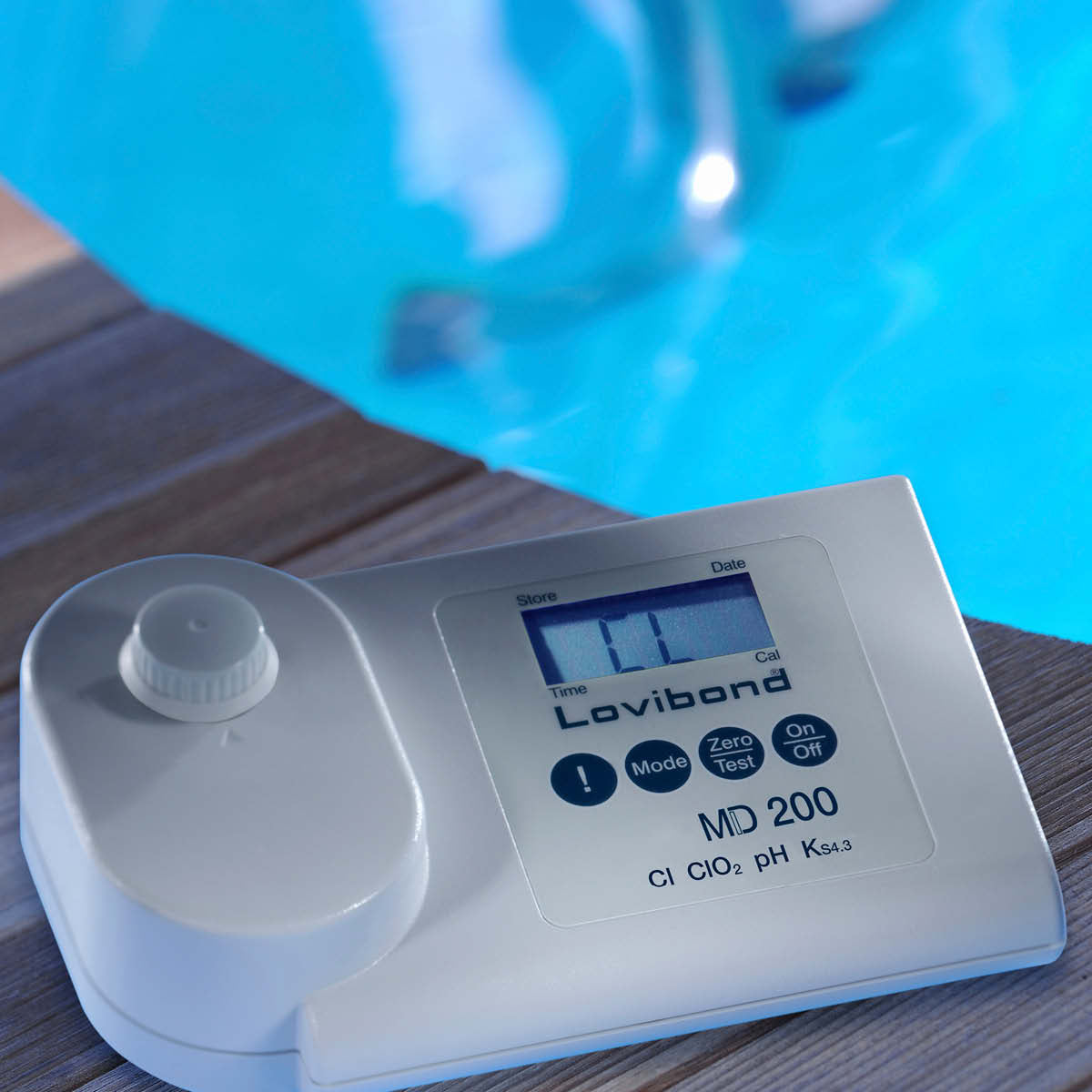

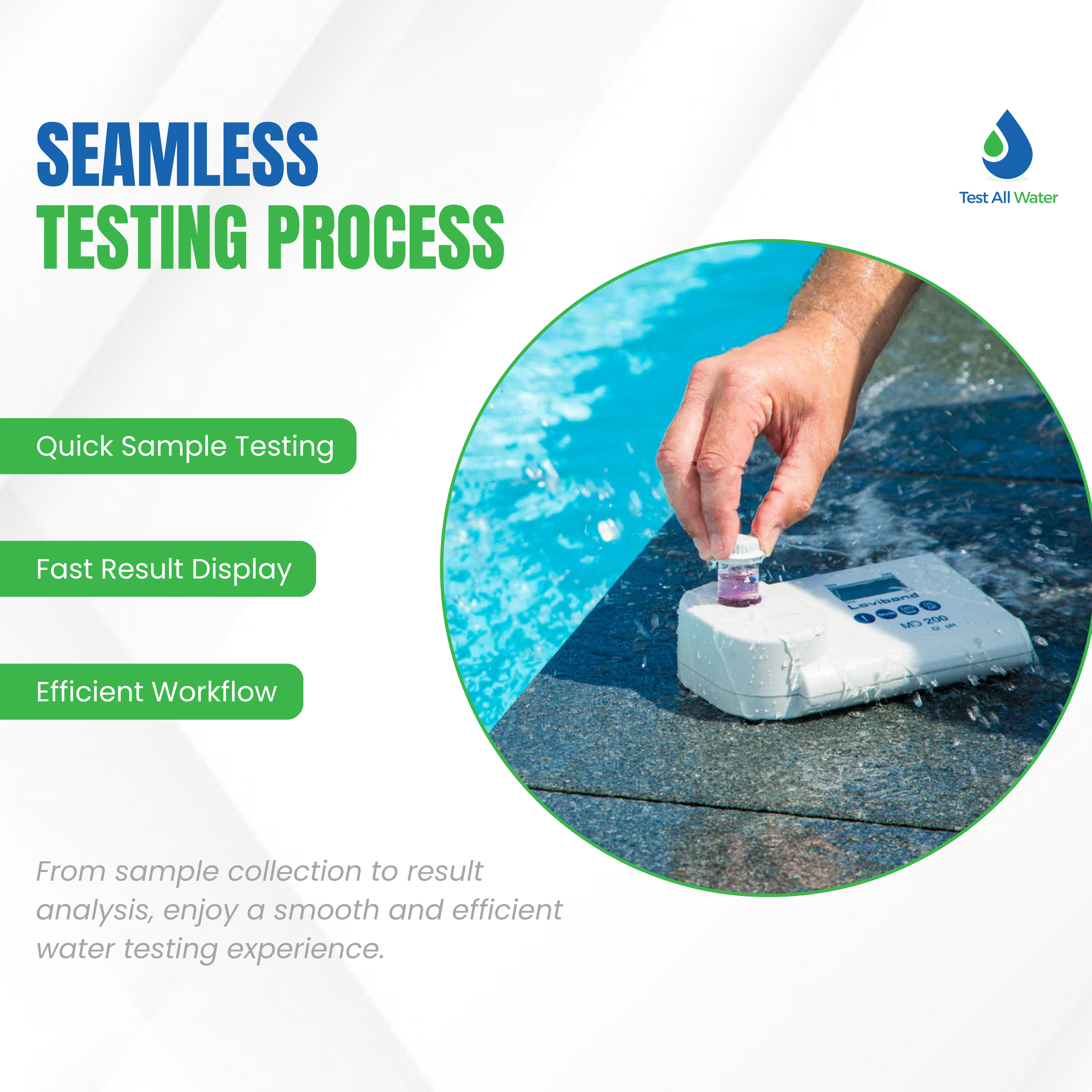

The MD 200 pool photometers are robust, portable meters designed to be used anywhere from plant room to pool side.

With a waterproof (IP68) housing and high precision interference filters and LEDs, the meters produce accurate reliable results for confident pool management.

A backlit screen, 4 button keypad, scroll memory function which saves the last used parameter, and one time zero for switching between methods make the unit easy to use and ideal for testing in any environment.

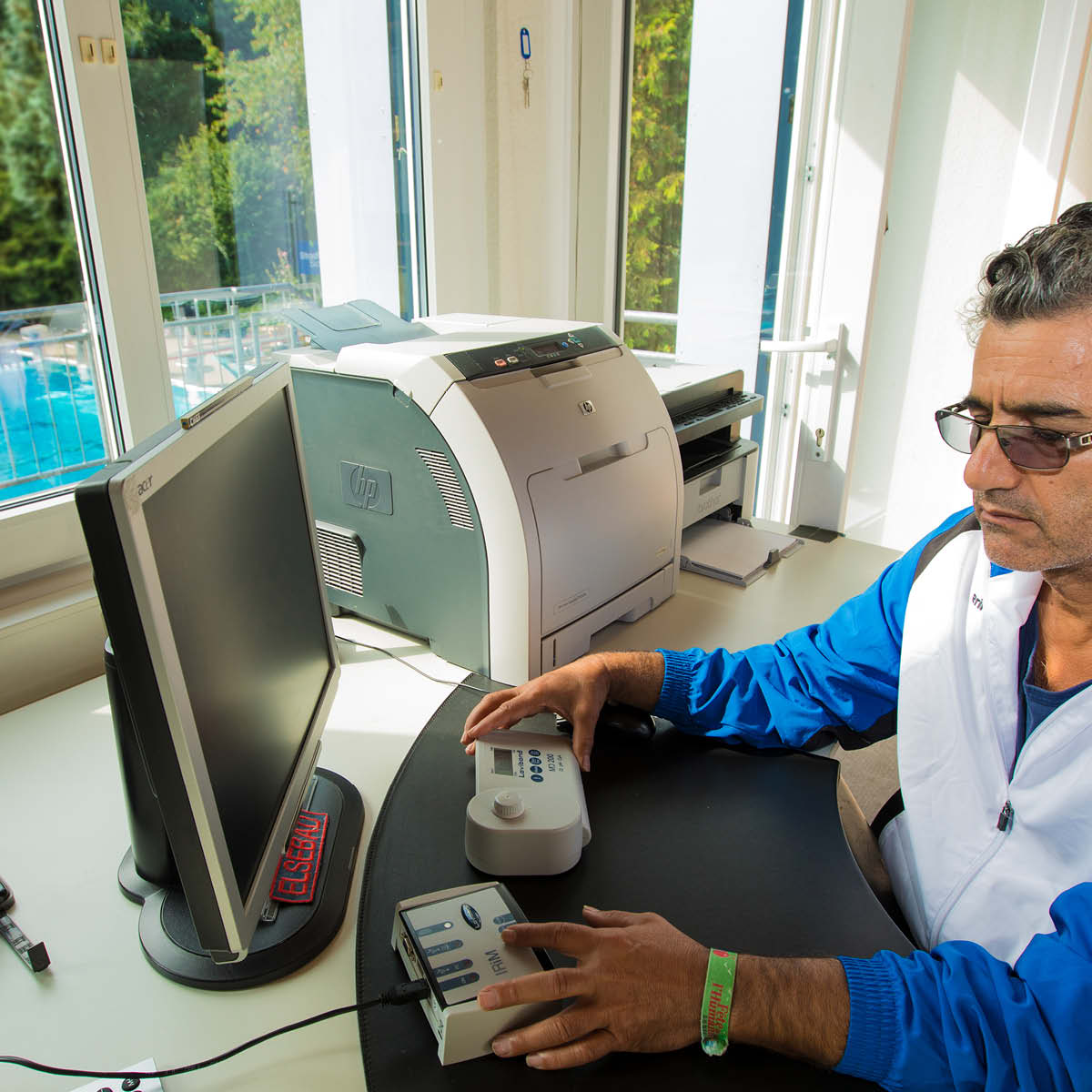

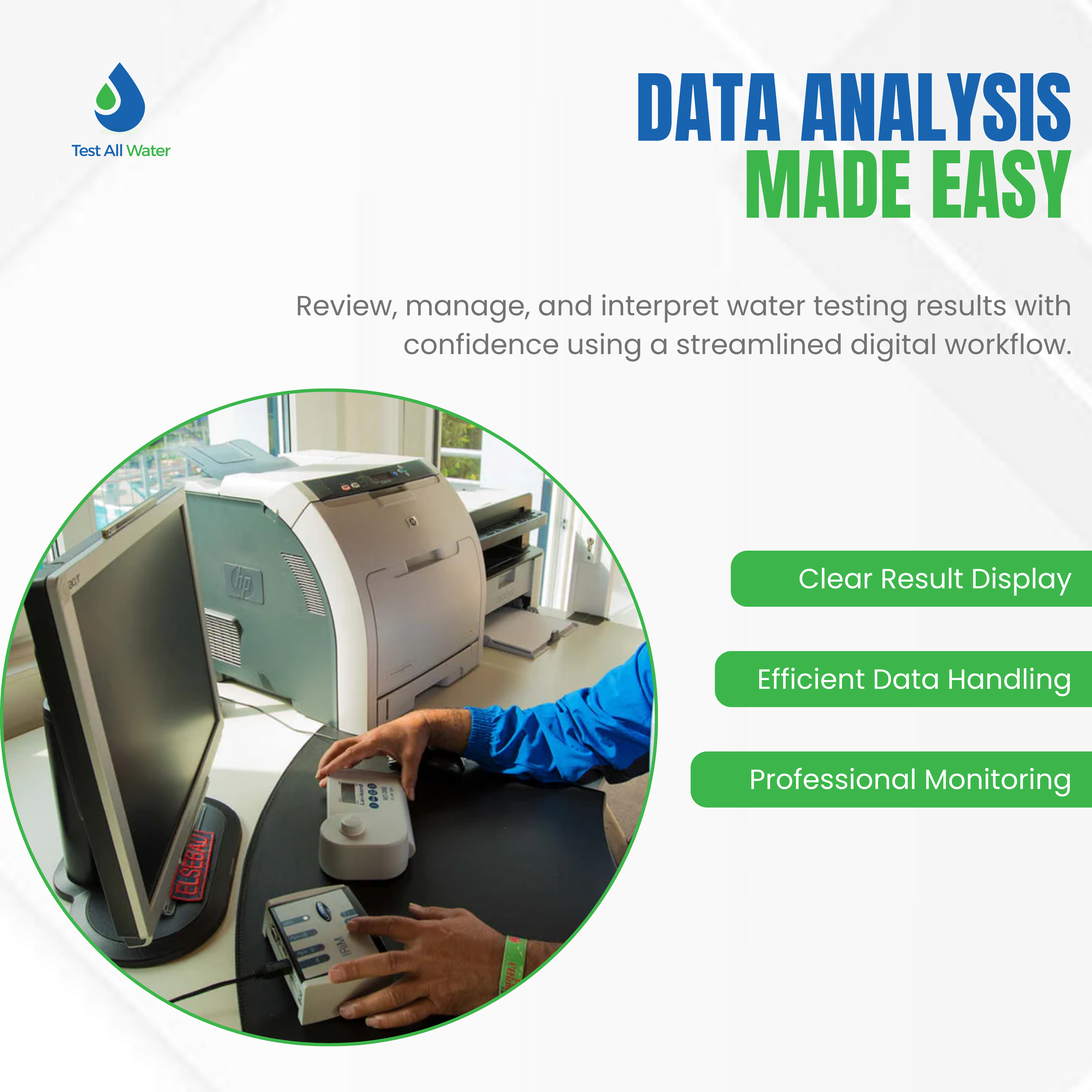

Results containing date and time can be stored in the on-board memory, and can also be downloaded via an infra-red unit (IRiM) for later review in excel or notepad.

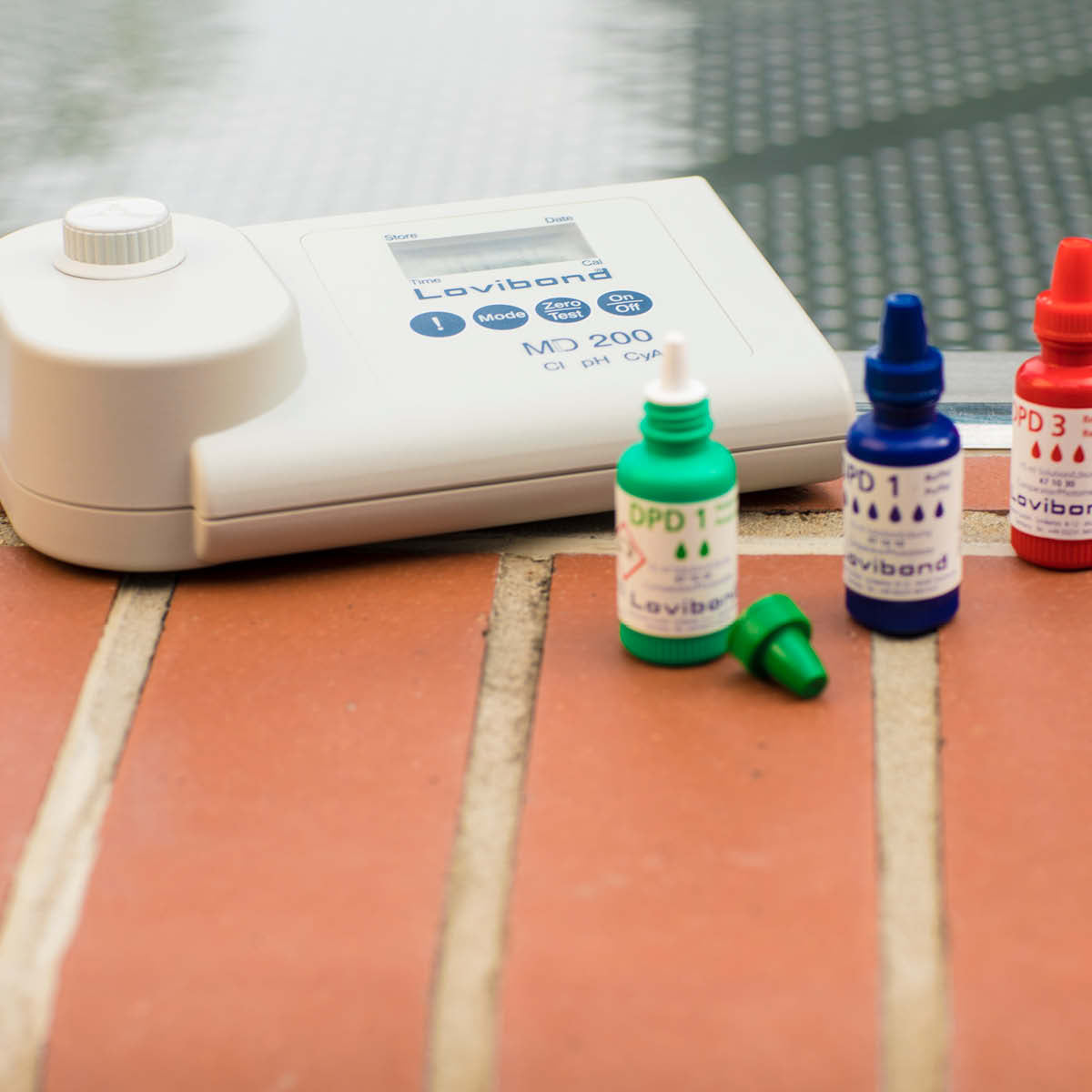

With the added reliability of the Lovibond ® reagents the MD 200 is the ideal choice for photometric pool water testing.

Test / Range

Chlorine 0.01-6.0 mg/l; 0.1-10 mg/l

pH Value 6.5-8.4

Cyanuric Acid: 0-160 mg/l

Bromine: 0.05-13 mg/l

Alkalinity Total: 5-200 mg/l CaCO3

Calcium Hardness: 0-500 mg/l CaCO3

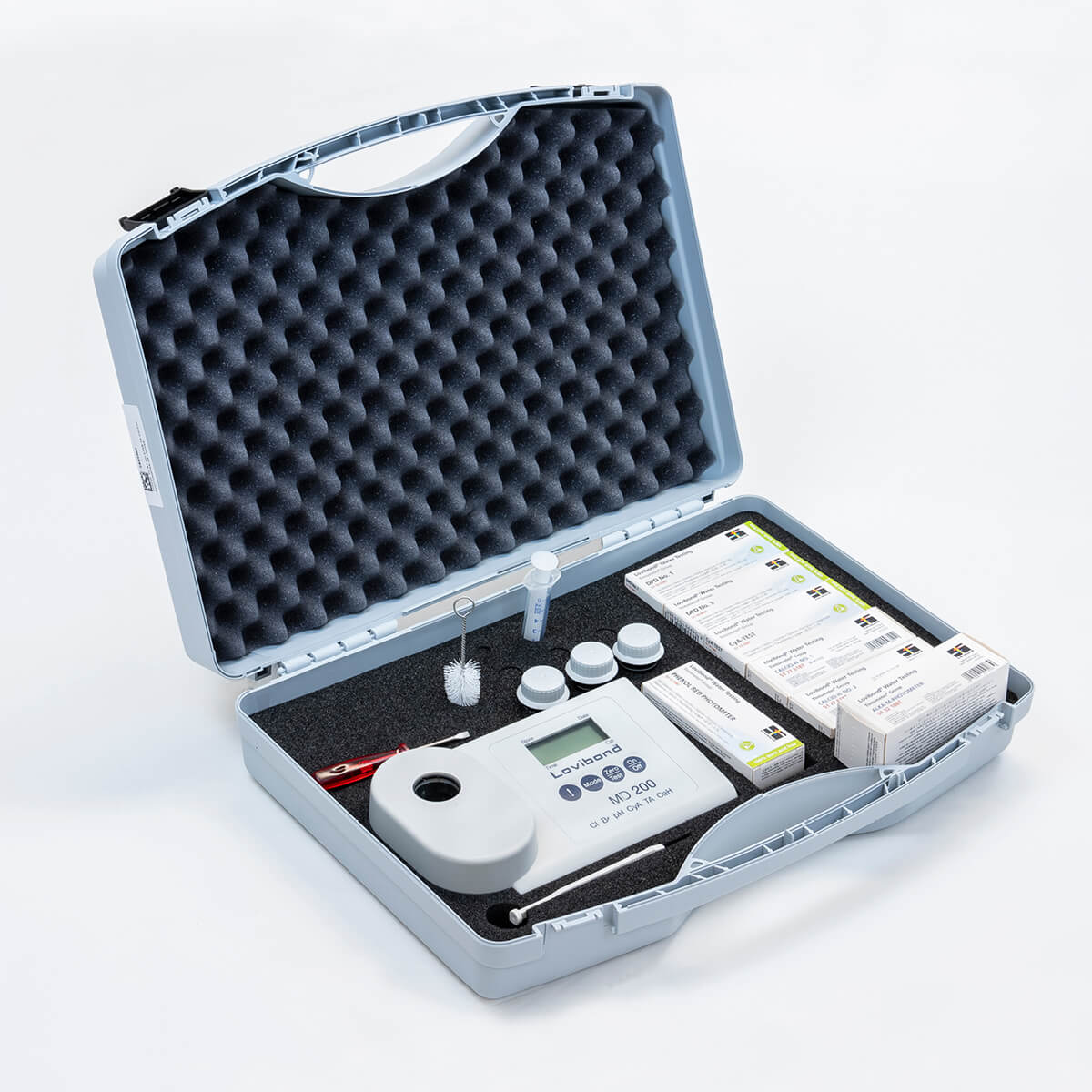

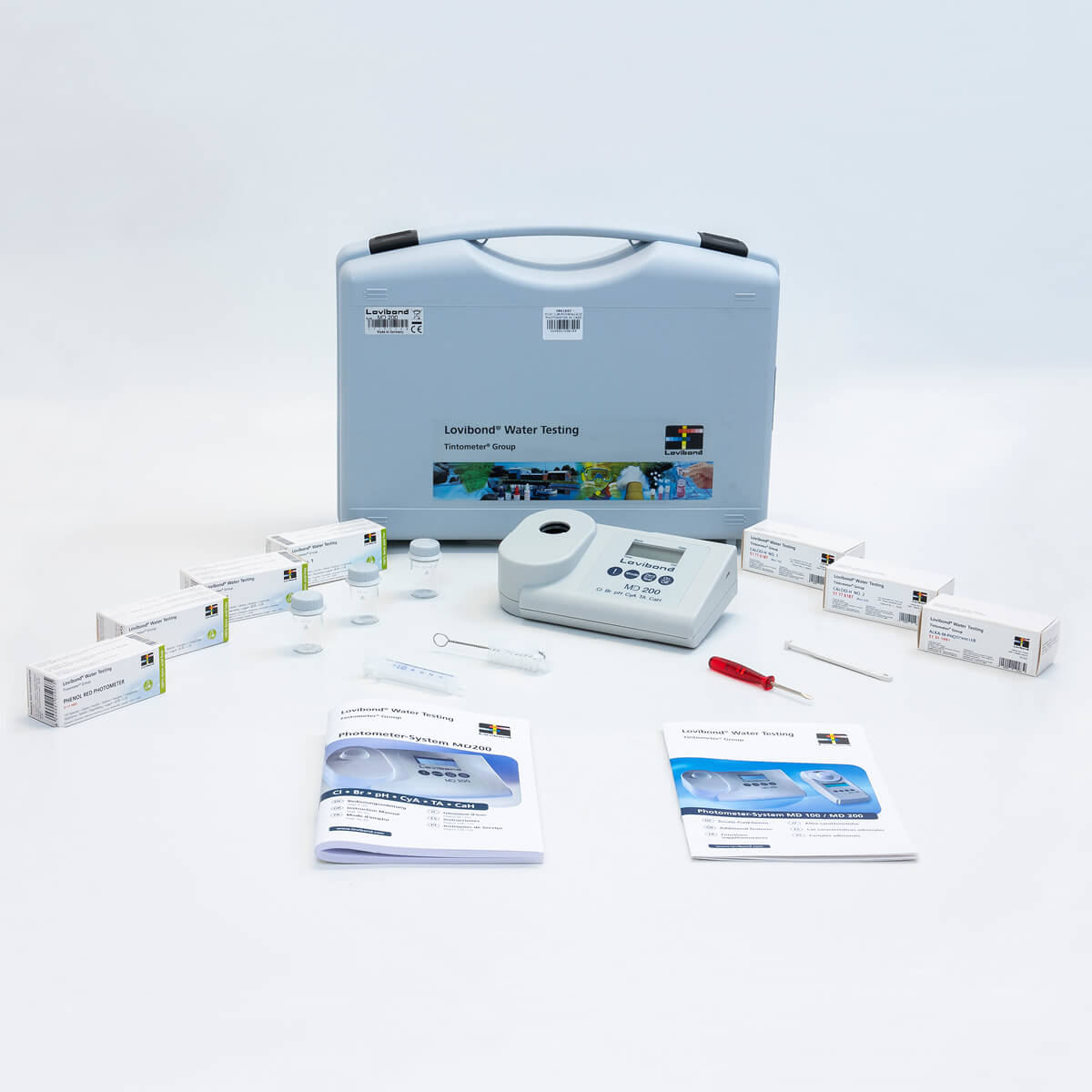

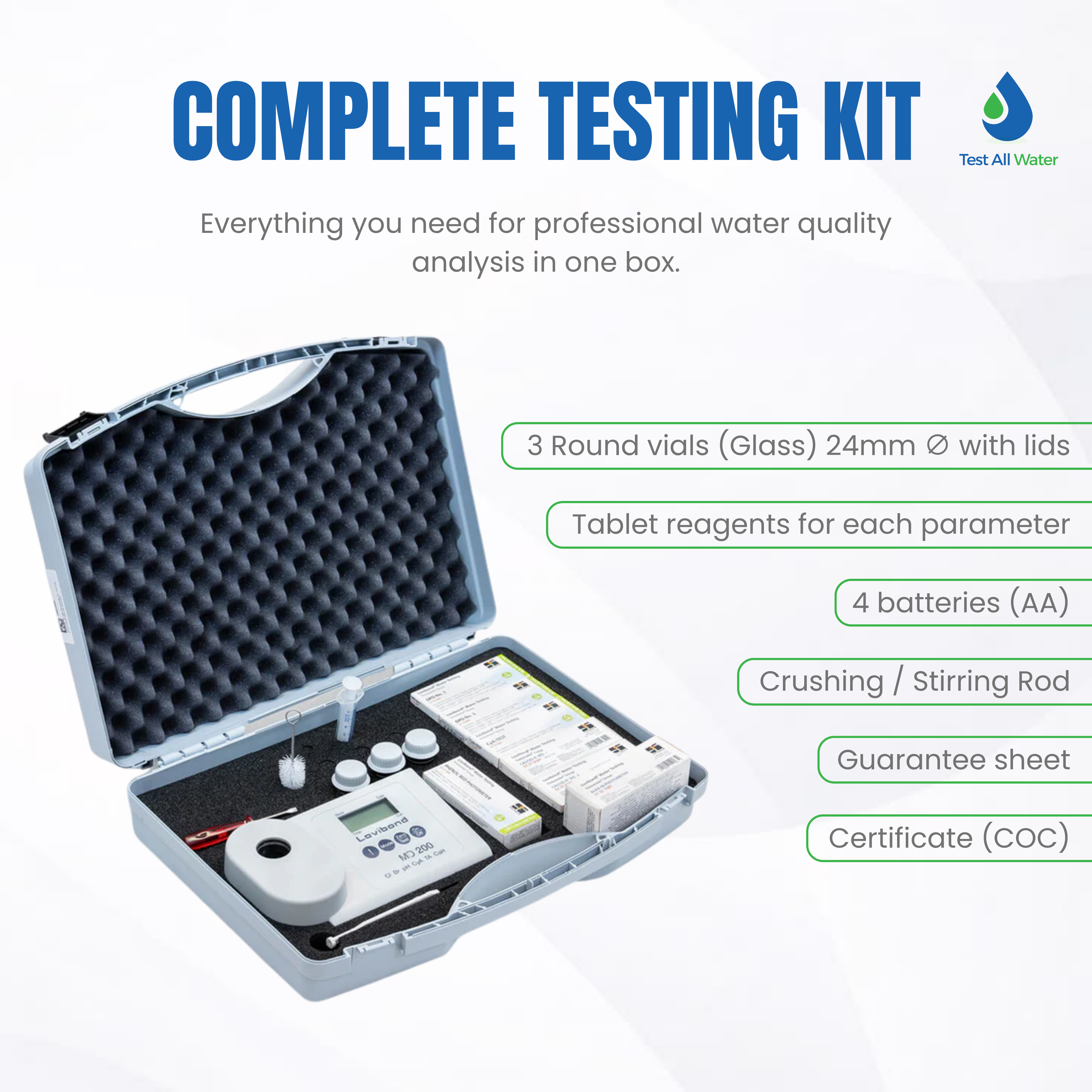

Delivery Content:

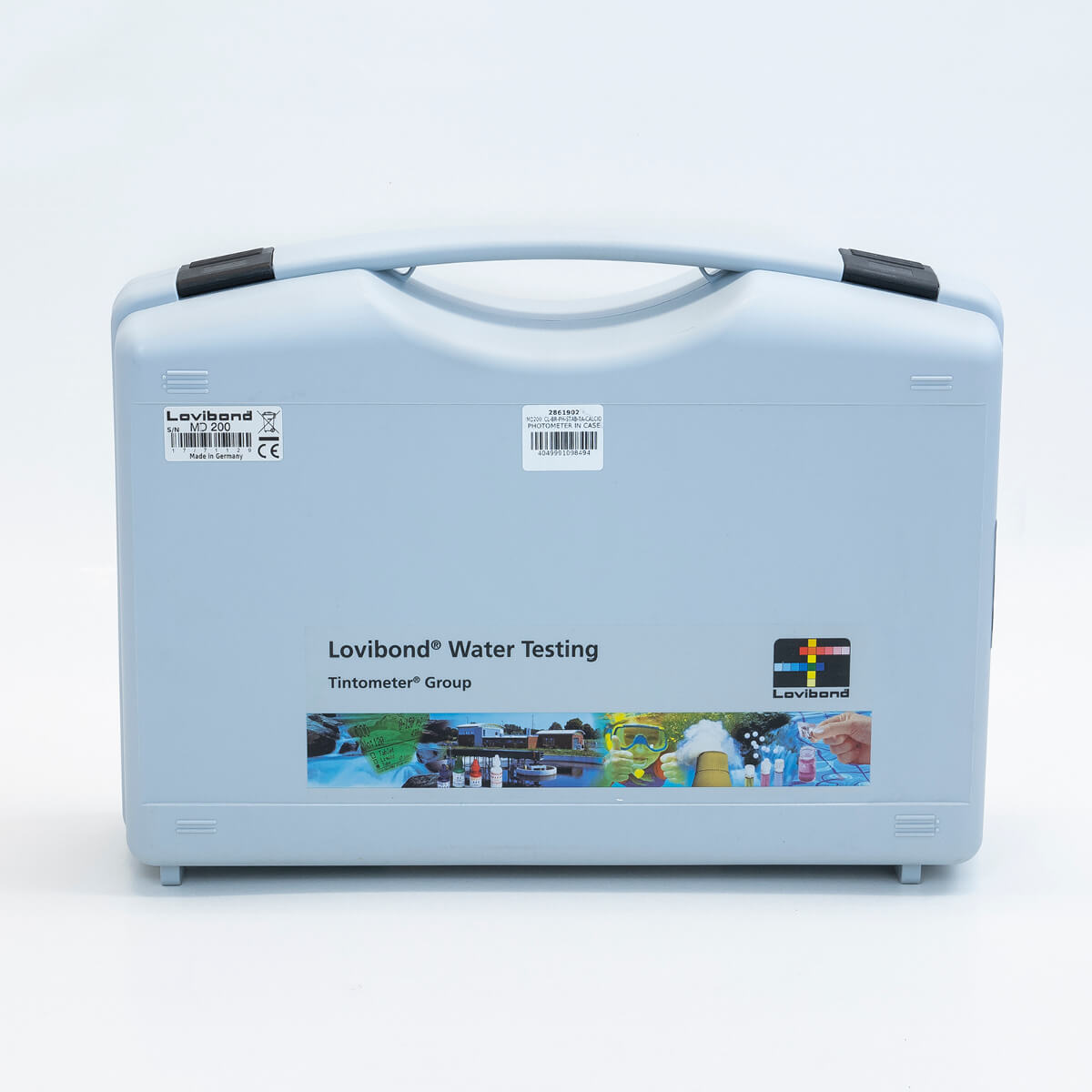

Instrument in carrying case

4 batteries (AA)

3 Round vials (Glass) 24mm ∅ with lids

Tablet reagents for each parameter

Crushing / Stirring Rod

Guarantee sheet

Certificate (COC)

Instruction manual

Specification

Optics: LEDs, interference filters (IF) and photo sensor in transparent sample chamber.
Depending on the version, up to 3 different interference filters are used.
Wavelength specifications of interference filters:
430 nm Δ λ = 5 nm
530 nm Δ λ = 5 nm
560 nm Δ λ = 5 nm
580 nm Δ λ = 5 nm
610 nm Δ λ = 6 nm
660 nm Δ λ = 5 nm

Wavelength Accuracy: ± 1 nm

Photometric Accuracy: 3 % FS (T = 20 °C – 25 °C)

Operation: Foil keypad

Display:backlit LCD (on keypress)

Suitable Vials:Round Cuvettes 24 mm

Calibration: Factory calibration and user calibration. Reset to factory calibration possible.

Interfaces:Infrared

Power Supply:4 batteries (AA)

Battery Life Time:approx. 53 hours

Auto – OFF:Yes

Clock:Real Time Clock and Date

Portability:Portable

Environmental Conditions: temperature: 5 - 40 °C rel. humidity: 30 - 90 % (non condensing)

Compliance: CE

Protection Class:IP 68

Dimensions:110 x 55 x 190 mm

Weight :455 g

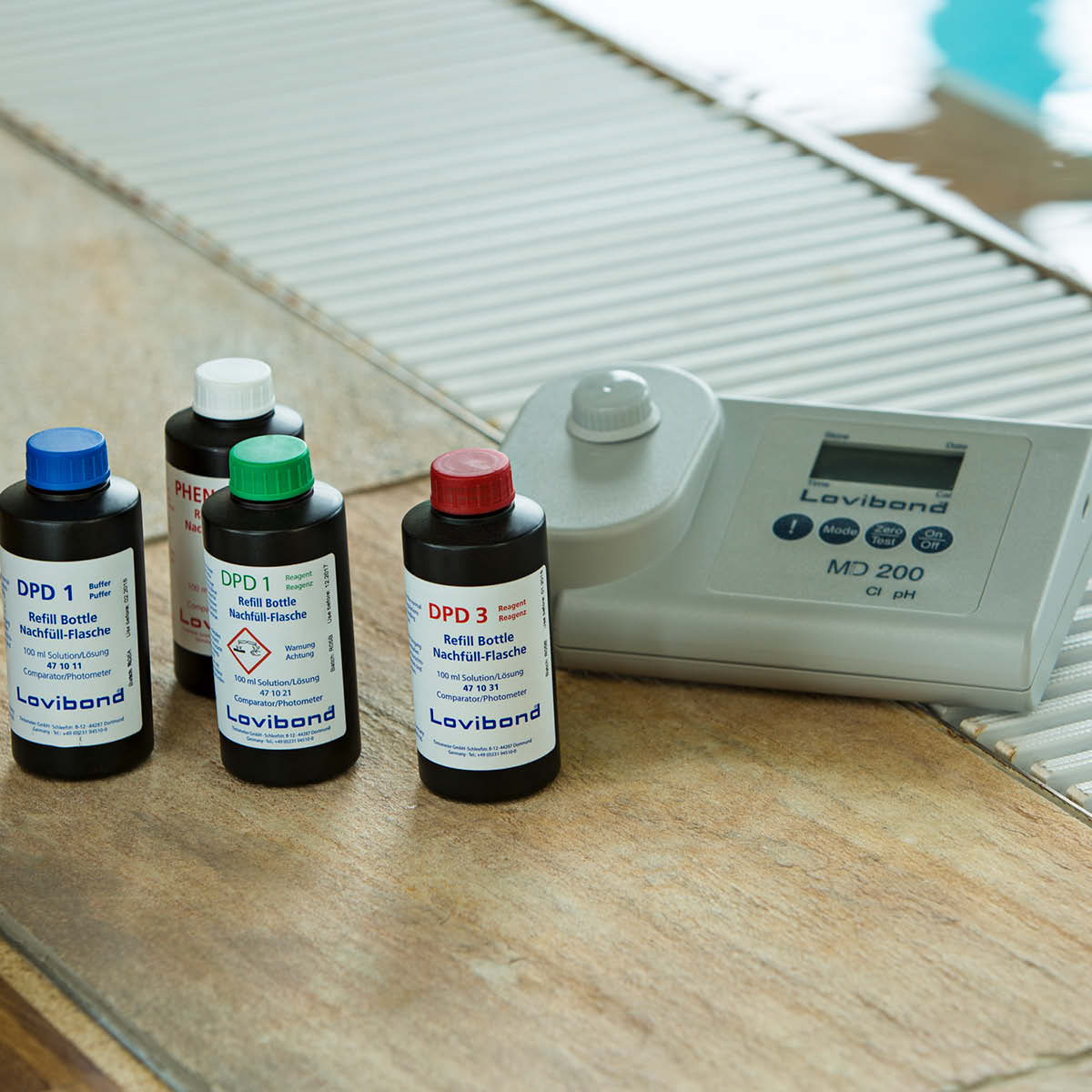

Suitable Reagents

511050BT DPD No.1 100pack

511051BT DPD No.1 250pack

511080BT DPD No.3 100pack

511081BT DPD No.3 250pack

511770BT Phenol Red Photometer 100pack

511771BT Phenol Red Photometer 250pack

511370BT Cyanuric Acid CyA-Test Tablets 100pack

511371BT Cyanuric Acid CyA-Test Tablets 250pack

513210BT  Alkalinity Total M Photometer Tablets 100pack

513211BT Alkalinity Total M Photometer Tablets 250pack

517762BT Calcium Hardness Calcio No1/No2 Tablets Combi Pack 250pack

Sku: 2861902
