Lovibond MD 200 2 in 1 Hydrogen Peroxide / pH

The MD 200 photometer can be used in practically any area of water analysis.

A waterproof (IP68) housing, high precision interference filters and LEDs used give robustness, reliability, accuracy, and confidence in results.
A backlit screen, 4 button keypad, scroll memory function which saves the last used parameter, and one time zero for switching between methods make the unit easy to use and ideal for testing in any environment.

Results containing date and time can be stored in the on-board memory and can also be downloaded via an infra-red unit (IRiM) for later review in excel or notepad.

With the added reliability of the Lovibond liquid reagents the MD 200 is the ideal choice for photometric Hydrogen Peroxide and pH testing.

Test / Range
Hydrogen Peroxide 1-500 mg/l
pH Value 6.5-8.4

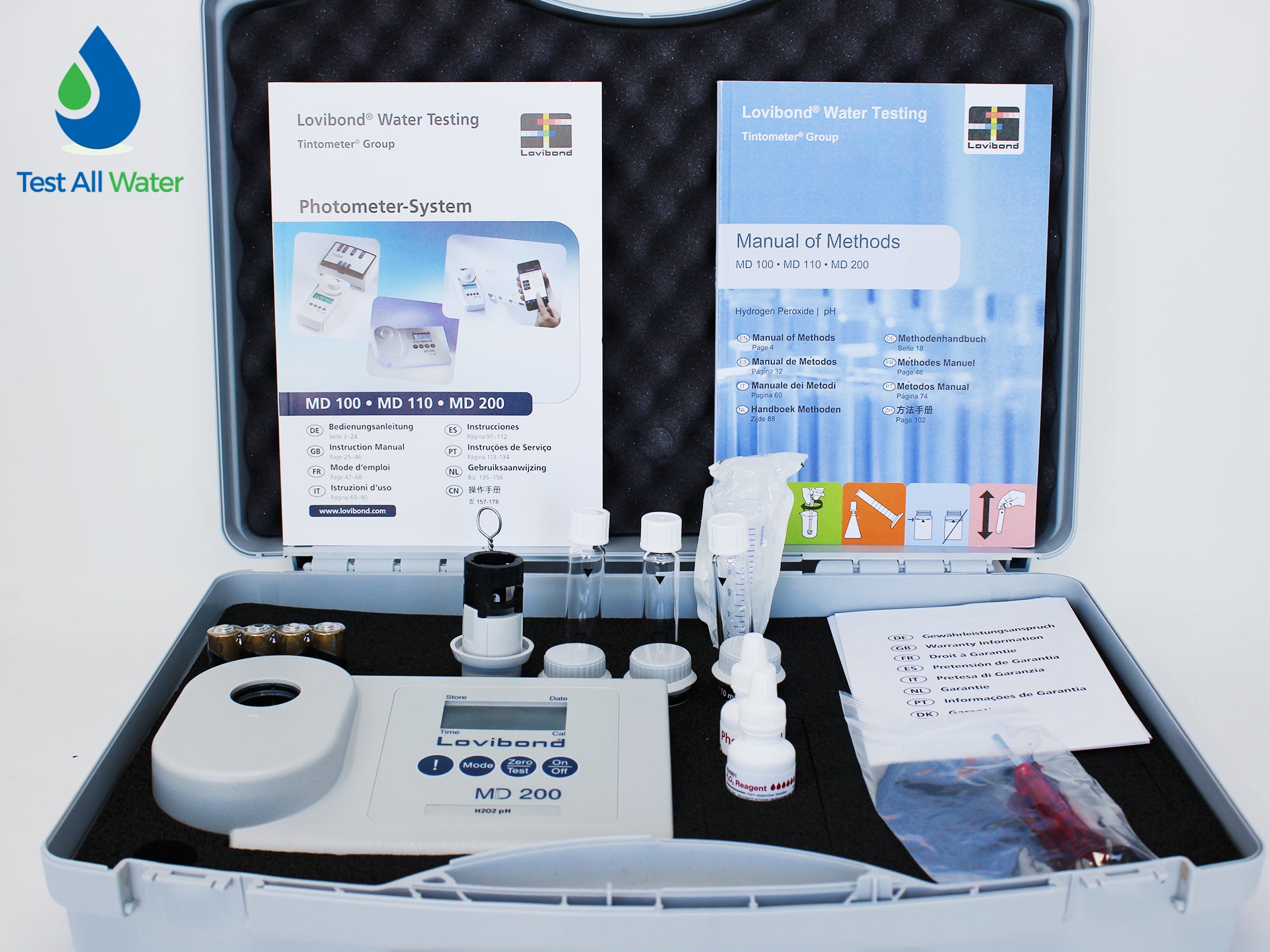

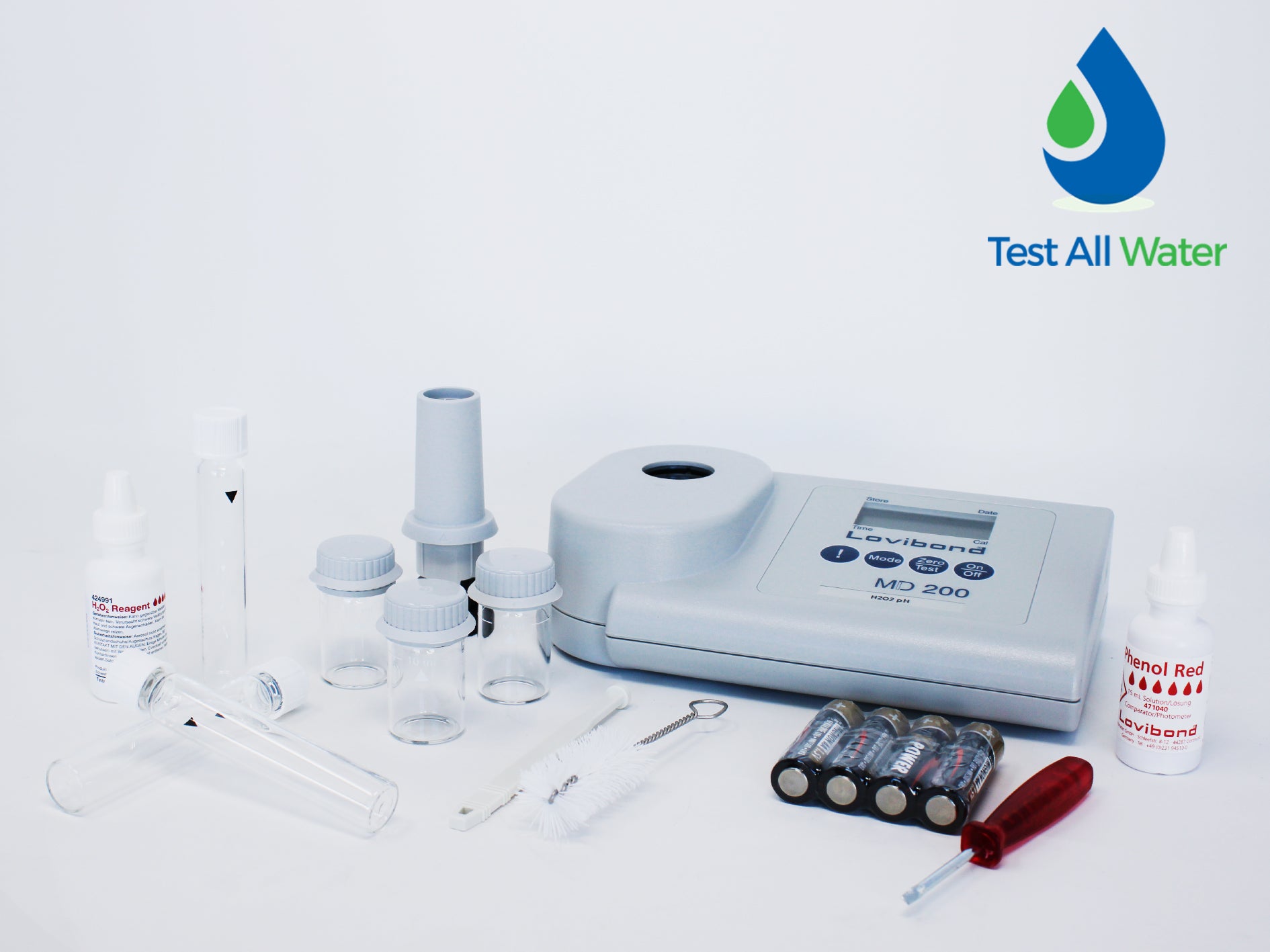

Delivery Content:
4 batteries (AA)
3 Round vials (Glass) 24mm ∅ with lids
3 Round vials (Glass) 16mm ∅ with lids
Liquid reagents for each test
Crushing / Stirring Rod
Guarantee sheet
Certificate (COC)
Instruction manual

Specifications

Optics: LEDs, interference filters (IF) and photo sensor in transparent sample chamber. Depending on the version, up to 3 different interference filters are used. Wavelength specifications of interference filters:
430 nm Δλ = 5 nm
530 nm Δλ = 5 nm
560 nm Δλ = 5 nm
610 nm Δλ = 6 nm

Wavelength Accuracy: ± 1 nm
Photometric Range: -2500 - 2500 mAbs
Photometric Accuracy: 3 % FS (T = 20 °C – 25 °C)
Operation: Foil keypad
Display: backlit LCD (on keypress)
Suitable Vials: Round Cuvettes 24 mm
Calibration: Factory calibration and user calibration. Reset to factory calibration possible.
Interfaces: Infrared
Internal Storage :internal ring memory for 16 data sets
Power Supply: 4 batteries (AA)
Battery Life Time: approx. 53 hours
Auto – OFF: Yes
Clock: Real Time Clock and Date
Portability : Portable
Environmental Conditions : temperature: 5 - 40 °C rel. humidity: 30 - 90 % (non condensing)
Compliance : CE
Protection Class: IP 68
Dimensions: 110 x 55 x 190 mm
Weight: 455 g

Replacement Reagents

424991 Hydrogen Peroxide Reagent Solution  15 ml

471040 Phenol Red Liquid Solution 15ml

NOTE:

There has recently been an amendment to the UK Poisons Act 1972 regarding the supply of Explosives precursors which comes into effect from October 1^st 2023 and covers the supply of certain materials.

In order to comply with these regulations we kindly ask that you complete the following actions as quickly as possible in order to avoid disruption to supply.

• Please complete this form, along with a copy of a photographic ID (such as a passport, driving licence, trade ID card, business ID card) for the individual that your company authorises to purchase these materials.
• You will need to understand your legal obligations under the Act, particularly in regard to the reporting of loss, theft or suspicious activity.
• If you are reselling these materials then you may need to obtain and retain the same information from your customers.

Further information can be found at https://www.gov.uk/government/publications/supplying-explosives-precursors/supplying-explosives-precursors-and-poiso
