Hanna Instruments HI-97716C Bromine Portable Photometer Kit

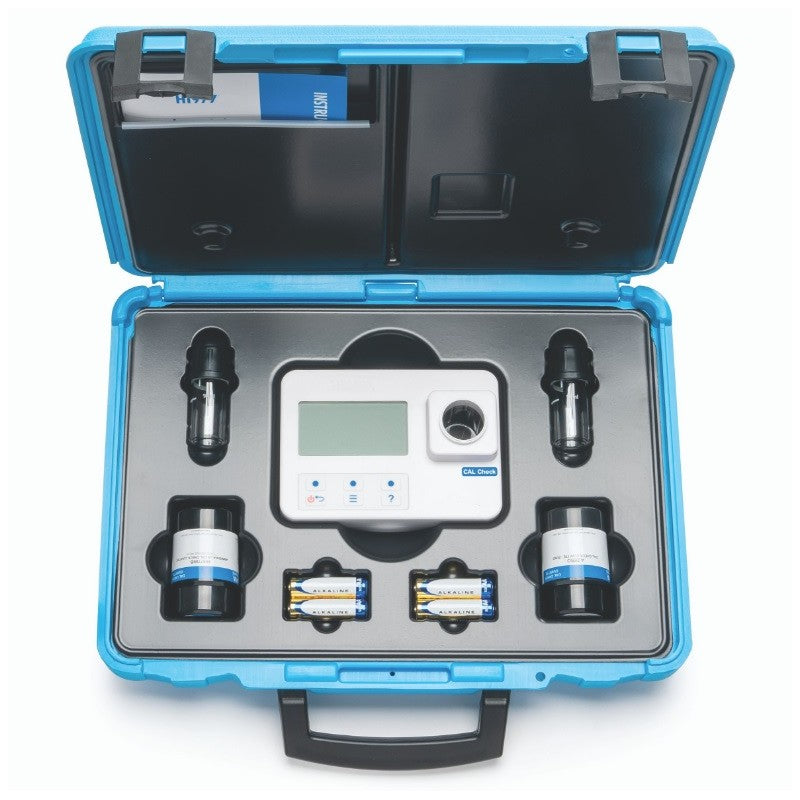

The HI-97716C kit is supplied with a meter, CAL Check standards, cuvettes (2), caps (2), plastic inserts for cuvette, (2), scissors, a cuvette cleaning cloth, 1.5V AA batteries (3), instruction manual, and an instrument quality certificate.
About the photometer
- Bromine 0.00 to 10.00 mg/L (as Br2)
The HI-97716 has an innovative optical system that offers superior performance in accuracy, repeatability, and the short amount of time it takes to perform a measurement. This compact, waterproof meter is extremely user friendly with a tutorial mode that walks the user graphically, step by step, in performing a measurement. The use of a backlit dot matrix LED allows the use of virtual keys which makes the operation of the meter very intuitive including selecting different methods, reviewing GLP data, recalling the last 50 measurements, and customising the meter to user preferences.
HI-97716 is waterproof including the cuvette holder that is designed with ridges to protect the optical path from getting scratched by the cuvette and a protected battery compartment that holds three AA batteries. The compact design fits comfortable in the hand for use in the field or on a table for benchtop use. The LCD is 71 mm (2.75") by 37 mm (1.6") and is backlit for easy viewing under all conditions.
Advanced LED optical system
LEDs have a much higher luminous efficiency, providing more light while using less power. They also produce little heat which could otherwise affect electronic stability.
CAL CheckTM
Validate the performance of the instrument at any time and apply a user calibration using CAL Check cuvettes made with NIST traceable standards.
The CAL Check screen guides the user step-by-step through the validation process and user calibration.
Auto logging
GLP
Review of the last calibration date.
On-screen tutorial mode with animations
The built in tutorial mode guides users step-by-step through the measurement process.
Waterproof and floating IP67 case
Auto-shut off
Automatic shut off after 15 minutes of inactivity and 30 minutes before a read measurement.
Battery status indicator
Indicates the amount of battery life left.
Built-in timer
Display of time remaining before a measurement is taken. Ensures that all readings are taken at the appropriate reaction intervals for the test being performed.
Error messages
Messages on display alerting to problems including no cap, high zero, and standard too low.
Units of measurement
Appropriate unit of measure is displayed along with reading.
Specifications
| Bromine | 0.00 to 10.00 mg/L (as Br2) |
| Resolution | 0.01 mg/L |
| Accuracy | ±0.08 mg/L ±3% of reading at 25 °C |
| Method | Adaptation of Standard Methods for the Examination of Water and Wastewater, 18th Edition, DPD Method |
| Measurement System | |
|---|---|
| Light source | Light Emitting Diode |
| Bandpass filter | 525 nm |
| Bandpass filter | bandwidth 8 nm |
| Bandpass filter wavelength accuracy | ±1.0 nm |
| Light detector | Silicon photocell |
| Cuvette type | Round 24.6 mm diameter (22 mm inside) |
| Additional Specifications | |
| Auto logging | 50 readings |
| Display | 128 x 64 pixel B/W LCD with backlight |
| Auto-off | After 15 minutes of inactivity (30 minutes before a READ measurement) |
| Battery type | 1.5 V AA Alkaline (3 pcs.) |
| Battery life | > 800 measurements (without backlight) |
| Environment | 0 to 50 °C (32 to 122 °F); 0 to 100% RH |
| Dimensions | 142.5 x 102.5 x 50.5 mm (5.6 x 4.0 x 2.0") |
| Weight (with batteries) | 380 g (13.4 oz.) |
| Case ingress protection rating | IP67, floating case |
| Reagents and standards (buy separately) | |
| HI-93716-01 | Bromine reagent (100 tests) |
| HI-93716-03 | Bromine reagents (300 tests) |
