Hanna Instruments HI-97713C Phosphate Low Range Portable Photometer Kit
HI-97713C kit contains an advanced portable photometer for the measurement of low range phosphate in water.

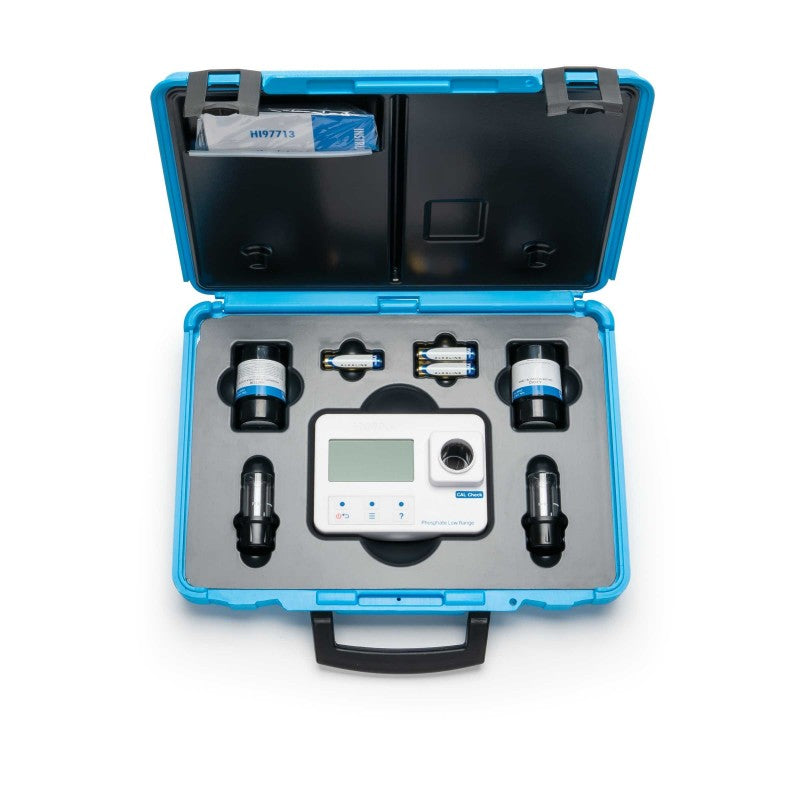

HI-97713C kit is supplied with a meter, CAL Check cuvette A, CAL check cuvette B for phosphate LR, sample cuvettes (2), sample caps (2), plastic stoppers (2), 1.5 V AA batteries (3), cuvette wiping cloth, scissors, instrument quality certificate, instruction manual and rigid carrying case.
The HI-97713 is an advanced portable photometer for the measurement of low range phosphate in water. This meter offers a superior optical system that utilises a reference detector and narrow band interference filters for extremely fast and repeatable measurements.
Measurement method: Adaptation of the Ascorbic Acid method.
- Range: 0.00 to 2.50 mg/L (as PO43-)
- Advanced LED optical system – LEDs have a much higher luminous efficiency, providing more light while using less power. They also produce little heat, which could otherwise affect electronic stability.
- CAL Check™ - Validate the performance of the instrument at any time and apply a user calibration using CAL Check cuvettes made with NIST traceable standards. The CAL Check screen guides the user step-by-step through the validation process and user calibration.
- Auto logging
- GLP – Review of the last calibration date
- On-screen tutorial mode with animations – the built in tutorial mode guides users step-by-step through the measurement process.
- Waterproof and floating IP67 case
- Auto-shut off – Automatic shut off after 15 minutes of inactivity and 30 minutes before a read measurement.
- Battery status indicator – Indicates the amount of battery life left.
- Built-in timer – Display of time remaining before a measurement is taken. Ensures that all readings are taken at the appropriate reaction intervals for the test being performed.
- Error messages – Messages on display alerting to problems including no cap, high zero, and standard too low.
- Unit of measure – Appropriate unit of measure is displayed along with reading.
Specifications
| Range | 0.00 to 2.50 mg/L (as PO43-) |
| Resolution | 0.01 mg/L |
| Accuracy @25°C | ±0.04 mg/L ±4% of reading at 25°C |
| Method | Adaptation of the Ascorbic Acid Method |
| Light Source | light emitting diode |
| Bandpass filter | 610nm |
| Bandpass filter bandwidth | 8nm |
| Bandpass filter wavelength accuracy | ±1.0nm |
| Light Detector | Silicon photocell |
| Cuvette type | Round 24.6mm diameter (22mm inside) |
| Auto logging | 50 readings |
| Display | 128 x 64 pixel B/W LCD with backlight |
| Auto-off | After 15 minutes of inactivity (30 minutes before a READ measurement) |
| Battery type/life | Alkaline 1.5 V AA (3)/ >800 measurements (without backlight) |
| Environment | 0 to 50°C; 0 to 100% RH |
| Dimensions | 142.5 x 102.5 x 50.5 mm |
| Weight | 380g |
| Ordering information | HI-97713 is supplied with sample cuvettes (2), sample caps (2), plastic stoppers (2), 1.5V AA batteries (3), instrument quality certificate and instruction manual. Available as a kit: HI-97713C includes photometer, CAL Check cuvette A & B for phosphate LR, sample cuvettes (2), sample caps (2), plastic stoppers (2), 1.5V AA batteries (3), cuvette wiping cloth, scissors, instrument quality certificate, instruction manual and rigid carrying case. |
