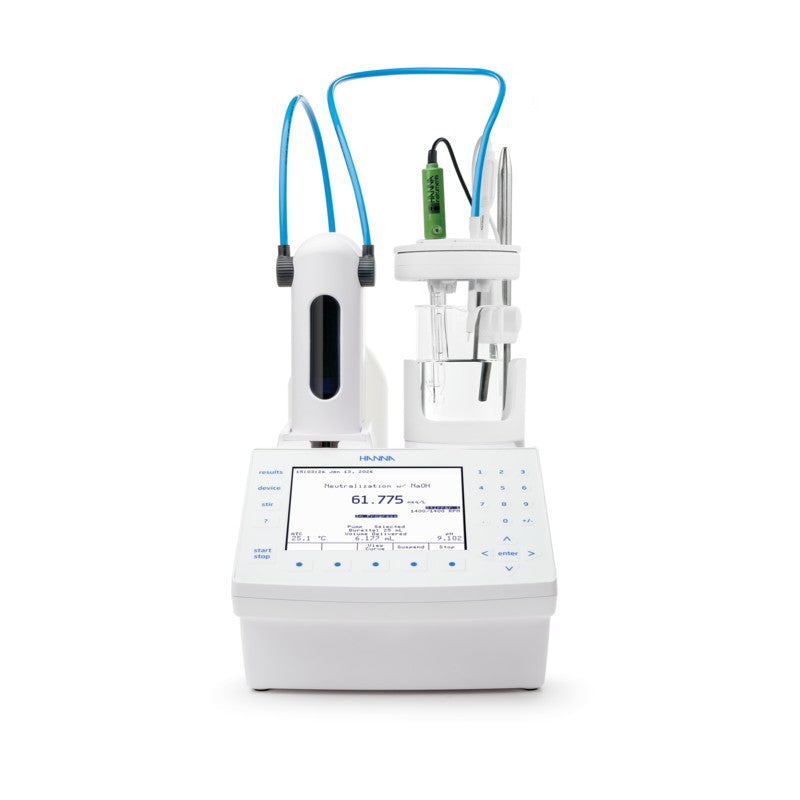

Hanna Instruments HI-930-02 Automatic Potentiometric Titration System (pH/mV)

The HI-930 Automatic Potentiometric Titration System is the answer to your basic titration needs. The HI-930 delivers accurate results and intuitive user experience, all in a compact package. Perfect for taking the next step to automating titration without overcomplicating the process. Suitable for determining Acid and Base content, Hardness in Water, Moisture and Metal content, and Redox reagent concentrations. Supports 15 titration methods.

HI-930-02 Automatic Potentiometric Titration System

Recommended applications

• Acid content of plant effluents, food (for example: cheese and wine), plating and etching baths, petroleum products, drugs
• Base content of fertiliser (containing ammonia), bleach, minerals
• Hardness in water
• Metal content of alloys, minerals, ores, clays, waters, plating baths, paints, paper, plant materials, biological fluids, petroleum products
• Moisture content in foodstuffs, petrochemicals, plastics, pharmaceutical products
• Redox reagent concentrations such as available chlorine in potable water, peroxide, traces of oxidants and reductants in food, reductants in high temperature or high pressure boiler water, vitamin analysis

Main features

• Perfect for taking the next step to automating titration without overcomplicating the process
• Small footprint so you can fully optimise your benchtop and increase productivity
• Unmatched 40,000-step dosing pump for small volumes of titrant to help you achieve a very precise endpoint for greater consistency
• Casing made with strong, chemically resistant plastic
• Flexible electrode holder supports up to 3 electrodes, 4 dispensing tubes, and 1 temperature sensor
• Electrode holder positions electrodes in the centre of beaker, allowing for smaller sample sizes
• Support for 15 titration methods
• User-customisable reports
• Integrated research grade pH/mV meter
• Clearly displayed warning and error messages

High Contrast LCD Display

A high contrast LCD display makes every character on the display stand out and the wide viewing angle allows measurements to be seen from any angle. The backlight is adjustable for perfect viewing, and a backlight saver option protects the display during periods of inactivity.

Maximise Your Workspace

This new generation of titrator features a compact footprint for maximum use of your lab space. Use it in any space while providing accurate and consistent results.

Simple User Experience

Virtual keys on the display allow for simple and quick navigation between screens and menus without getting lost in a nest of information. If you need additional information about a screen, simply press the dedicated button for help.

Titration Capabilities

Multiple Titration Types

Paired with the right electrode, this potentiometric titrator can perform any number of standard titrations including pH and mV tests with fixed endpoints or single equivalence points.

Dynamic Titrant Dosing

The dynamic dosing feature allows for timely and accurate titration results by relating the titrant volume dosed to the mV response from the titration reaction. This provides for larger doses near the beginning of a titration and smaller, more precise doses near the titration endpoint.

Equivalence Endpoint Detection

Equivalence endpoint detection is critical in applications where fixed endpoints are not specified in standard methods. This endpoint indicates where the mV response from the titration is greatest with respect to the volume of titrant dosed.

Signal Stability Timing

The signal stability feature monitors when the mV response of the titration reaction stabilises before providing the next titrant dose. This ensures reliable measurement values throughout the length of a titration.

Customisable Methods

This titrator can store up to 15 user-defined or standard titration and direct measurement methods. Each method may be modified and optimised for performance based on application and user requirements.

Customisable Analysis Reports

Each analysis report is fully customisable to ensure the best data required for an application is stored and filed. The Multi-select feature makes batch processing simple.

Burettes and Dosing System

Clip Lock™ Exchangeable Burette System

With Hanna’s Clip-Lock™ burette feature, it only takes a few seconds to exchange titrants and reagents preventing cross-contamination and saving time.

Multiple Burette Sizes

HI-930 is supplied with a 10 mL burette but may be equipped with a 5 mL, 25 mL, or 50 mL burette. Each burette is constructed with a ground glass syringe and chemically resistant PTFE plunger.

Precision Dosing Pump

Our unmatched 40,000-step piston driven pump is capable of dosing extremely small and highly accurate volumes of titrant or reagent.

Chemically Resistant Tubing

Aspiration and dispensing tubes are constructed of durable, chemically resistant PTFE and feature a light-blocking polyurethane outer sleeve to protect light sensitive reagents.

Interface and Display Interactive Colour Display

A large, colour LCD screen clearly shows the chosen titration method along with results, units, titration volume, temperature, and mV or pH values.

Detailed Titration Graphs

A real-time titration curve can be displayed during each titration. This feature is useful when new methods are tested or when a procedure requires optimisation.

Connectivity and Functionality

Multifunctional Versatility

HI-930 functions as a titrator, pH meter, and mV/ORP meter. Valuable laboratory bench space is saved, and multiple analyses can be performed on one sample.

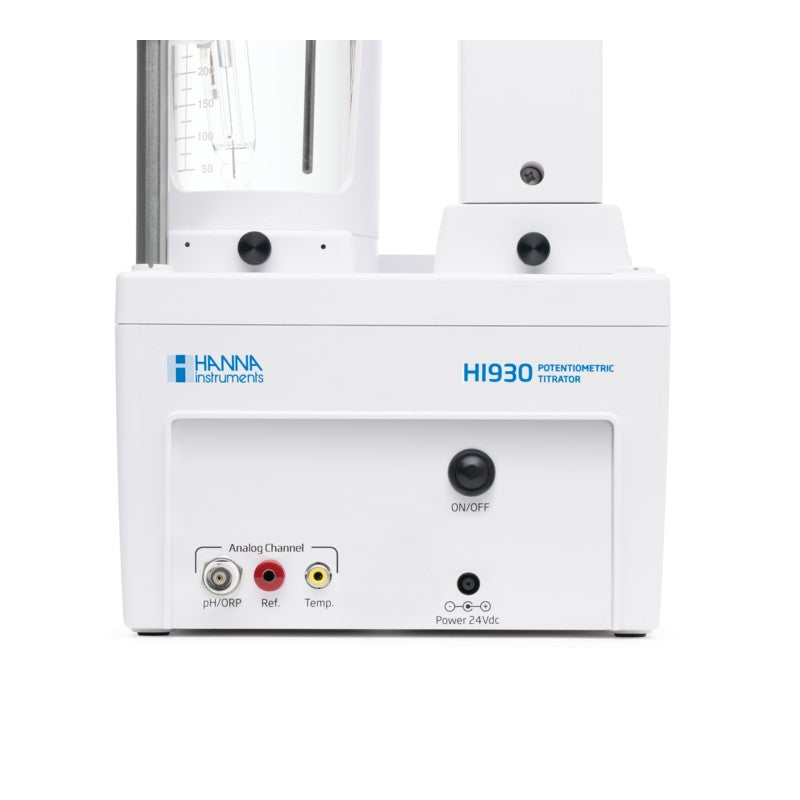

Rear Connections

HI-930 offers support for one analogue board to allow a pH or ORP electrode, plus one burette to be connected.

Data

Effortless data transfer

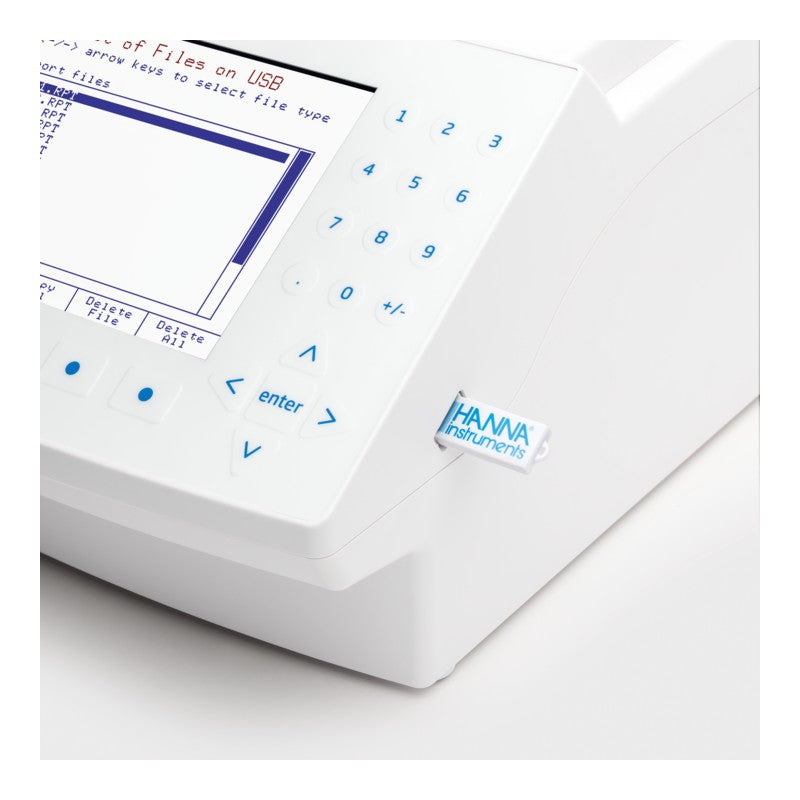

A conveniently located USB port or direct connection to a PC allows for the transfer of titration methods, titration reports, and software upgrades. Easily convert titration methods from our software to a LIMS friendly format.

Flexible GLP Management

All necessary Good Laboratory Practice (GLP) information is recorded with each sample including sample identification, company and operator name, date, time, electrode ID codes, and calibration information.

Data Storage

Up to 50 titration and pH/mV reports. Transfer data via USB.

Enhanced Security Options

Administrative users can set a PIN code on the device protecting against unauthorised access. Titration method options and results are tamper-proof while a non-administrator operates the titrator, ensuring records remain safe, secure, and traceable.

Designed for Dynamic Environments.

Don’t worry about small spills in the laboratory with built-in spill handling. An external gutter system protects important connections, plus interior trays safeguard internal electronics.

Superior Design for Superior Results.

The Cycoloy® body is durable, heat-resistant, and resists staining. Menu buttons are part of the display making it fully sealed and easy to clean.

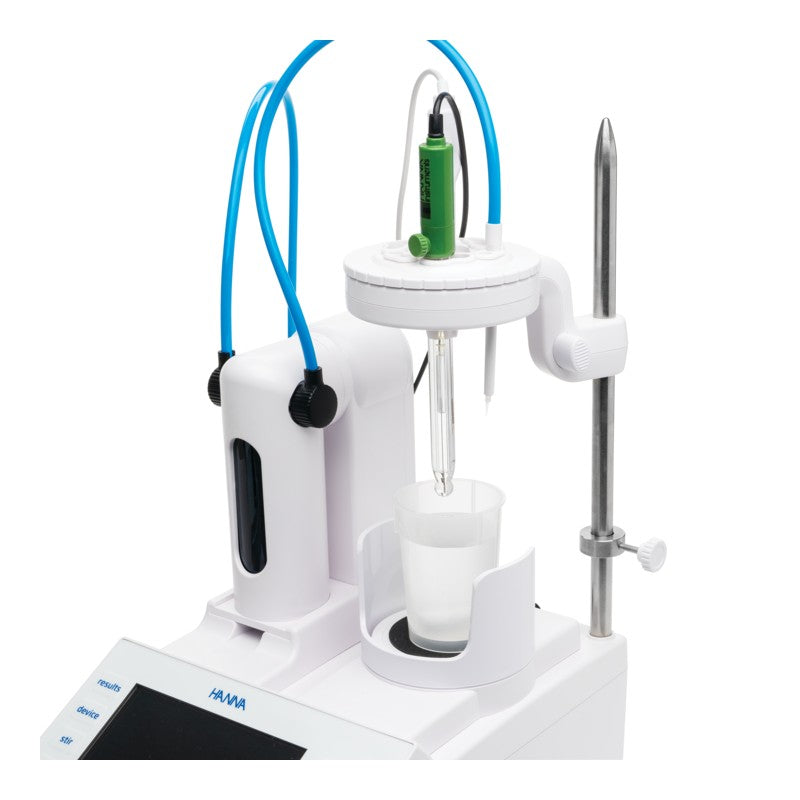

Electrode Holder

This electrode holder can hold up to 3 electrodes, 4 tubes, and 1 temperature probe at any given time.

The holder is angled for access to smaller volume titrations without hassle.

Use electrodes with different diameters when needed by simply changing the electrode guide.

No need to move electrodes around, get the best tube alignment for your titration with a rotating holder.

For a more compact design, the electrode holder is mounted directly onto the titrator body. The press-to-release button makes for simple height control.

What's included:

Each HI-930 potentiometric titrator is supplied with:

• Titrator
• Pump assembly
• Burette assembly Burette with 25 mL syringe
• Aspiration tube with fitting and protection tube
• Dispensing tube with dispensing tip, protection tube, and tube guide
• Tube locks
• Tool for burette cap removal
• Light spectrum protection screen
• Plastic beaker, 100 mL (3 pieces)
• Beaker support
• Electrodes holder and support rod with positioning collar and screw
• Magnetic stirrer
• Stir bar (2 pieces)
• Pump and burette locking screws with plastic head
• Temperature sensor
• Shorting cap
• O-ring set (5×10.5 mm + 5×3 mm)
• Power adapter
• USB memory stick
• Instrument quality certificate
• Instruction manual
• Warranty - 2 Years – meter only

Accessories to buy separately

Please see HI-930 manual for full list of accessories.

Titration reagents

HI-70433 0.01N Stabilised iodine titration reagent, 1 Litre

HI-70439 0.1M Sodium thiosulfate titration reagent, 1 Litre

HI-70440 0.02N Stabilised iodine titration reagent, 1 Litre

HI-70441 0.04N Stabilised iodine titration reagent, 1 Litre

HI-70455 0.01N Sodium hydroxide titration reagent, 1 Litre

HI-70456 0.1N Sodium hydroxide titration reagent, 1 Litre

HI-70457 1N Sodium hydroxide titration reagent, 1 Litre

HI-70458 0.01M Sulfuric acid titration reagent, 1 Litre

HI-70459 0.05M Sulfuric acid titration reagent, 1 Litre

HI-70462 0.01N Hydrochloric acid titration reagent, 1 Litre

HI-70463 0.1N Hydrochloric acid titration reagent, 1 Litre

HI-70464 1N Hydrochloric acid titration reagent, 1 Litre

Solutions

HI-7001L pH 1.68 buffer solution, 500 mL

HI-7004L pH 4.01 buffer solution, 500 mL

HI-7006L pH 6.86 buffer solution, 500 mL

HI-7007L pH 7.01 buffer solution, 500 mL

HI-7009L pH 9.18 buffer solution, 500 mL

HI-7010L pH 10.01 buffer solution, 500 mL

HI-7091L Reducing pretreatment solution, 500 mL

HI-7092L Oxidizing pretreatment solution, 500 mL

HI-7061L General purpose pH and ORP electrode cleaning solution, 500 mL

HI-7077L Oil & fat pH and ORP electrode cleaning solution, 500 mL

HI-70300L pH and ORP electrode storage solution, 500 mL

pH Sensors

HI-1043B Glass-body, double junction, refillable, combination pH electrode Use: strong acid and base, paint and solvents

HI-1053B Glass-body, triple ceramic, conic shape, refillable, combination pH electrode Use: emulsions, fats and creams, soil and semi-solids samples

HI-1083B Glass-body, micro, viscolene, nonrefillable, combination pH electrode Use: biotechnology and micro titration

HI-1131B Glass-body, double junction, refillable, combination pH electrode Use: general purpose

FC220B Glass-body, single junction, refillable, combination pH electrode Use: milk, yogurt, cream, sauce, and fruit juices

ORP Sensors

HI-3131B Glass-body, refillable, combination platinum ORP electrode Use: laboratories and general purpose

Other

HI-930330 Titrant bottle cap assembly

HI-930311 Electrode adapter for overhead holder

HI-930280 Dispensing tube with dispensing tip, fitting, protection tube, and tube guide

HI-900270S Aspiration tube with fitting and protection tube

HI-900260 Three-way valve

HI-930901 USB flash drive

HI-930105 Burette with 5 mL syringe

HI-930110 Burette with 10 mL syringe

HI-930125 Burette with 25 mL syringe

HI-930150 Burette with 50 mL syringe

HI-930105 5 mL syringe

HI-930110 10 mL syringe

HI-930125 25 mL syringe

HI-930150 50 mL syringe

HI-930160 Burette holder

HI-930810 Instruction manual binder

Specifications
