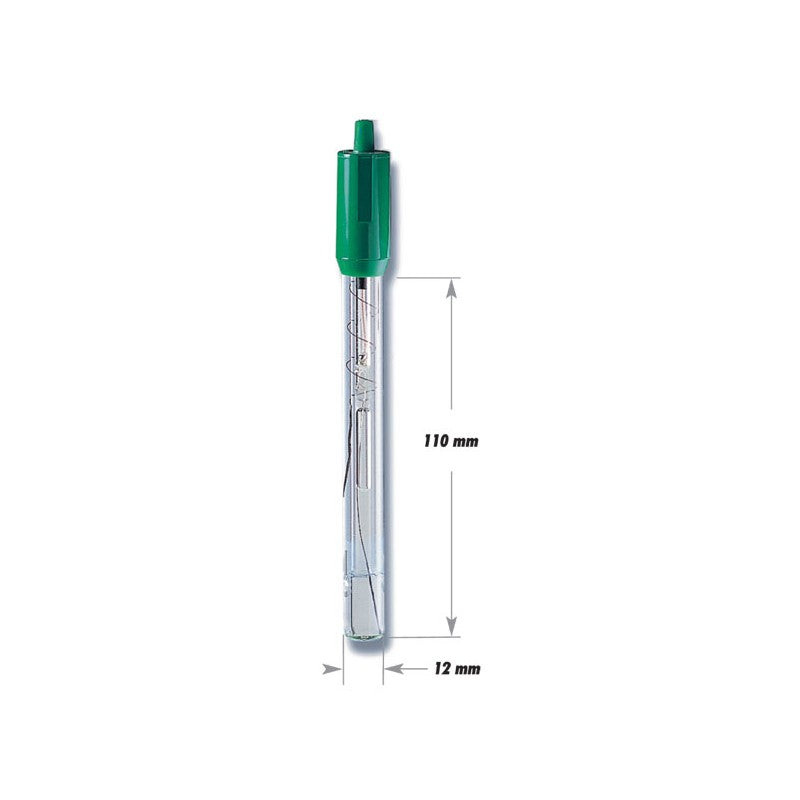

Hanna Instruments HI-1414D Flat Tipped pH Electrode

The HI-1414D is a glass bodied, single reference junction pH electrode made with low temperature glass and a DIN connector.

The HI-1414D is a flat tipped pre-amplified pH electrode. It has a 1m cable and a DIN connector.

This electrode has a unique open junction design in which there is a viscolene (hard gel) electrolyte layer that is free from silver chloride (AgCl) between the sample to be measured and the internal reference cell. The open junction design resists clogging and the probe’s flat tip makes it ideal for pH measurements on surfaces such as skin, leather, agar plates, and paper. The HI-1414D is recommended for use with Hanna’s HI-99171 pH meter.

Low Temperature Glass Formulation

The glass tip uses a special LT glass formulation with a lower resistance of approximately 50 megaohms compared to general purpose (GP) with a resistance of about 100 megaohms. This is beneficial since many food products are stored at low temperatures. As the temperature of the glass decreases in the sample, the resistance of the LT glass will increase approaching that of GP glass at ambient temperatures. If using GP glass, the resistance would increase above the optimum resistance for the high impedance input of a pH meter. The HI-1414D is suitable to use with samples that measure from 0 to 50°C.

Open Junction Reference

Suspended solids and proteins found in food products will clog a conventional ceramic reference junction. This clogging will impede the measurement circuit between the indicating electrode and the internal reference resulting in slower response time, erratic readings, and frequent electrode replacement. The open junction design consists of a solid gel interface (viscolene) between the sample and internal Ag/AgCl reference. This interface not only prevents silver from entering the sample, but also makes it impermeable to clogging, resulting in a fast response and stable readings.

DIN Connector

The HI-1414D uses a DIN connector. This type of connector is generally proprietary to the meters they are supplied with and may not be interchangeable. The HI-1414D is recommended for use with Hanna’s HI-99171 pH meter. Other types of connectors include BNC, screw type, T-type, and 3.5mm to name a few.

Flat Glass Tip

A flat tip is recommended to optimise surface contact for measurement on skin, leather, agar plates, paper, and samples that cannot easily be penetrated.

Glass Body

The glass body is ideal for laboratory use. The glass is resistant to many harsh chemicals and is easily cleaned. The glass body also allows for a fast transfer of heat to the internal reference electrolyte. The mV generated by the reference cell is temperature dependent. The faster the electrode reaches equilibrium, the steadier the reference potential.

Specifications
