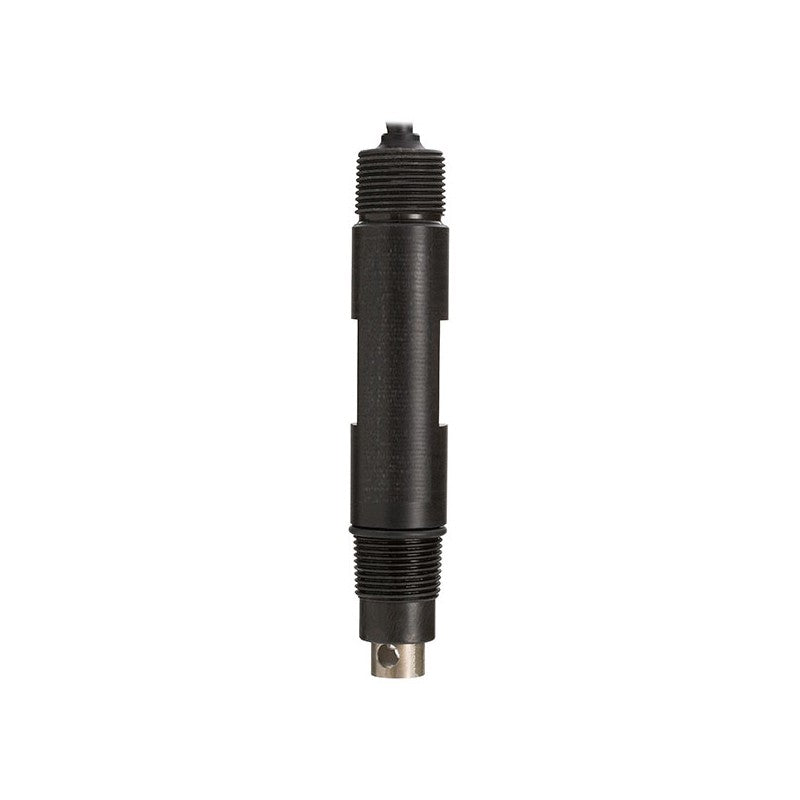

Hanna Instruments HI-1006-3205 pH electrode with PTFE junction. High temperature glass bulb
pH electrode with PTFE junction. High temperature glass bulb, BNC, Pt100, 5M cable
Hanna presents a series of combination pH electrodes incorporating over 20 years of electrode manufacturing experience.
The most advanced feature of this series is the electrode shape with a flat tip, virtually eliminating deposits that can foul the electrode, significantly reducing necessary maintenance. This characteristic makes flat tip electrodes ideal for continuous in-line monitoring and for solutions containing aggressive chemicals.
- Self-cleaning flat tip sensor for significantly reduced maintenance
- Provided with an internal matching pin that can avoid typical problems caused by grounding loop current
- 3/4” NPT external thread on both ends for easy installation
Select the flat tipped electrode that best fits your process requirements by choosing from the following technical characteristics listed in the specification table.
Specifications
| HI-1006-4005 | |
|---|---|
| Cable Length | 5m |
| Connection | BNC |
| Internal Temperature Sensor | No |
| Glass Type | Fluoride Resistant (HF) |
| Junction | PTFE |
| HI-1006-2405 | |
| Cable | 5m |
| Connection | BNC |
| Internal Temperature Sensor | Pt1000 |
| Glass type | General Purpose (GP) |
| Junction | PTFE |
| HI-1006-3005 | |
| Cable | 5m |
| Connection | BNC |
| Internal Temperature Sensor | No |
| Glass Type | High Temperature (HT) |
| Junction | PTFE |
| HI-1006-3007 | |
| Cable | 7m |
| Connection | BNC |
| Internal Temperature Sensor | No |
| Glass Type | High Temperature (HT) |
| Junction | PTFE |
| HI-1006-3205 | |
| Cable | 5m |
| Connection | BNC |
| Internal Temperature Sensor | Pt100 |
| Glass Type | High Temperature (HT) |
| Junction | PTFE |
| HI-1006-2005 | |
| Cable | 5m |
| Connection | BNC |
| Internal Temperature Sensor | No |
| Glass Type | General purpose (GP) |
| Junction | PTFE |
| HI-1006-1005 | |
| Cable | 5m |
| Connection | BNC |
| Internal Temperature Sensor | No |
| Glass Type | Low Temperature (LT) |
| Junction | PTFE |
| HI-1006-3005 | |
| Cable | 5m |
| Connection | BNC |
| Internal Temperature Sensor | No |
| Glass Type | High Temperature (HT) |
| Junction | Ceramic |
| HI-1006-1007 | |
| Cable | 7m |
| Connection | BNC |
| Internal Temperature Sensor | No |
| Glass Type | Low Temperature (LT) |
| Junction | PTFE |
| HI-1006-2010 | |
| Cable | 10m |
| Connection | BNC |
| Internal Temperature Sensor | No |
| Glass Type | General Purpose (GP) |
| Junction | PTFE |
| HI-1006-2015 | |
| Cable | 15m |
| Connection | BNC |
| Internal Temperature Sensor | No |
| Glass Type | General Purpose (GP) |
| Junction | PTFE |
| HI-1006-3010 | |
| Cable | 10m |
| Connection | BNC |
| Internal Temperature Sensor | No |
| Glass Type | High Temperature (HT) |
| Junction | PTFE |
| HI-1006-2210 | |
| Cable | 10m |
| Connection | BNC |
| Internal Temperature Sensor | Pt100 |
| Glass Type | General purpose (GP) |
| Junction | PTFE |
| HI-1006-1205 | |
| Cable | 5m |
| Connection | BNC |
| Internal Temperature Sensor | Pt100 |
| Glass Type | Low Temperature (LT) |
| Junction | PTFE |
| HI-1006-2205 | |
| Cable | 5m |
| Connection | BNC |
| Internal Temperature Sensor | Pt100 |
| Glass Type | General Purpose (GP) |
| Junction | PTFE |
| HI-1006-2305 | |
| Cable | 5m |
| Connection | Direct/colour-coded wires |
| Internal Temperature Sensor | Pt100 |
| Glass Type | General Purpose (GP) |
| Junction | PTFE |
| HI-1006-2505 | |
| Cable | 5m |
| Connection | Direct/colour-coded wires |
| Internal Temperature Sensor | Pt1000 |
| Glass Type | General Purpose (GP) |
| Junction | PTFE |
| HI-1006-4205 | |
| Cable | 5m |
| Connection | BNC |
| Internal Temperature Sensor | Pt100 |
| Glass Type | Fluoride Resistant (HF) |
| Junction | PTFE |
| HI-1006-2215 | |
| Cable | 15m |
| Connection | BNC |
| Internal Temperature Sensor | Pt100 |
| Glass Type | General Purpose (GP) |
| Junction | PTFE |
| HI-1006-3715 | |
| Cable | 15m |
| Connection | Direct/colour-coded wires |
| Internal Temperature Sensor | Pt100 |
| Glass Type | High Temperature (HT) |
| Junction | PTFE |
