Portable Metalyser Deluxe HM2000 Trace2O

Trace2OSKU: WT15-602
filler

Price:
Sale price£6,372.45

Shipping calculated at checkout

Stock:
Re-stocking soon, contact us to confirm date

Description

An enhanced portable heavy metals analysis system, with a combination of electrochemical and photometric instruments for improved ranges and additional parameters.


The Metalyser® offers easy field detection of cadmium, lead, zinc, mercury and arsenic, as well as low-range copper and manganese.

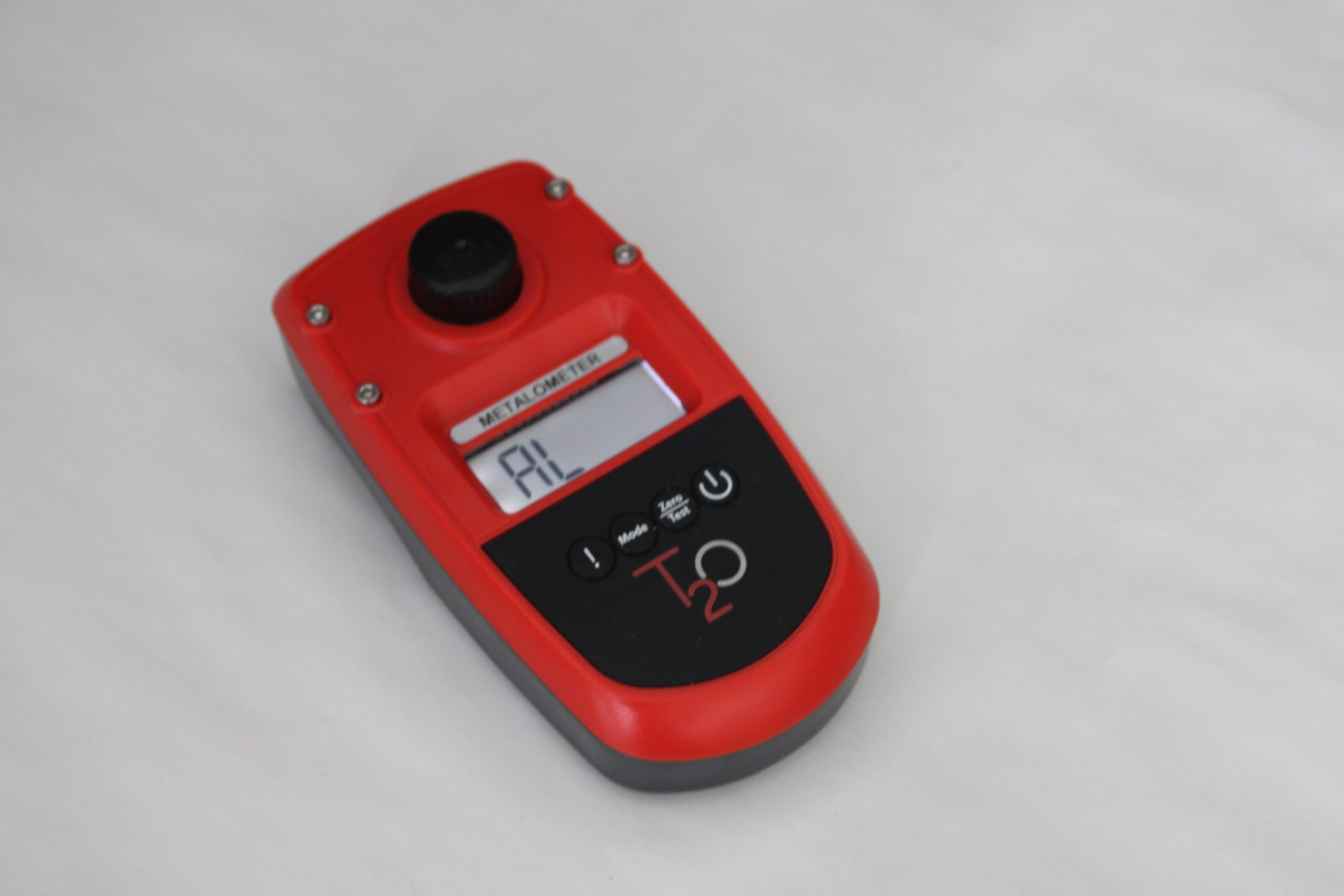

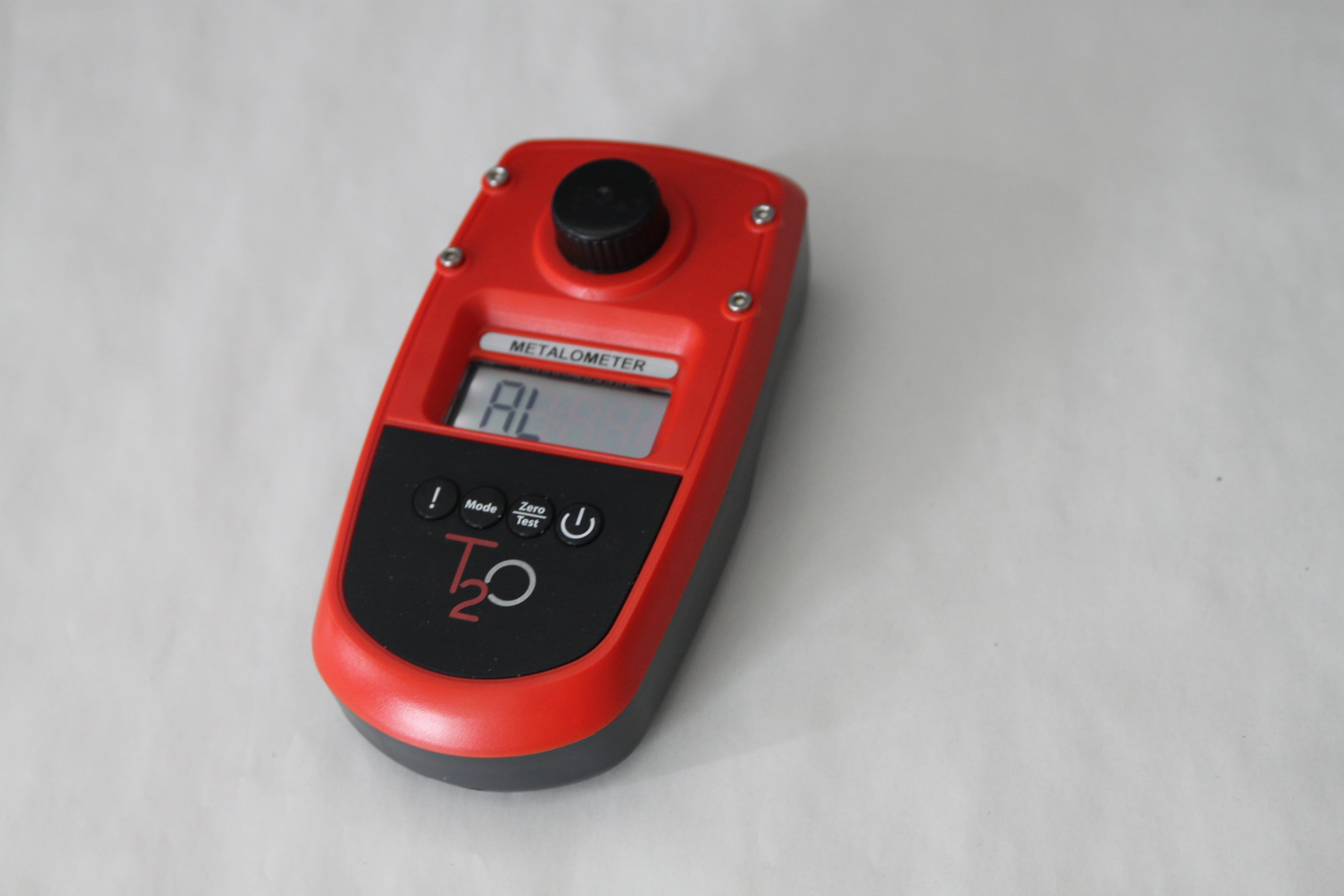

The Metalometer offers high-range copper and manganese, whilst adding aluminium, boron, iron, chromium (VI) and nickel.


Dual technologies offer a flexible solution for heavy metal screening applications.



hm200


Features & benefits of HM2000





















Feature Benefit
Combination of two instruments, offering complementary techniques A wider range of parameters available within a single kit
High-range testing capability with Metalometer instrument Enhanced testing capability, reducing need for on-site dilution for faster results
Fast, accurate results without PC An ideal tool for rapid, effective field screening or process validation


Limits of Detection

























































































Parameter Lower Limit of Detection (ppb) WHO Guideline Value (ppb)
Aluminium Al 10 N/A
Arsenic (III) As (III) 5 <10
Arsenic (Total) As (Total) 10 <10
Boron B 100 <2400
Cadmium Cd 3 <3
Chromium Cr (VI) 20 <50
Copper Cu 5 <2000
Iron Fe 20 N/A
Lead Pb 5 <10
Manganese Mn 5 <100
Mercury Hg 5 <6
Nickel Ni 100 <70
Zinc Zn 5 <4000


Technical Specifications
Operation:
Analytical principles: Anodic & Cathodic stripping voltammetry; fixed wavelength visible absorption Parameters measured: Aluminium, Arsenic, Boron, Cadmium, Chromium (VI), Copper, Iron, Lead, Manganese, Mercury, Nickel & Zinc


Operating Temperature: Metalyser -20°C to +70°C; Metalometer +5°C to +40°C


Data:
Results obtained in minutes


Metalyser internal memory: 1000 data sets with facility to enter sample number, time and date, transfer via USB to PC


Metalometer internal memory: 16 data sets, time and date stamp, sample number, transfer via IR to PC


User Interface:
Metalyser: LCD full graphics backlit display: 128 x 128 pixels
Joystick cursor control, menu driven software


Metalometer: 4 digit backlit LCD, 4 button rubber keypad


Power:Metalyser: Rechargeable battery providing in excess of 50 tests per charge. Alternative power supply via mains adaptor or vehicle cigarette lighter


Metalometer: 4x user replaceable AAA cells – alkaline


Approvals:
Metalyser: Waterproof to IP67, CE conformity
Metalometer: Waterproof to IP68, CE conformity


Kit:
Dimensions: Case 1 487mm (L) x 386mm (W) x 229mm (D); net weight: 9Kg
Case 2 411mm (L) x 322mm (W) x 168mm (D); net weight: 4.5kg
