Lovibond TR 500 8mm aperture Sphere Geometry Reflectance Meter

LovibondSKU: 403040

Sale price£3,832.50

Shipping calculated at checkout

Re-stocking soon, contact us to confirm date


Lovibond TR 500 8mm aperture Sphere Geometry Reflectance Meter

  • Intuitive On-board Icon-based Software
  • Easy To Follow On-board Instructions
  • Free OnShade PC-based Software for Graphs and Statistical Process Control
  • Ergonomic Design for Prolonged Use

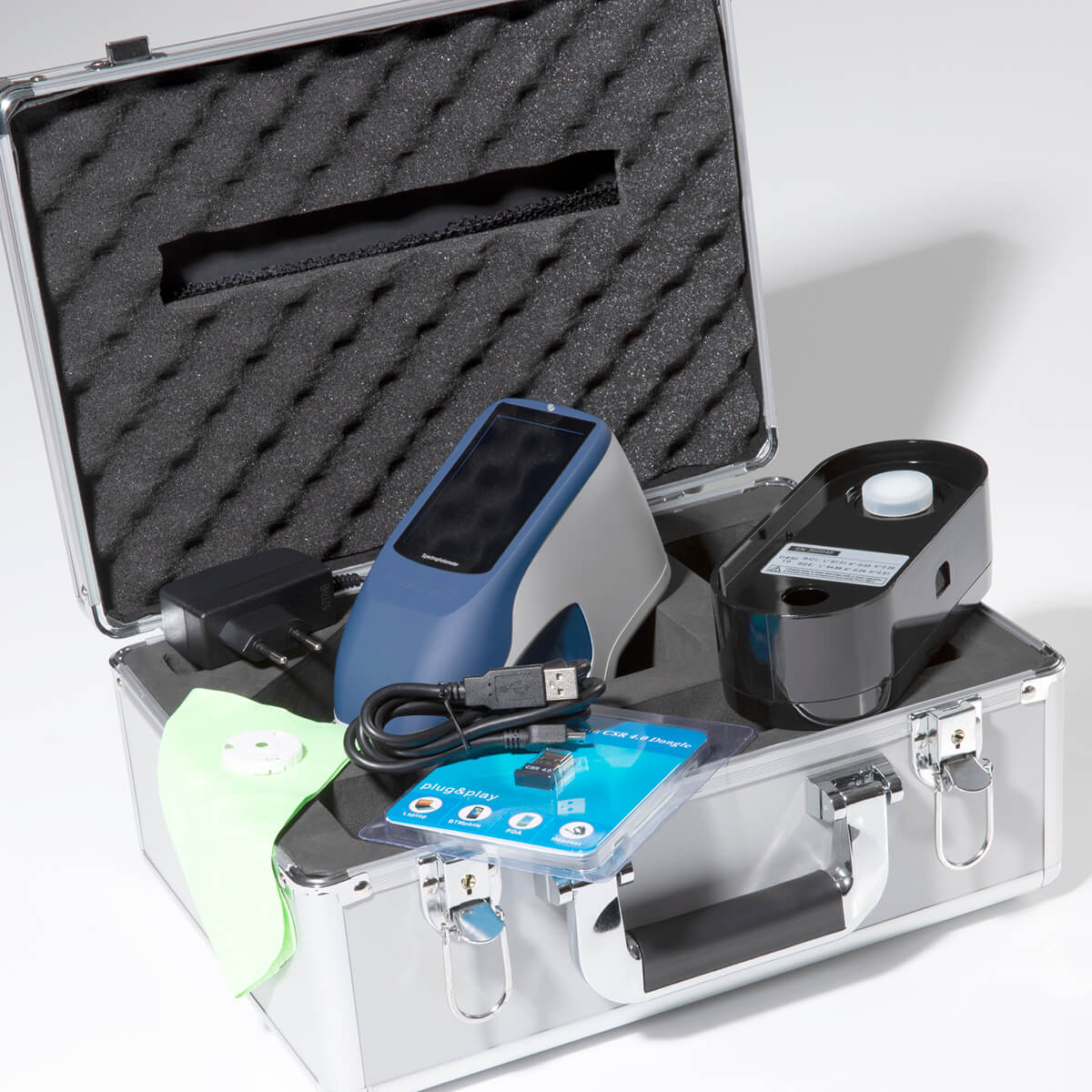

Delivery Content
  • TR 500 Handheld, Sphere Spectrophotometer
  • OnShade PC Software
  • White and Black Calibration Board (white tile and black port)
  • Dust Cover
  • USB Cable
  • External DC Power Supply
  • USB Stick with User Manuals in English, French, German, Spanish, Portuguese and Chinese
  • Sturdy Carrying Case

    Optional Accessory
  • Micro printer (to be purchased separately)

An entry level yet ergonomic and flexible reflectance spectrophotometer with customised apertures of 8mm/4mm/1 x 3mm. Touch screen technology with intuitive icons to enable user-specific settings and guide through the measurement process. An on-board camera-based locator and black and white calibration plates ensure accurate measurements and results every time. Multi language support for international use

Sku: 403040

Lovibond TR 500 8mm aperture Sphere Geometry Reflectance Meter

Techincal Data

Colour Type: Opaque

Light Source: Combined LED Light

Optical Geometry: Reflect: di: 8°, de: 8° (diffused illumination, 8 degree viewing angle)

Integrating Sphere Size: 48 mm

Spectrophotometric Mode: Concave Grating

Sensor: 256 image Element Double Array CMOS Image Sensor

Display: 3.5 inch TFT colour LCD, Capacitive Touch Screen

Interfaces: USB, Bluetooth 4.0

Spectral Interval: 10 nm

External Storage: 2000 Standards : 20000 Samples

Measurement Mode: Single Measurement, Average Measurement

Power Supply: Li-ion Battery

Battery Life Time: 5000 measurements with 8 hours

Location Method: Camera View Finder Locating

Measured Reflectance Range: 0 - 200 %

Measurement Time: 2.6 s

Measuring Aperture: Customized Aperture: 8mm/4mm & 1x3mm

Specular Component: SCI & SCE

Colour Difference Formular: ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc (2:1), ΔE*cmc (1:1), ΔE*00v, ΔE (Hunter)

Other Colorimetric Index: WI (ASTM E313, CIE/ISO, AATCC, Hunter)

YI (ASTM D1925, ASTM 313, TI (ASTM E313, CIE/ISO)

Metamerism Index MI, Staining Fastness, Colour Fastness, Colour Strength, Opacity

Displayed Data: Spectrogram/Values, Samples Chromaticity Values,

Colour Difference: Values/Graph, PASS/FAIL Result, Colour Offset

Inter Instrument Agreement: MAV/SCI: ΔE* ≤0.2

Bandwidth: 10 nm

Repeatability: MAV/SCI: ΔE* ≤0.05

Illuminants :

CIE Illuminant D65

CIE Illuminant A

CIE Illuminant C

CIE Illuminant D50

CIE Illuminant D55

CIE Illuminant D75

CIE Illuminant F1

CIE Illuminant F2

CIE Illuminant F3

CIE Illuminant F4

CIE Illuminant F5

CIE Illuminant F6

CIE Illuminant F7

CIE Illuminant F8

CIE Illuminant F9

CIE Illuminant F10

CIE Illuminant F11

CIE Illuminant F12

Portability: Portable

Illuminant Life Span: 5 years, more than 3 million measurements

Observer: 2° / 10°

Environmental Conditions: 0 - 40 °C, 0 - 85° Relative Humidity (non condensing), Altitude < 2000 m

Stock Conditions: -20 - 50 °C, 0 - 85° Relative Humidity (non condensing)

Languages User Interface: English, German, French, Spanish, Portuguese, Chinese

Dimensions: 184 x 105 x 77 mm

Weight: 600 g

Sku: 403040
