Lovibond SD 315 Oxi (Set 1)
Waterproof Hand-held Meters for the determination of Dissolved oxygen (O2)/O2 -Concentration/O2 -Saturation Temperature
Highlights
- Rugged, water resistant (IP 67)
- PC interface (USB / serial or analog)
- Automatic buffer detection (SD 300 pH)
- Data logger and alarm function (min./max.)
-
No polarization
The well-known Clark oxygen sensor allows immediate measurement without polarization time. -
Versatile
The SD 315 Oxi is aimed at industry, laboratories and urban facilities, such as sewage treatment or water works. -
Data management
A data logger and the corresponding logger software ensure simplified processing of the data obtained.
To ensure that this works under all visual conditions, the device is delivered with a backlit display. -
housing
The protective armor not only guarantees a secure grip but also protection against fall damage.
The stand attached to the back of the housing can also be used as a hanger or belt clip. -
Alarm
The integrated alarm alerts you if the measured value deviates once from the predefined values. -
Auto-Hold
The auto-hold function makes it easy to read the measured values.
Technical Data:
| Display | Backlit LCD |
| Data Logger | Manual Logger: 1000 data sets (single value by keystroke). Auto. Logger: 10000 data sets (cyclic, time interval: 1 - 3600 s) |
| Power Supply | 2 AAA batteries Micro-USB |
| Auto – OFF | Yes |
| Portability | Portable |
| Temperature Compensation | yes |
| Compliance | CE |
| Protection Class | IP 67 |
| Languages User Interface | German, English, French, Spanish, Italian, Portuguese, Dutch, Chinese |
| Dimensions | 98 x 37 x 164 mm |
| Weight | 287 g |
Additional Accessories Available:
| Testparameter | Measuring Range | Method No. | |
|---|---|---|---|
| Oxygen | 0 - 70 mg/l O2 | ||
| Oxygen | 0 - 600 % | ||
| Temperature | 0 - 50 ° C |

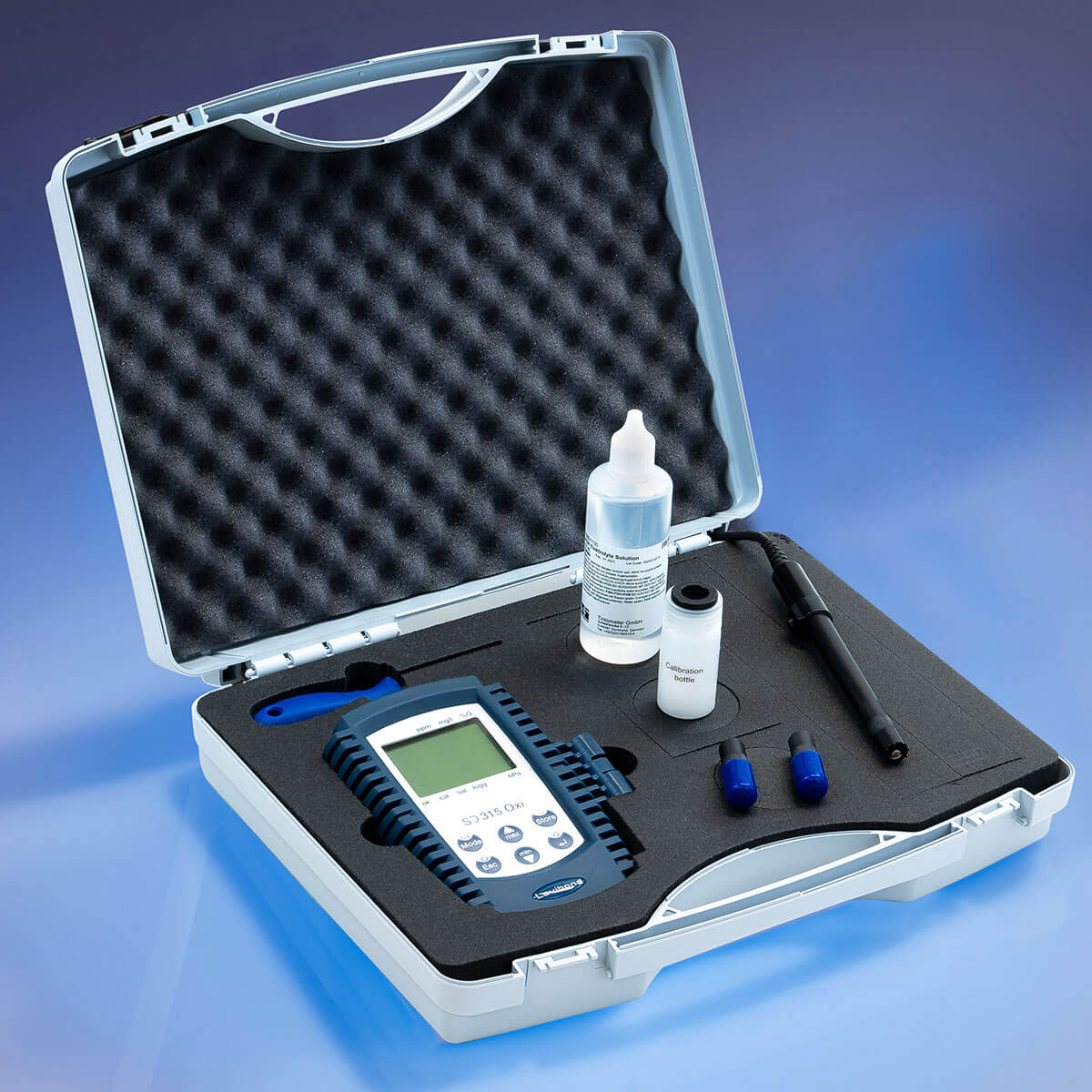

Delivery Content:
- Instrument in protective armouring including electrode holder
- Batteries
- Oxygen sensor with 2 m cable
- Electrolyte solution (KOH) 100 ml
- Calibration bottle with sponge
- 2 pcs. spare membrane heads
- Instruction manual
- Warranty information
Title |
Part Number |
| Oxygen sensor for SD 310 / SD 315 Oxi with 2 m cable, Platinum cathode / Lead anode | 19805050 |
| Oxygen sensor for SD 310 / SD 315 Oxi with 10 m cable, Platinum cathode / Lead anode | 19805051 |
| Oxygen sensor for SD 310 / SD 315 Oxi with 30 m cable, Platinum cathode / Lead anode | 19805052 |
| Service Set for Oxygen sensor SD 300 / SD 315 Oxi consisting of 3 pcs. Spare Membrane Heads and 100 ml KOH (1.18 mol/l) Elektrolytle solution | 724670 |
| KOH 100, Spare Electrolyte, 100 ml for SD 310 / SD 315 Oxi | 19801130 |
| Protection cap for Oxygen sensor SD 310 / SD 315 Oxi for depth measurement (PVC) | 19805055 |
| Protection cap for Oxygen sensor SD 310 / SD 315 Oxi for depth measurement (brass) | 19805056 |
| Bottle for storage and calibration | 19805057 |
| USB cable, for connection to a computer for SD 300 / SD 305 | 724620 |
| GSOFT 3050 Windows-Software with logger for SD 300 / SD 305 series | 724625 |
| Case incl. foam for SD 305 series | 725070 |
