Test / Range
Chlorine 0-6.0 mg/l
Chlorine -10mg/l (Additional tablets required)
pH Value 6.5-8.4
Alkalinity Total 5-200 mg/l
Calcium Hardness 0-500 mg/l
Bromine 0.05-13 mg/l
Cyanuric Acid 2-160 mg/l
The MD 100 6 in1 Photometers are portable handheld instruments. Simple button layout and robust waterproof design make them easy to use and ideal for testing pool water. With a large backlit display they are also suitable for use in the Plant Room.
The units supply accurate, reproduceable results using high quality interference filters with long-life LEDs as a light source. Tests are conducted using Lovibond® tablet reagents which give long-term stability and a guaranteed minimum 5 or 10 year shelf life. Liquid reagents can also be used.
Test results are automatically stored with time and date for later review, and can also be downloaded to a PC using an additional Infra Red interface.

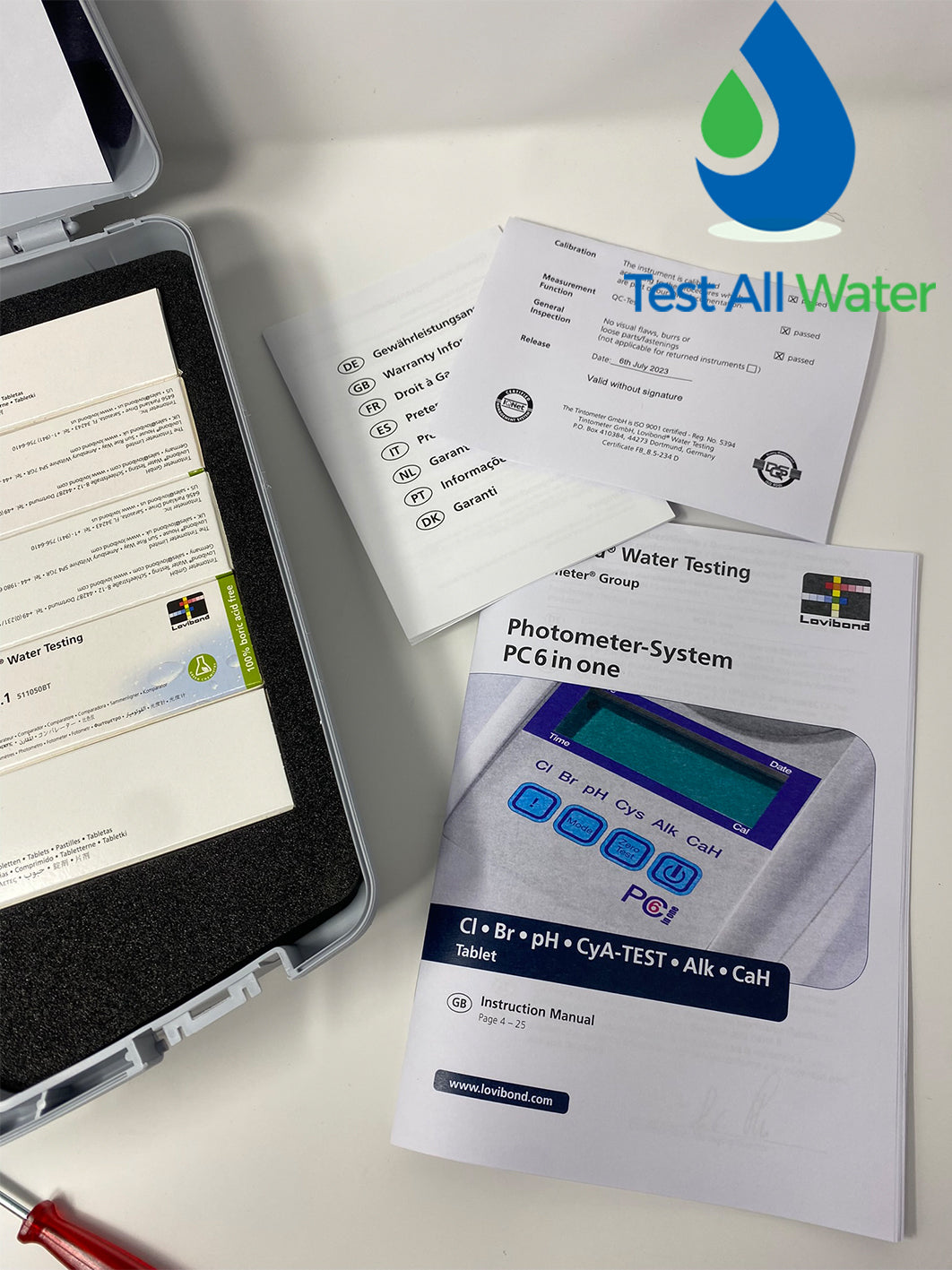

- Instrument in carrying case
- 4 Micro batteries (AAA)
- 3 Round vials (Glass) with lids
- Tablets reagents
- Crushing / Stirring Rod
- Guarantee sheet
- Certificate (COC)
- Instruction manual
Test / Range
- Chlorine 0-6.0 mg/l
- Chlorine --10mg/l (Additional tablets required)
- pH Value 6.5-8.4
- Alkalinity Total 5-200 mg/l
- Calcium Hardness 0-500 mg/l
- Bromine 0.05-13 mg/l
- Cyanuric Acid 2-160 mg/l
If you wish to purchase further products for your kit, the replacement codes are as follows:
Stock code Description Quantity
51 10 50BT DPD No 1 Free Chlorine Tablets Box of 100
511051BT DPD No 1 Free Chlorine Tablets Box of 250
511080BT DPD No 3 Total Chlorine Tablets Box of 100
511081BT DPD No 3 Total Chlorine Tablets Box of 250
511770BT Phenol Red Photometer Tablets Box of 100
511771BT Phenol Red Photometer Tablets Box of 250
511370BT Cyanuric Acid Tablets Box of 100
511371BT Cyanuric Acid Tablets Box of 250
517761BT Calcio-H Tablets No 1/2 Boxes of 100
517762BT Calcio-H Tablets No 1/2 Boxes 0f 250
513210BT Alka-M-Photometer Box of 100
513211BT Alka-M-Photometer Box of 250
197629 Cylindrical Cells with Lid Pack of 5
380230 Cleaning Brush 1
364120-1 Single Plastic Stirring Rod 1
364120 Plastic Stirring Rod Pack of 10
Scroll Memory (SM)
To avoid unnecessary scrolling for the required test method, the instrument memorises the last method used before switching off. When the instrument is switched on again, the last used test method is selected automatically.
Beside the "Certificate of Compliance" which is supplied with the MD 100, calibration certificates are available at cost on request. Individually supplied per instrument and per method, The Calibration Certificate must be ordered on initial purchase of the instrument.
The optional available IRiM (infra-red interface module) uses infra-red technology to transmit test data from the MD 100 to one of 3 interfaces. Data can be downloaded to a PC or directly printed using a USB printer or serial printer connected to the IRiM module.
The unit is supplied complete with data logging software providing easy and rapid transfer of data to the PC. Data can be saved as an Excel sheet or a .txt file.
Zero Setting (OTZ)
Certain instruments have a One Time Zero (OTZ) function, making it unnecessary to zero the instrument between each test. This allows multiple tests to be performed using the same blank/zero sample until a new parameter is selected.
The instrument has a factory calibration, which is related to international standards which are not N.I.S.T traceable. The instrument may be calibrated by the user in a "user calibration mode" with N.I.S.T traceable standards.
(N.I.S.T. = National Institute of Standards and Technology)
Verification Standard Kit
The Verification Standard Kit for the MD 100 is designed to reassure the user about the accuracy and the reliability of the results.
The shelf life of the Verification Standard Kit is two years from the date of production, provided that storage and use are in accordance with the instructions provided.
Verification Standard Kit: SKU 215670
