Lovibond MD100L Photometer Chlorine / pH Liquid OTZ

The Lovibond MD 100 2in1 Pool Photometer is a multi-parameter instrument which allows for fast and easy measurement of pool water quality.

Easily test for Free, Total and Combined Chlorine as well as pH with Lovibond Tablet or Liquid reagents.

Ideal for poolside testing, the MD 100 comes ready to use with all of the reagents and accessories required for testing.

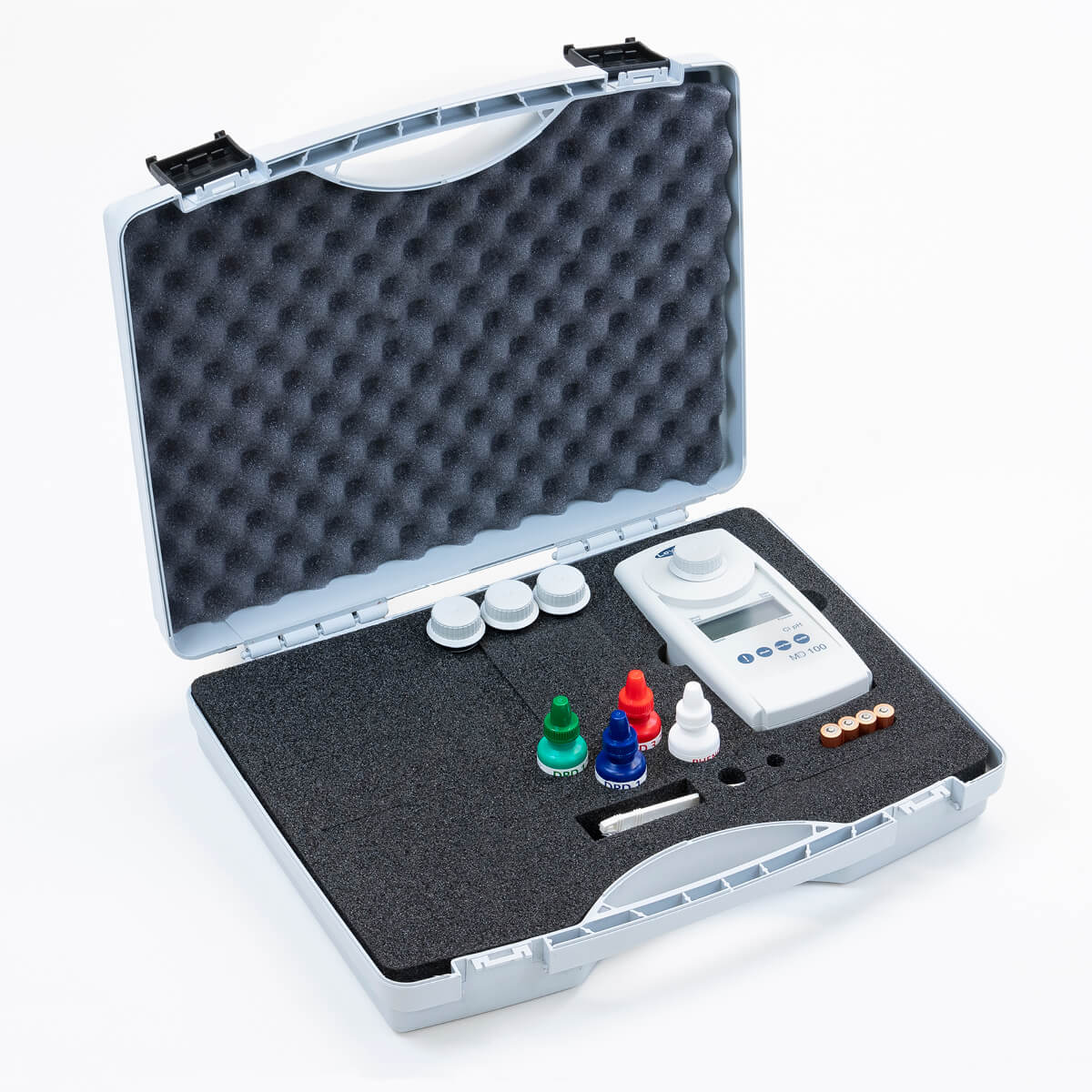

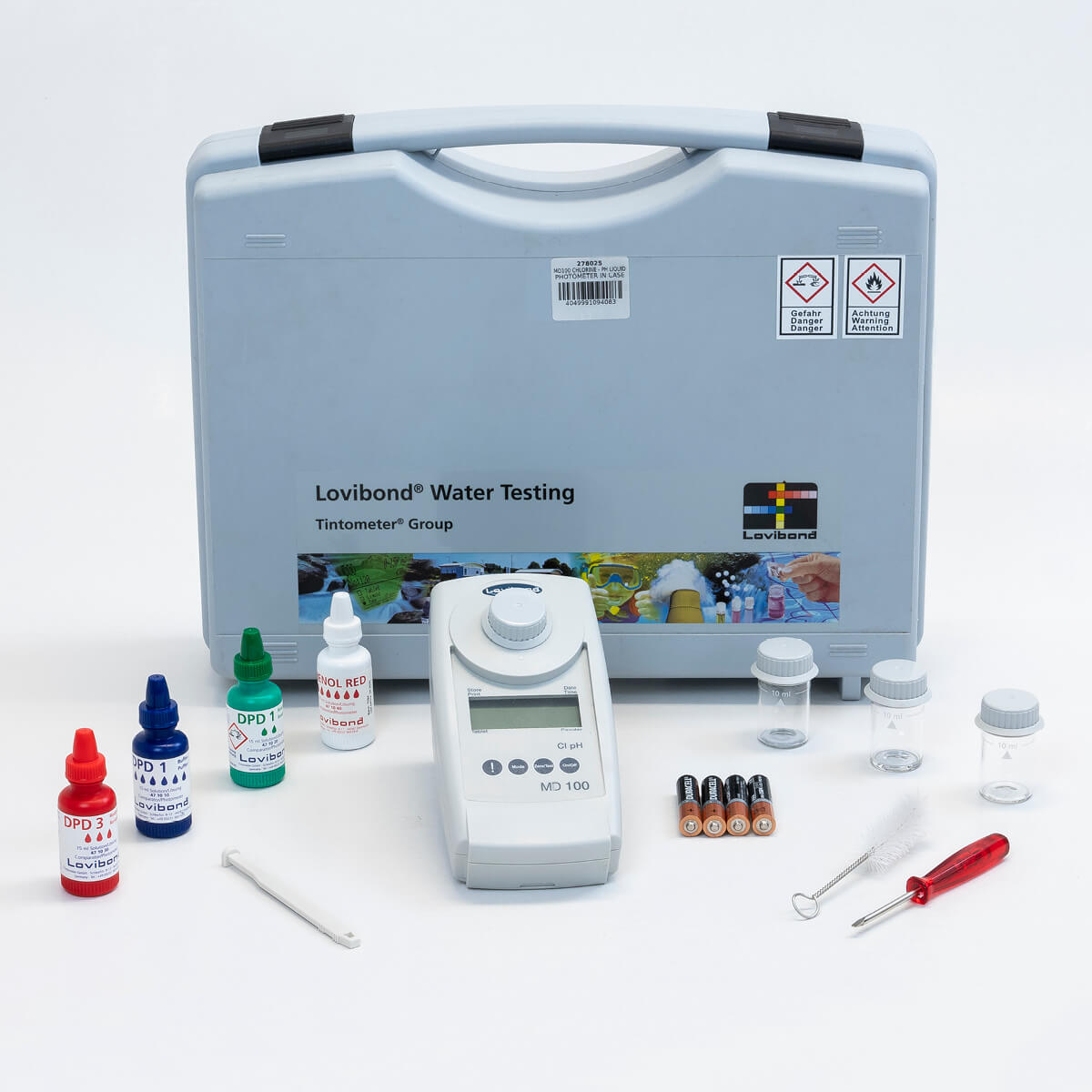

Delivery Content

Instrument in plastic case
DPD 1 Buffer Solution
DPD 1 Reagent Solution
DPD 3 Solution
Phenol Red Soloution
4 micro batteries (AAA)
3 round cuvettes (glass) with lid
Sealing rings
Stirring rod
Brush
Instruction manual
Quick Start Guide
Certificate (COC)
Warranty information

Techincal Data

Optics: LEDs, interference filters (IF) and photo sensor in transparent sample chamber. Depending on the version, up to 3 different interference filters are used. Wavelength specifications of interference filters:
430 nm Δλ = 5 nm
530 nm Δλ = 5 nm
560 nm Δλ = 5 nm
580 nm Δλ = 5 nm
610 nm Δλ = 6 nm
660 nm Δλ = 5 nm
Wavelength: Accuracy ± 1
Photometric Range:-2500 - 2500 mAbs
Photometric Accuracy: 3 % FS (T = 20 °C – 25 °C)
Suitable Vials: Round Cuvettes 24 mm
Display: backlit LCD (on keypress)
Interfaces: Infrared
Operation: Foil keypad
Auto – OFF: Yes
Calibration: factory calibration and user calibration. Reset to factory calibration possible
Internal Storage: internal ring memory for 16 data sets
Power Supply: 4 micro batteries (AAA)
Battery Life Time: approx. 17 hours
Clock: Real Time Clock and Date
Portability: Portable
Environmental Conditions: Temperature: 5 - 40 °C rel. humidity: 30 - 90 % (non condensing)
Protection Class: IP 68
Compliance: CE
Dimensions: 155 x 75 x 35 mm

NOTE:

There has recently been an amendment to the UK Poisons Act 1972 regarding the supply of Explosives precursors which comes into effect from October 1^st 2023 and covers the supply of certain materials.

In order to comply with these regulations we kindly ask that you complete the following actions as quickly as possible in order to avoid disruption to supply.

• Please complete this form, along with a copy of a photographic ID (such as a passport, driving licence, trade ID card, business ID card) for the individual that your company authorises to purchase these materials.
• You will need to understand your legal obligations under the Act, particularly in regard to the reporting of loss, theft or suspicious activity.
• If you are reselling these materials then you may need to obtain and retain the same information from your customers.

Further information can be found at https://www.gov.uk/government/publications/supplying-explosives-precursors/supplying-explosives-precursors-and-poison

Sku:278025
