Lovibond MD100 Photometer Chlorine DUO (P)

The MD 100 colorimeter is a single parameter colorimeter for water quality analysis. This line of rugged, waterproof instruments is lightweight and ideal for field testing or for use in the laboratory.

Chlorine is one of the most popular water quality testing parameters and the MD 100 Chlorine Duo Colorimeter offers a testing solution to fit a wide variety of industries and applications.

Delivery Content

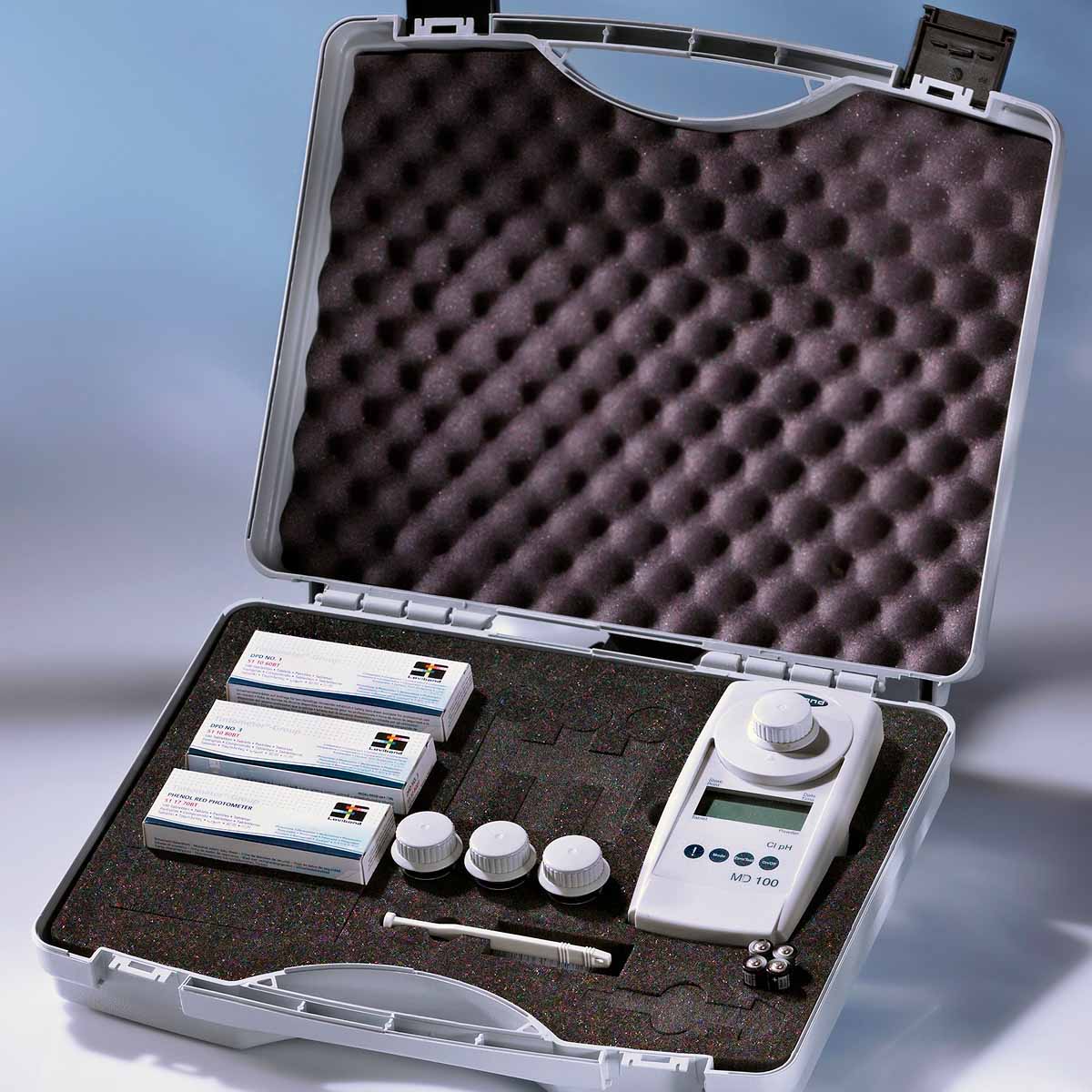

Instrument in plastic case

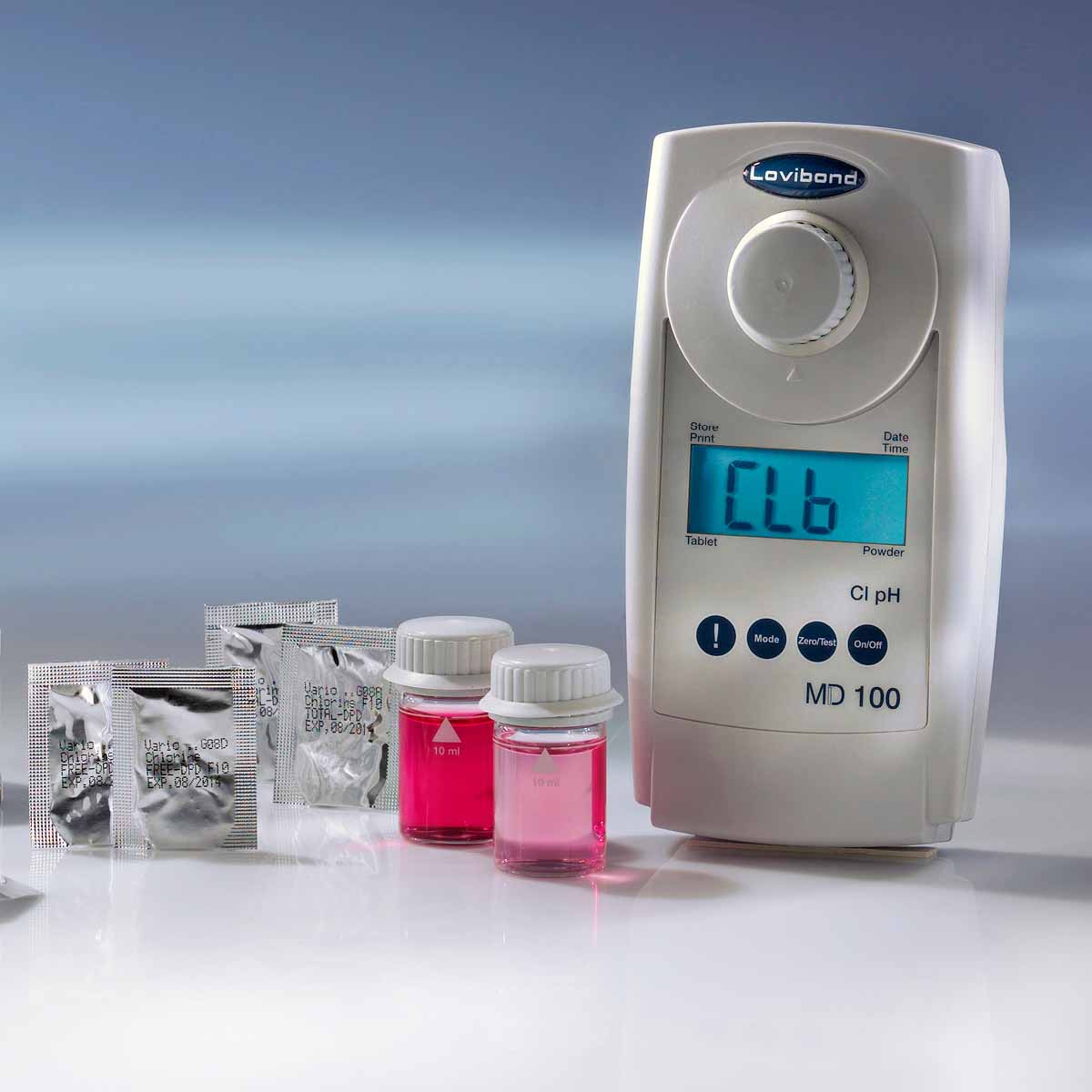

Chlorine Free Powder Packs
Chlorine Total Powder Packs
4 micro batteries (AAA)
3 round cuvettes (glass) with lid
2 cuvettes (plastic) with lid
Sealing rings
Brush
Instruction manual
Quick Start Guide
Certificate (COC)
Warranty information

Range: Chlorine HR PP 0.1 - 8 mg/L Cl2/Chlorine PP 0.02 - 2 mg/L Cl2

Technical Data

Optics: LEDs, interference filters (IF) and photo sensor in transparent sample chamber. Depending on the version, up to 3 different interference filters are used. Wavelength specifications of interference filters:
430 nm Δλ = 5 nm
530 nm Δλ = 5 nm
560 nm Δλ = 5 nm
580 nm Δλ = 5 nm
610 nm Δλ = 6 nm
660 nm Δλ = 5 nm
Wavelength Accuracy: ± 1
Photometric Range: -2500 - 2500 mAbs
Photometric Accuracy: 3 % FS (T = 20 °C – 25 °C)
Suitable Vials: Round Cuvettes 24 mm
Display: backlit LCD (on keypress)

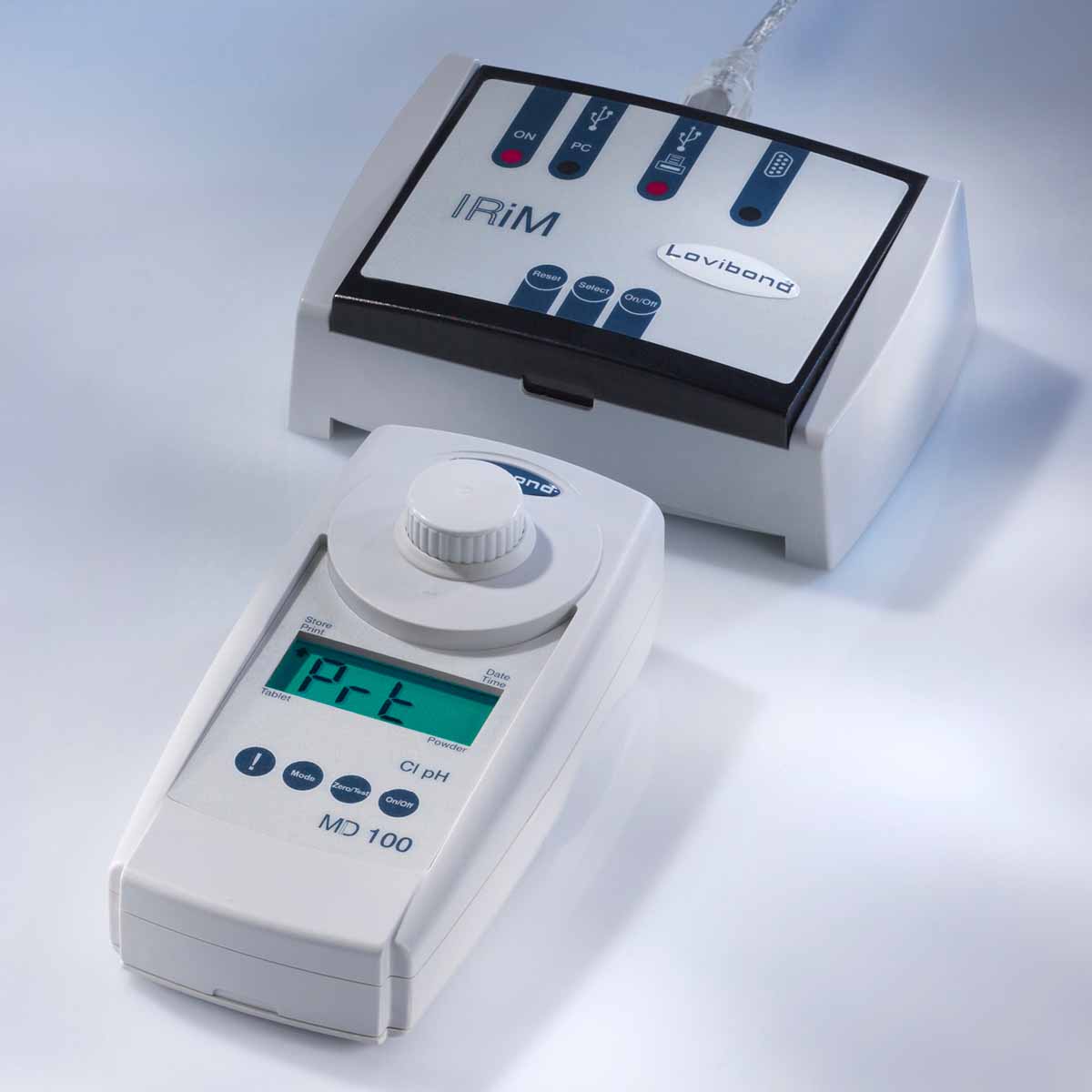

Interfaces: Infrared
Operation: Foil keypad
Auto – OFF: Yes
Calibration: factory calibration and user calibration. Reset to factory calibration possible
Internal Storage: internal ring memory for 16 data sets
Power Supply: 4 micro batteries (AAA)
Battery Life Time: approx. 17 hours
Clock: Real Time Clock and Date
Portability: Portable
Environmental Conditions: Temperature: 5 - 40 °C rel. humidity: 30 - 90 % (non condensing)

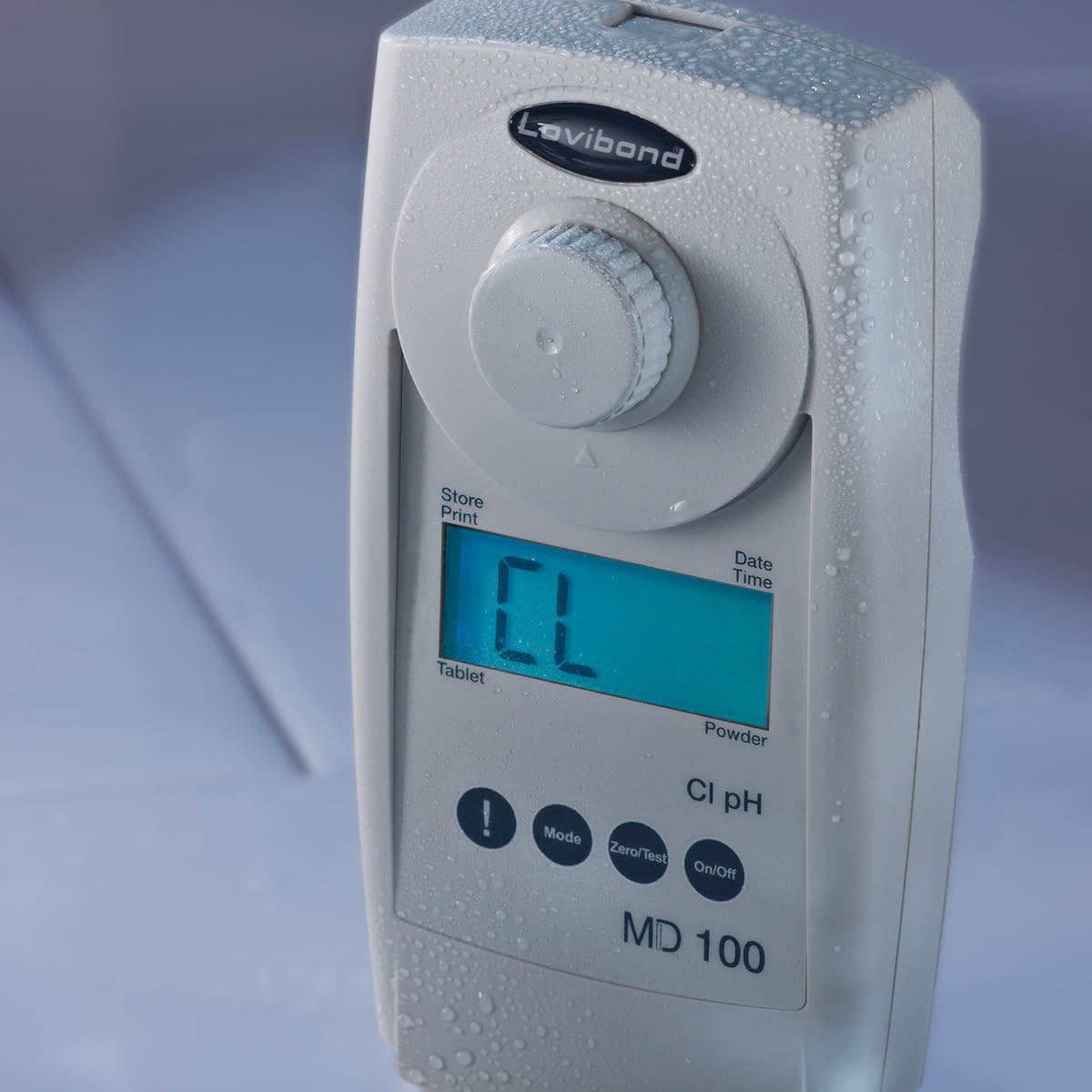

Protection Class: IP 68
Compliance: CE
Dimensions: 155 x 75 x 35 mm

Sku: 276025
